Item NO.:
Part numbers as listProduct Orgin:
ChinaBrand:
SanShineShipping Port:
XIAMEN,CHINAColor:
Black or beige or light yellowProduct name : Wire guide coil winding precise tensioner
Description :

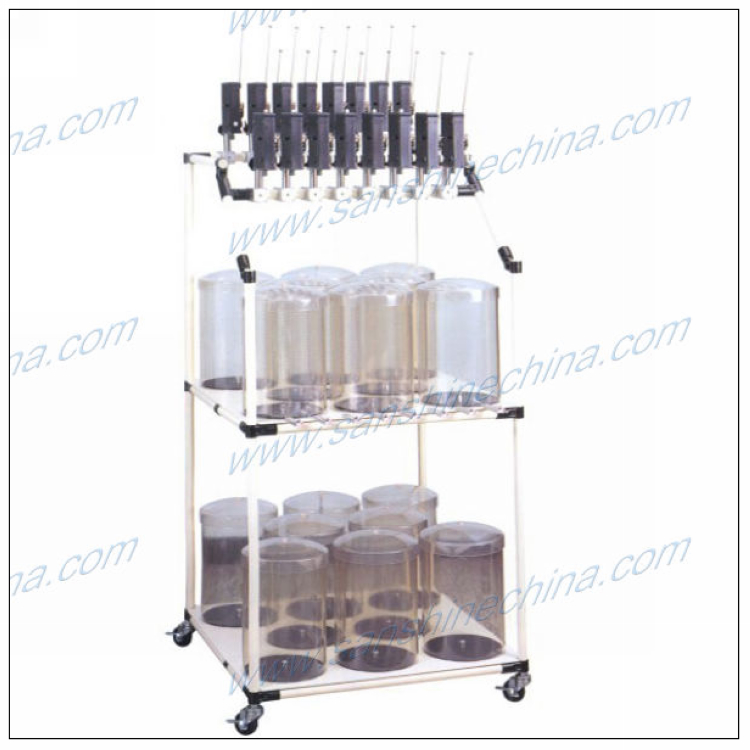

The wire guide coil winding precise tensioner is the key device to control the adjustable tension during the wire be winding. It adopts the tension way of precise adjustable magnetism, mechanical springs and ceramic pulleys. The tensioner fishing bar adopts carbon fibre. This wire guide coil winding precise tensioner is used for the fine wire winding on the winding machines. This wire guide coil winding precise tensioner is called wire guiding tensioner also. The winding coil will be with appropriate fastening, tightness and plump. Coils of winding quality are guaranteed with consistency, and the enamel insulation film be protected in good.
Specification :
Part No.
Suited wire diameter.(mm)
Tension(N)
SS
0.02~0.04
0.024~0.137
S
0.04~0.08
0.088~0.49
M
0.05~0.14
0.196~1.373
L
0.12~0.4
0.686~5.88
LL
0.15~0.5
1.47~9.8
