Three chanels wire coil winding intertun insulation impulse surge tester

The SS300WS-3 SS300WS-5 three chanels wire coil winding intertun insulation impulse surge testers are best suited for the three phase motors.

Item NO.:
SS300WS-3 or SS300WS
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
Gray

contact now User's reviews

Description

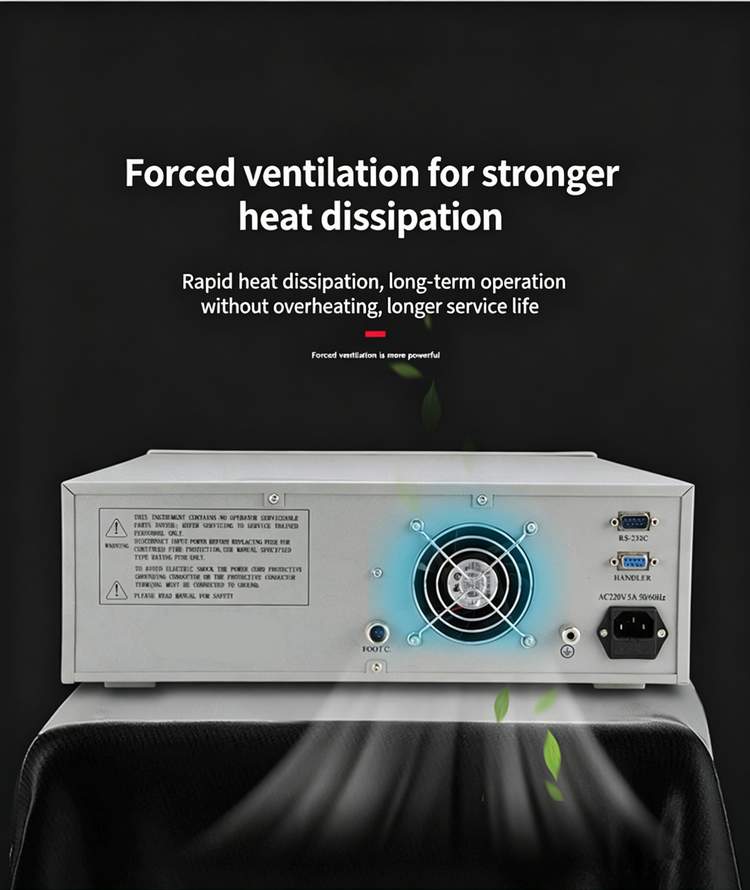

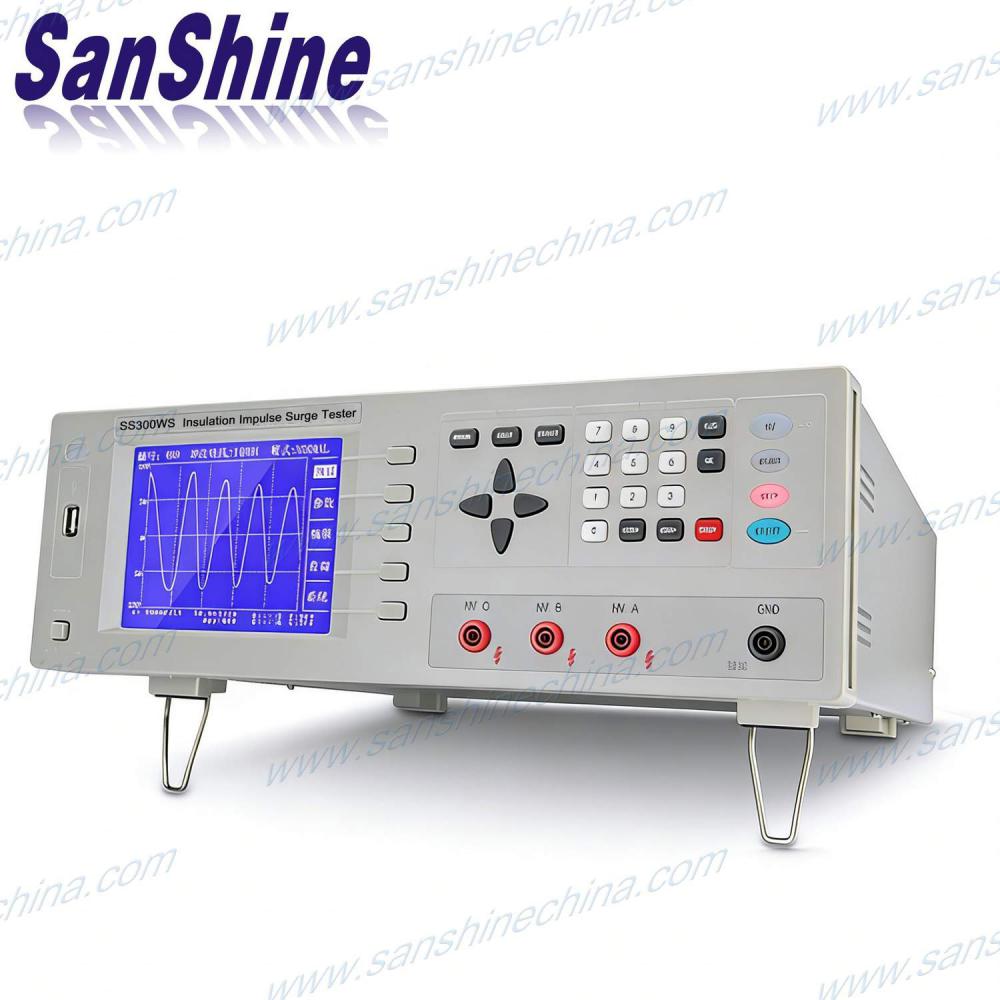

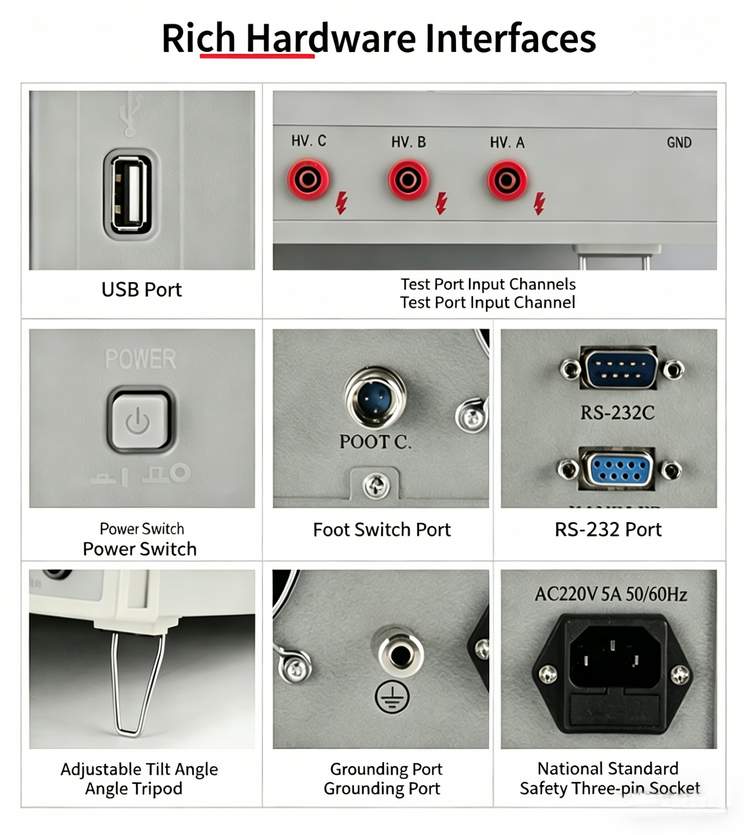

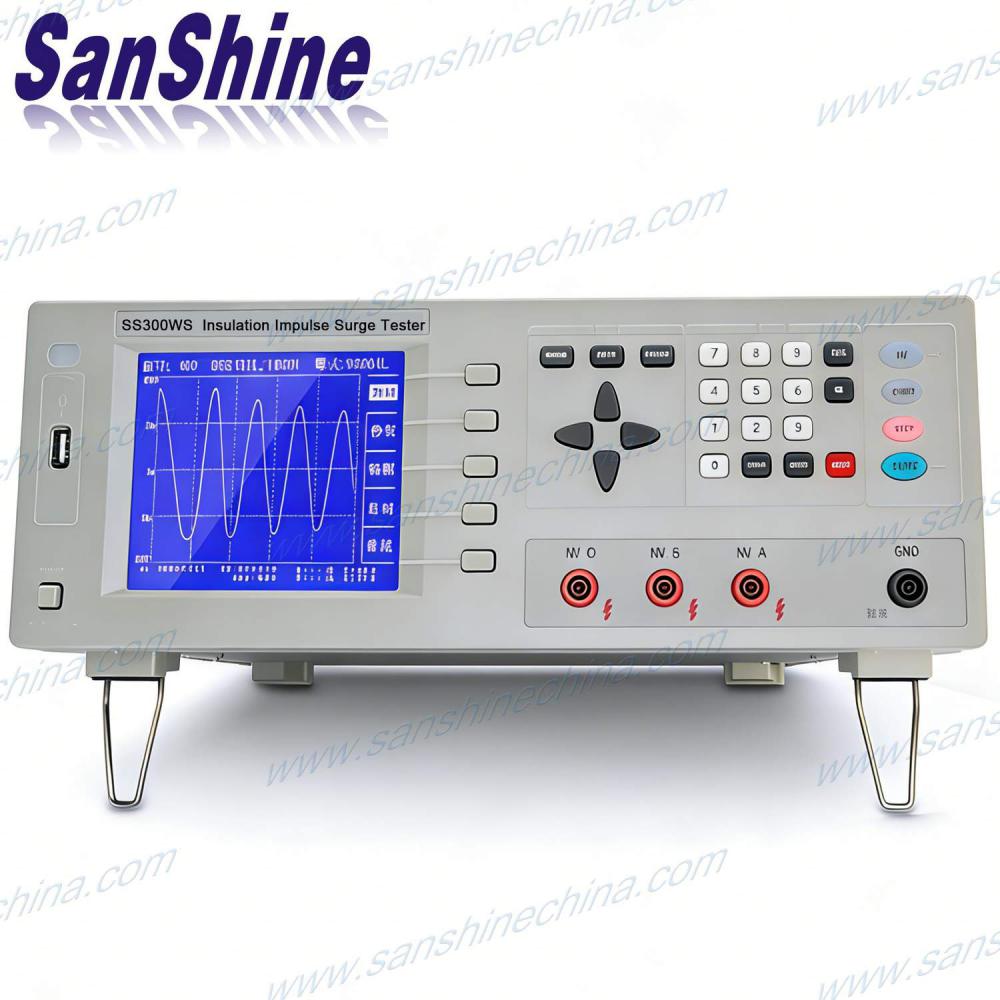

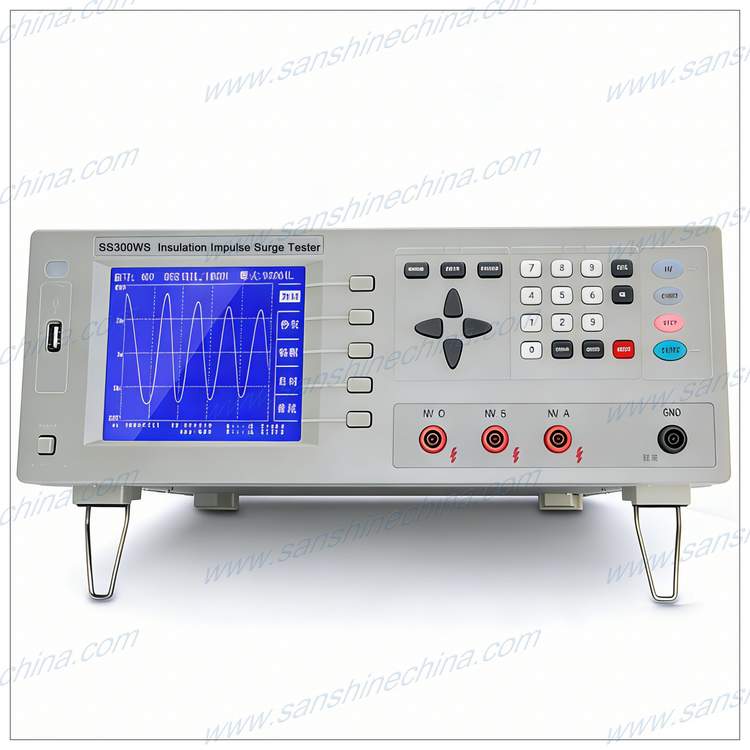

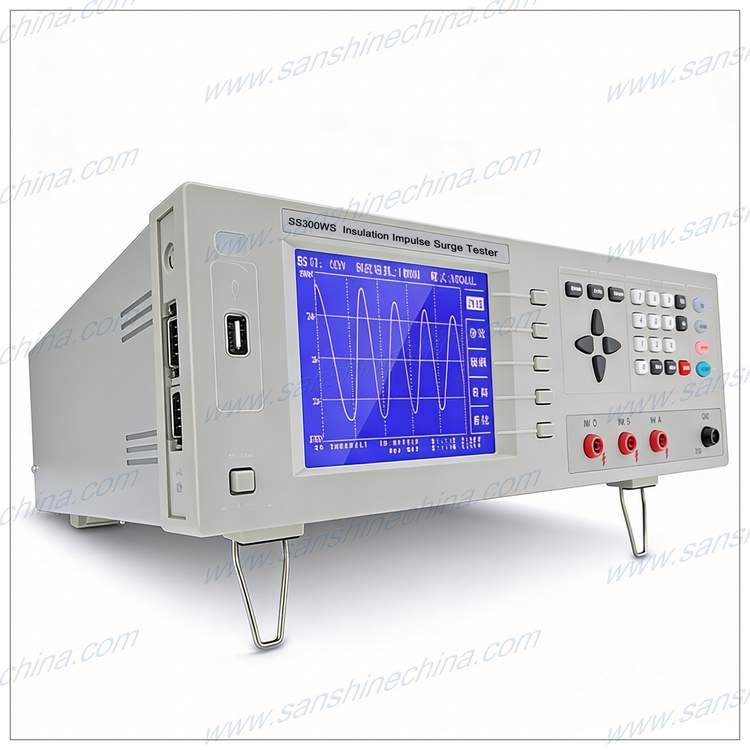

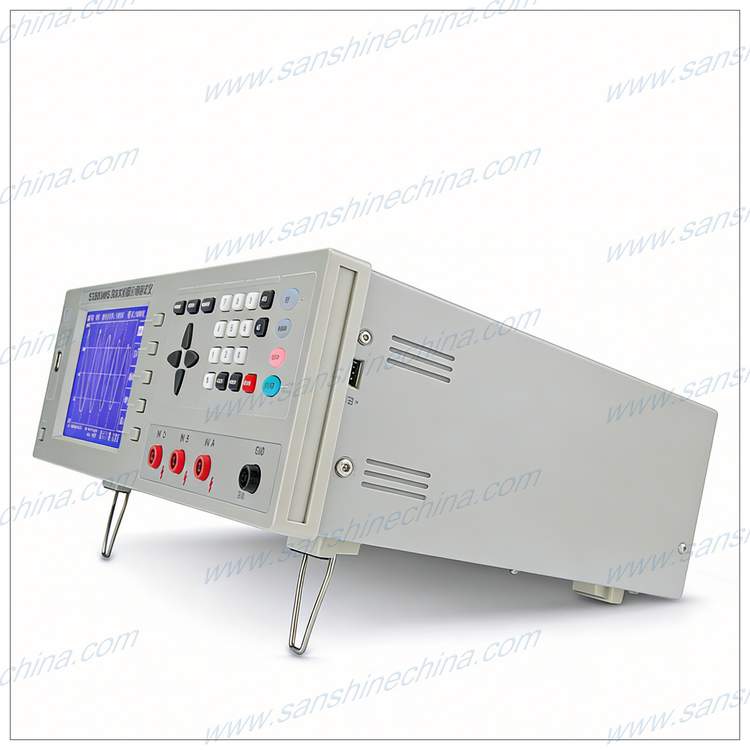

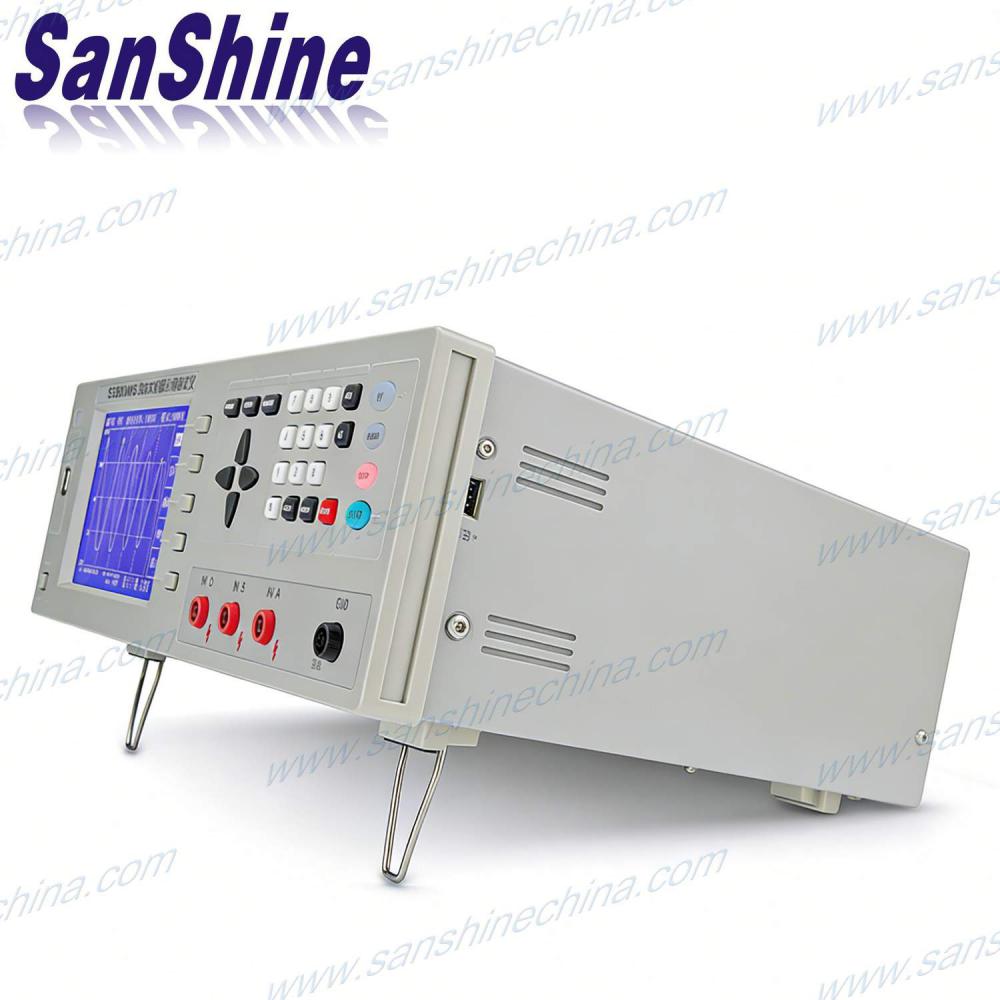

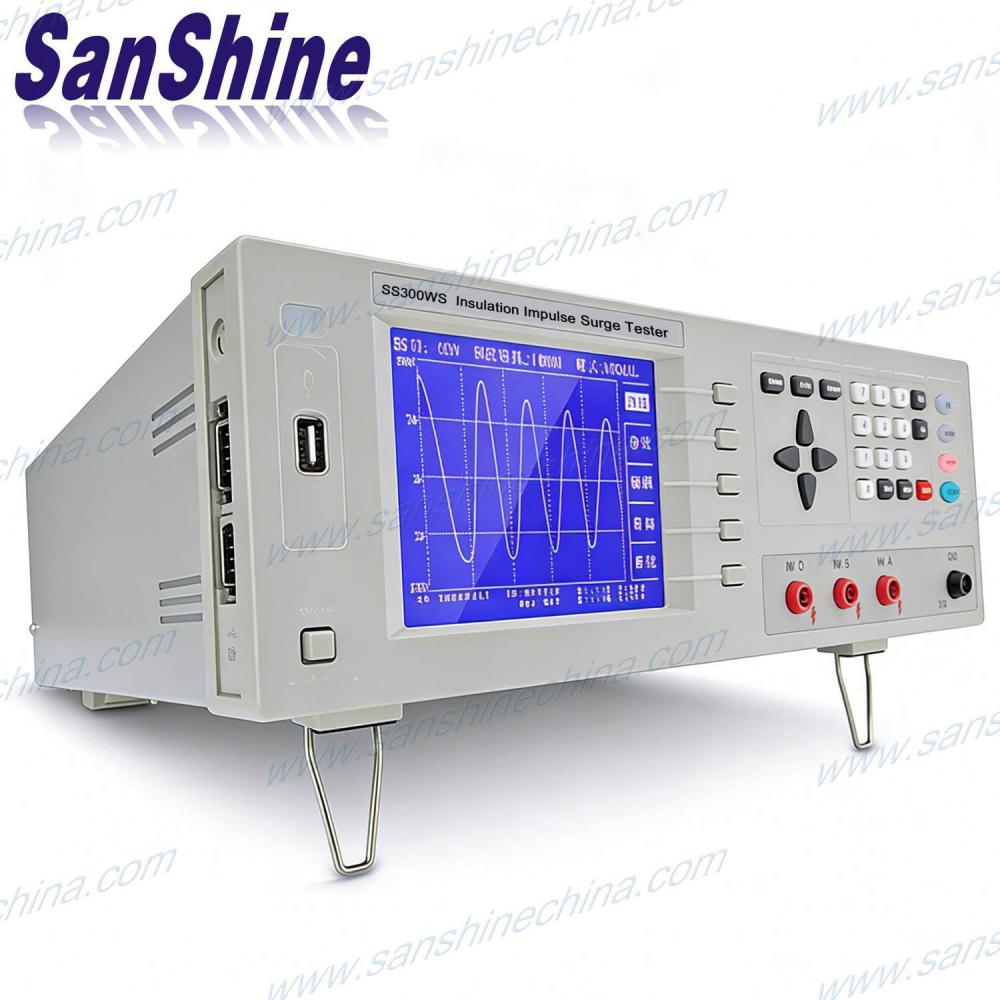

Product name : Three chanels wire coil winding intertun insulation impulse surge tester ( SS300WS-3 or SS300WS-5 )

Description :

The SS300WS-3 or SS300WS-5 three chanels wire coil winding intertun insulation impulse surge testers adopts high stability high-voltage Impulse power supply and high-voltage switchingdevice controlled by thyristor module,which greatly improves the stability and reliability of the product. Built in switching three-chanels high-voltage, the three-phase motor can bemeasured without manual conversion, which greatly improves the test efficiency. The SS300WS-3 or SS300WS-5 three chanels wire coil winding intertun insulation impulse surge testers are best suited for the three phase motors.

Features :

1. Adopts advanced digital signal processing technology and strong anti-interference ability,
2. Four waveform comparison methods are used to quickly determine coil quality.
3. LCD module display, user-friendly interface, simple and easy to learn comparison
results are directly displayed and there are multiple sound alarm methods to choose.
4. Quick judgment of coil insulation performance with a speed of up to 6 times per second.
5. Low inductance pulse test as small as 10uH.
6. Maximum 40MHz sampling frequency.
7. Three phase motor Delta and Star connections, Single pahse motor main and
auxiliary windings, main and auxiliary windings, and main and auxiliary + main and
auxiliary winding connections can be freely set to meet the turn to turn testing
requirements of the entire series of motors.

Specification :

Model	SS300WS-3	SS300WS-5	SS100WS-3	SS100WS-5	SS100WS-10	SS400WS-5	SS100WS-30
Output chanel numbers	3	3	1	1	1	4	1
Output impulse voltage	300V~3000V, 50V/Step	500V~5000V, 100V/Step	300V~3000V, 50V/Step	500V~5000V, 100V/Step	500V~10000V, 100V/Step	500V~5000V, 100V/Step	0 ~ 30KV stepless regulation by adjustable transformer
Impulse engergy	Max. 99 Milli Joule	Max. 275 Milli Joule	Max. 99 Milli Joule	Max. 275 Milli Joule	Max. 2500 Milli Joule	Max. 275 Milli Joule	Max. 22.5 Joule (45 Joule optional )
Inductance range of the testing coil	≥10uH	≥20uH	≥10uH	≥20uH	≥20uH	≥10uH	≥ 10uH
Best suited for what type winding coils	Single / Three phases motor stators, transformers, generators		Inductors, Relay, Current contactor, Current transformer sensor, Valves, Solenoid, alomost all wire wound single winding coils			Single / Three phases motor stators, transformers, generators	Big power single / three phases motor stators, transformers , generators.
Buzzer on	Pass / Fail / Mixing						NO
Trigger	Start key or Foot switch
Testing speed	6 times / second						3 times / second
Testing wave comparing way	Area compare , Area difference compare , corona discharge compare, phase difference compare						comapre testing wave with standard wave
Memory capacity	100 Programs , Extended USB connecting optional						NO
Communication ports	HANDLER , RS232						NO
Working environment	0~40°C ,<90%RH
Power source	Single phase 220V+/-10%, 110V+/-10% by user request						Single phase 220V+/-10% 2KW, 110V+/-10% 2KW by user request
Weight	12Kgs						150Kgs
Sizes (mm )	460400142						6007001600
