Programable automatic thick plastic nylon string rewinding machine

The programable automatic thick plastic nylon string rewinding machine (SS-RW04) is a CNC type programmable wire rewinding machine with high torsion DC winding motor. This machine is the best choice for the thick nylon wire and plastic wire rewinding. This wire rewinder be called high torsion nylon wire rewinding machine and high torsion thick plastic line rewinding machine also.
  • Item NO.:

    SS-RW04
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White and black
contact now
Description

Product name : Programable automatic thick plastic nylon string rewinding machine (SS-RW04)

nylon string rewinder

PVC wire rewinder

nylon line rewinding machine

Description :

The programable automatic thick plastic nylon string rewinding machine (SS-RW04) is a CNC type programmable wire rewinding machine with high torsion DC winding motor. The capacitiy of maximum wire diameter can reach 5.0mm. This machine is the best choice for the thick nylon wire and plastic wire rewinding. Wind the string onto the small spool or bobbin from one big spool with a huge wire. Or wind the string onto the spool from the plastic extrusion machine. This wire rewinder be named high torsion plastic wire winding machine, thick plastic wire coil winding machine and thick plastic wire bobbin rewinding machine also. This winder can be customized according to spool size by requested.

Feature :

1. Microprocessor designing, easy for program-setting.

2. Stepper motor driven by constant-current power supply, high spreading speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire passing through precise polished rollerr prevent wire from high temperature.

5. Foot-switch connection for better efficiency.

6. Winding parameters and options can be programed easily.

Specification :

Model

SS-RW04

Spindle Number

1

Wire diameter

0.05~5.0mm

Spread pitch

0~9.999mm

Spread width(traverse)

230mm

Finished coil diameter

200mm

Winding motor

500W DC Motor

Spread motor

4-Phase Stepper Motor

Max. speed

2500 RPM

Memory

999 Steps

Power source

AC220V/110V + 10%, 50/60 Hz

Dimension(cm)

70x52x60

Net weight

42kgs

Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • fish net wire rewinding machine Programable automatic fish string rewinding machine

    The programable automatic fish string rewinding machine (SS-RW02) is one precise digital fish wire coil rewinding machine. This fish wire rewinder is the best choice for rewinding fish string, rewinding fish wire, rewinding fish thread, rewinding plastic string, etc. .This rewinding machine is called also nylon thread rewinding machine.

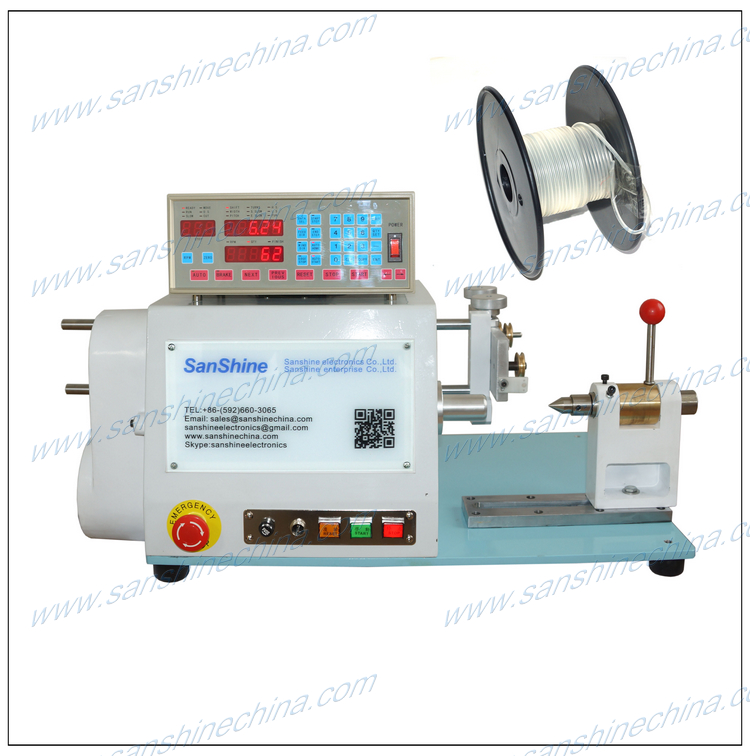

  • nylon wire rewinding machine Programable semiautomatic plastic string rewinding machine

    The programable semiautomatic plastic string rewinding machine (SS-RW03) is one digital wire rewinding machine. This wire rewinding machine is used for winding the PVC or Nylon string to be one small coil from one big spool within a lot of wire. This machine is named plastic wire rewinder also.

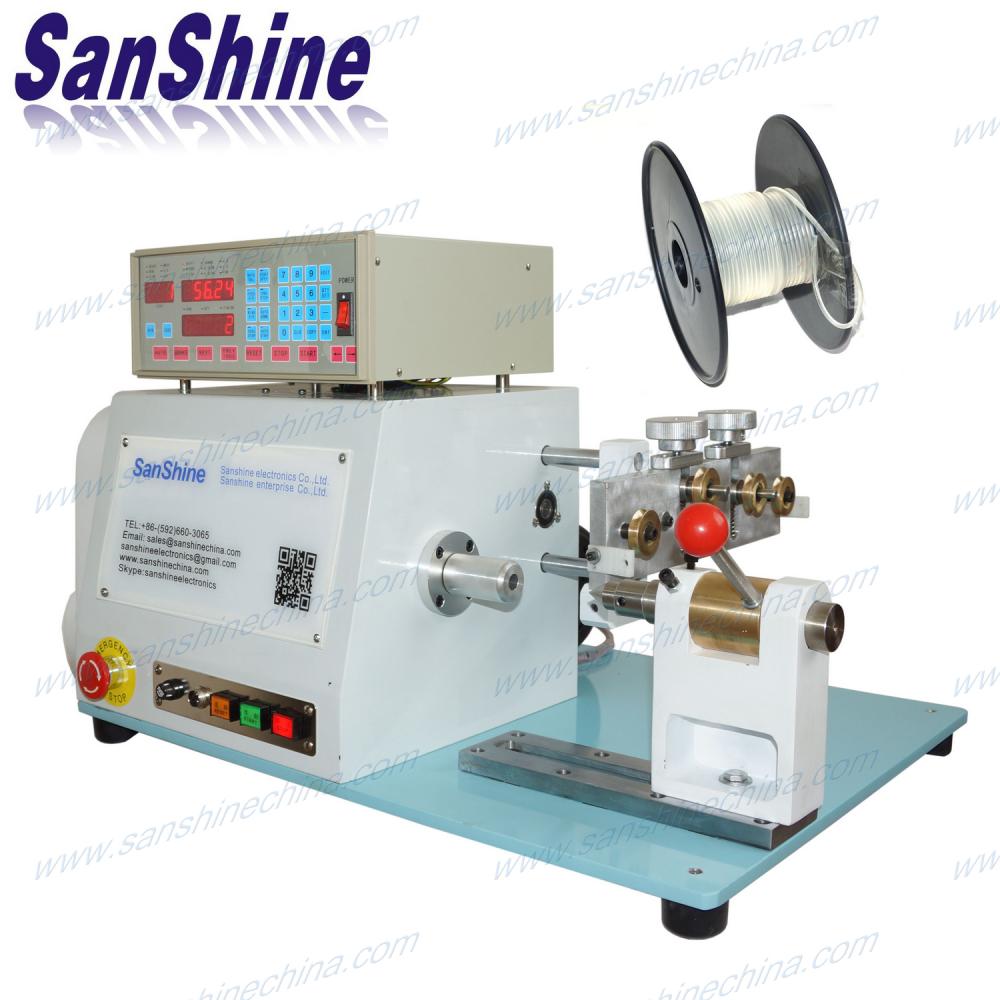

  • wire rewinder Programable automatic wire spool rewinding machine

    The programable automatic wire spool rewinding machine (SS-RW01) adopts precise computer numerical control system. This rewinding machine is used for rewinding the metal wire onto one small spool from one big spool whithin one much large wire spool. This rewinder is called bobbin rewinding machine and wire spinning winding machine also.

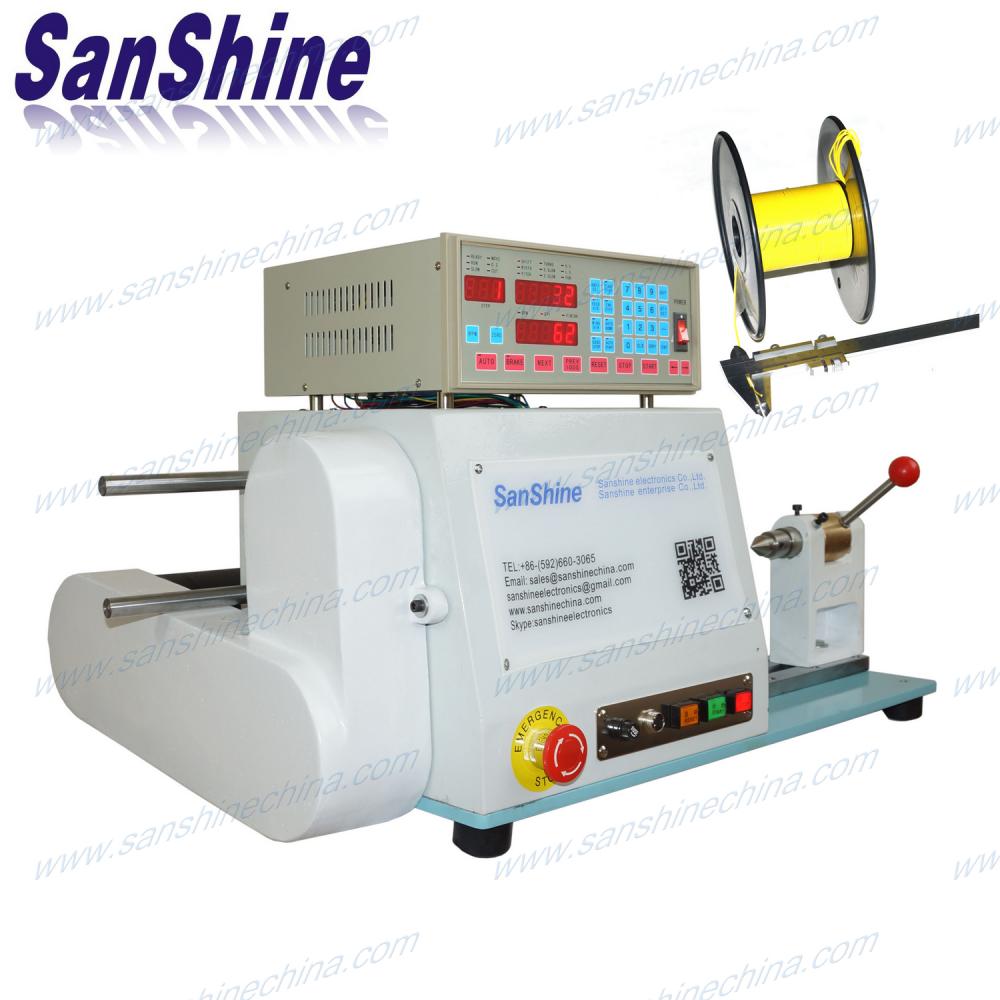

  • cable rolling rewinding machine Programable automatic cable wire roller rewinding machine

    The programable automatic cable wire roller rewinding machine (SS-RW05) is a CNC type programmable cable and wire rewinding machine with high torsion DC winding motor. This machine is the best choice for winding the cable or wire to be one tight roll after the cable or wire be produced and out put from the cable or wire extruding machine.

  • light transformer winding machine Fully automatic ten spindles linear coil winding machine

    This fully automatic ten spindles linear coil winding machine (SS1055) is used for winding the linear coils by fully automatically. Such as : small power transformer, signal transformer, inductor, filter choke coil, relay, current contactor, valve coil, solenoid coil, telecom transformer etc. .

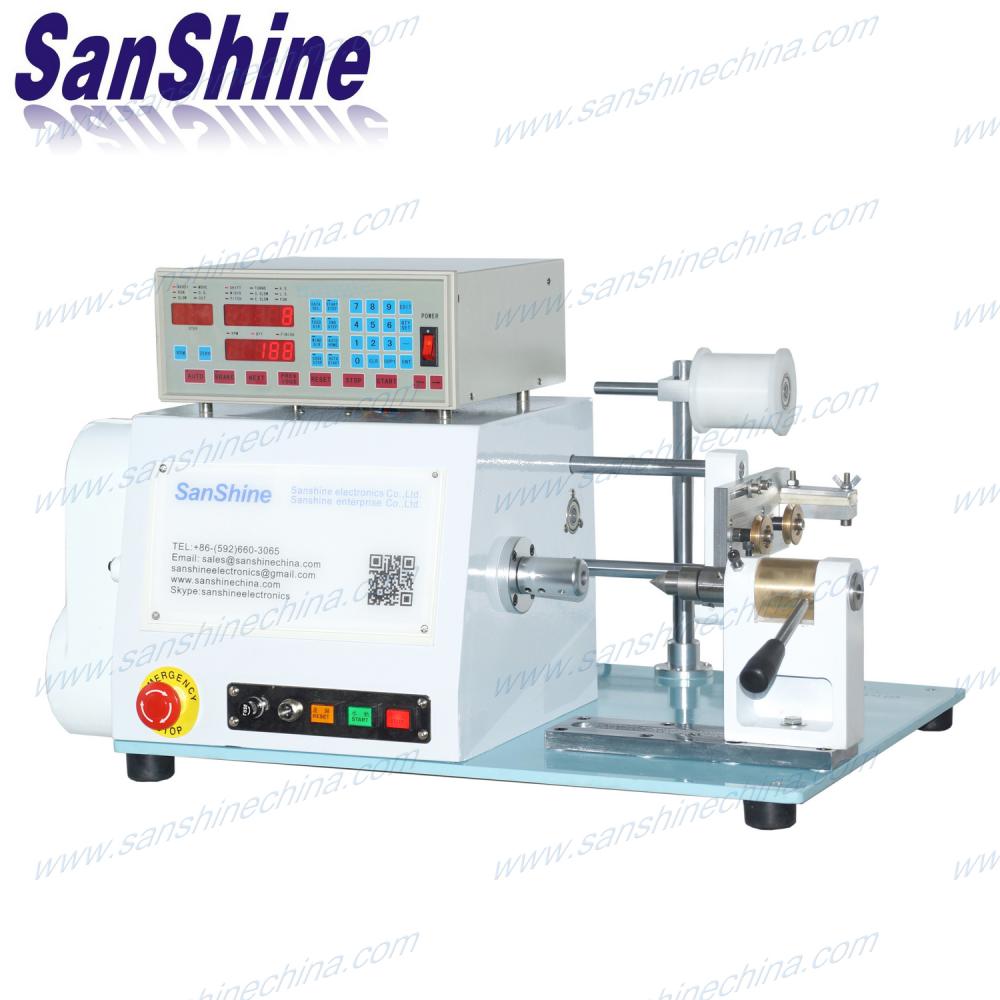

  • guitar pickups wire winding machine Programable CNC automatic guitar wire winding machine
