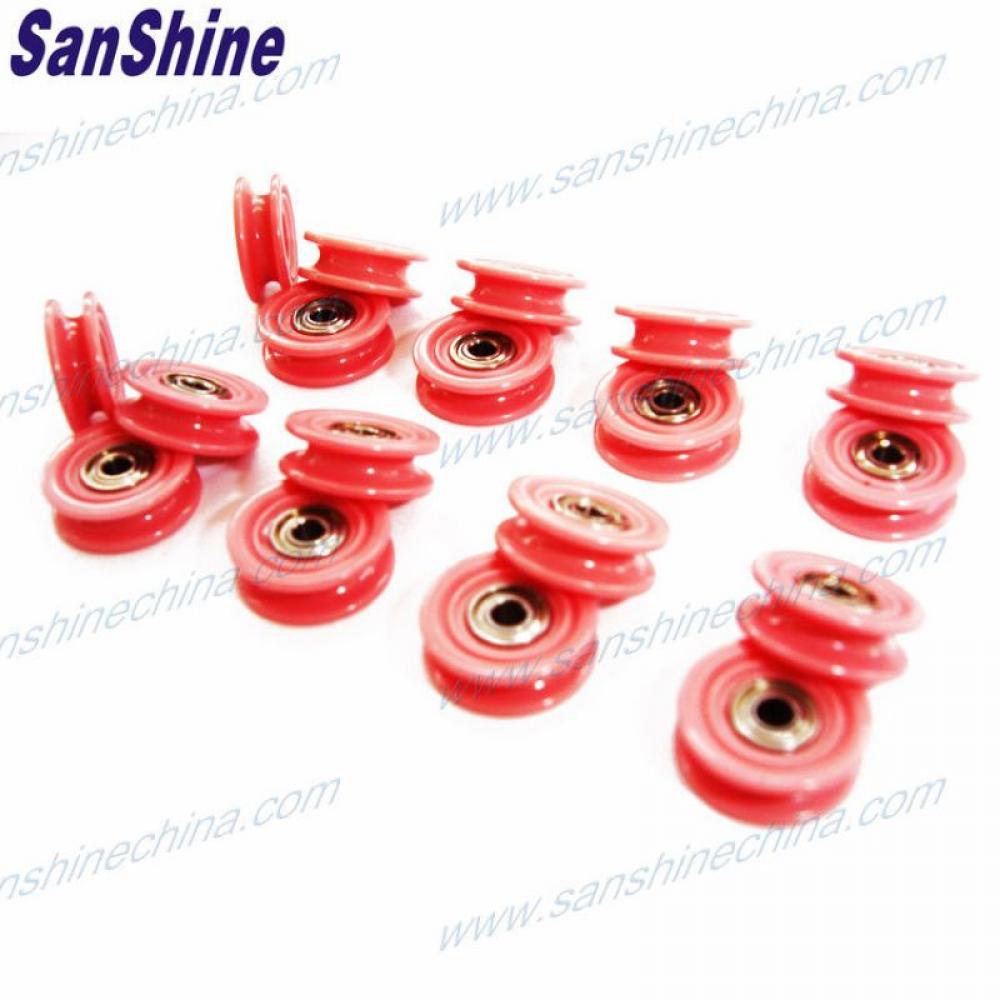

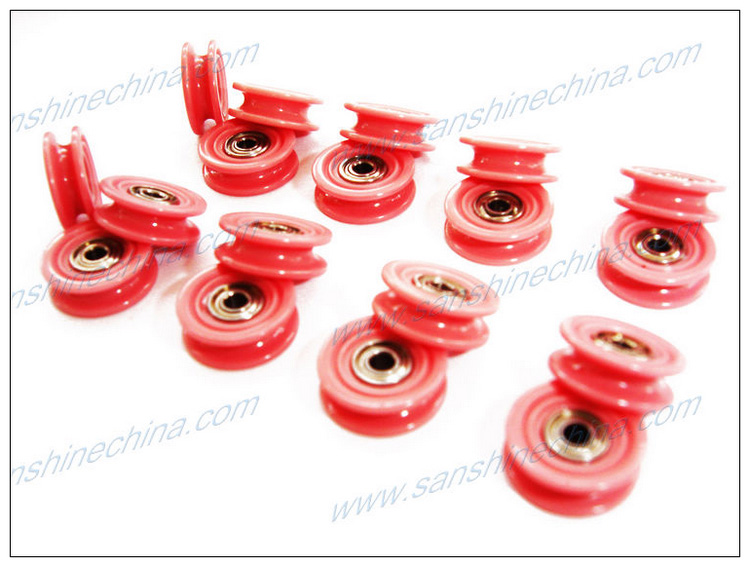

Product name : Bearing type mirror surface ceramic wire guide pulley

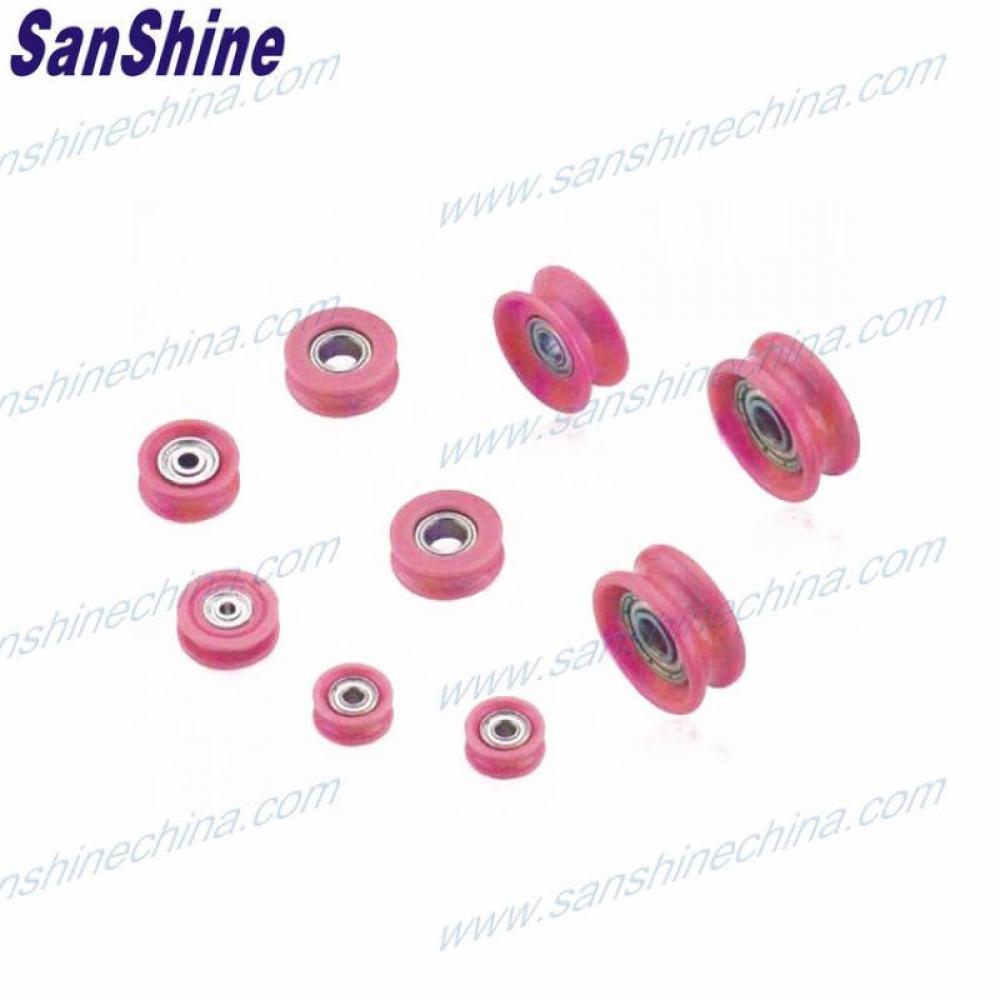

bearing type ceramic pulley

bearing type ceramic wheel

Description :

This bearing type mirror surface ceramic wire guide pulley is used for the direction change and the guidance of the enamelled wire, string, yarn etc. . The ceramic circle inside is made by the fine porcelain. This bearing type mirror surface ceramic wire guide pulley is named ceramic wire guide wheel also. There is a high-speed bearing in the ceramic circle which can assure the sliding distance between the wire and the ceramic circle is no more than 0.2mm. Thus the wire insulation film has been protected and the beating of the wire has been controlled within a certain small scope in good. The sidewalls of the ceramic roller can prevent the jump of the wire during the winding, and stabilized the tension.

Features :

1.The surface polish degree of the porcelain ring : Ra0.2.

2.The sliding distance between enameled wire and the roller :≤0.2mm

3.The hardness : HRa88.

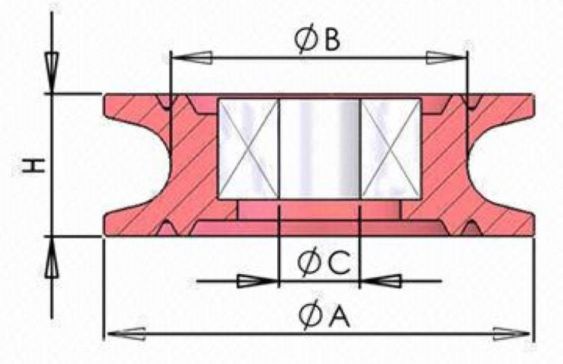

Specification (refer above measurements drawing) :

Part No.

A(mm)

B(mm)

C(mm)

H(mm)

CR001

9.9

8

2

4

CR002

10.1

CR003

11.5

10

4

4

CR004

13.9

10

3

6

CR005

7.8

6

2

3.2

CR006

10.6

7.3

2

3.5

CR007

27

15

5

11

CR008

16.5

13

4

5
