Single spindle programmable automatic transformer coil winding machine

The single spindle programmable automatic transformer coil winding machine (SS600) is used for winding the bobbin coils. Like as switch power source transformer, power line filter inductor, signal transformer, choke coils. This winding machine be named pulse transformer winding machine and audio transformer winding machine and filtering choke winding machine also.
  • Item NO.:

    SS600
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White
contact now
Description

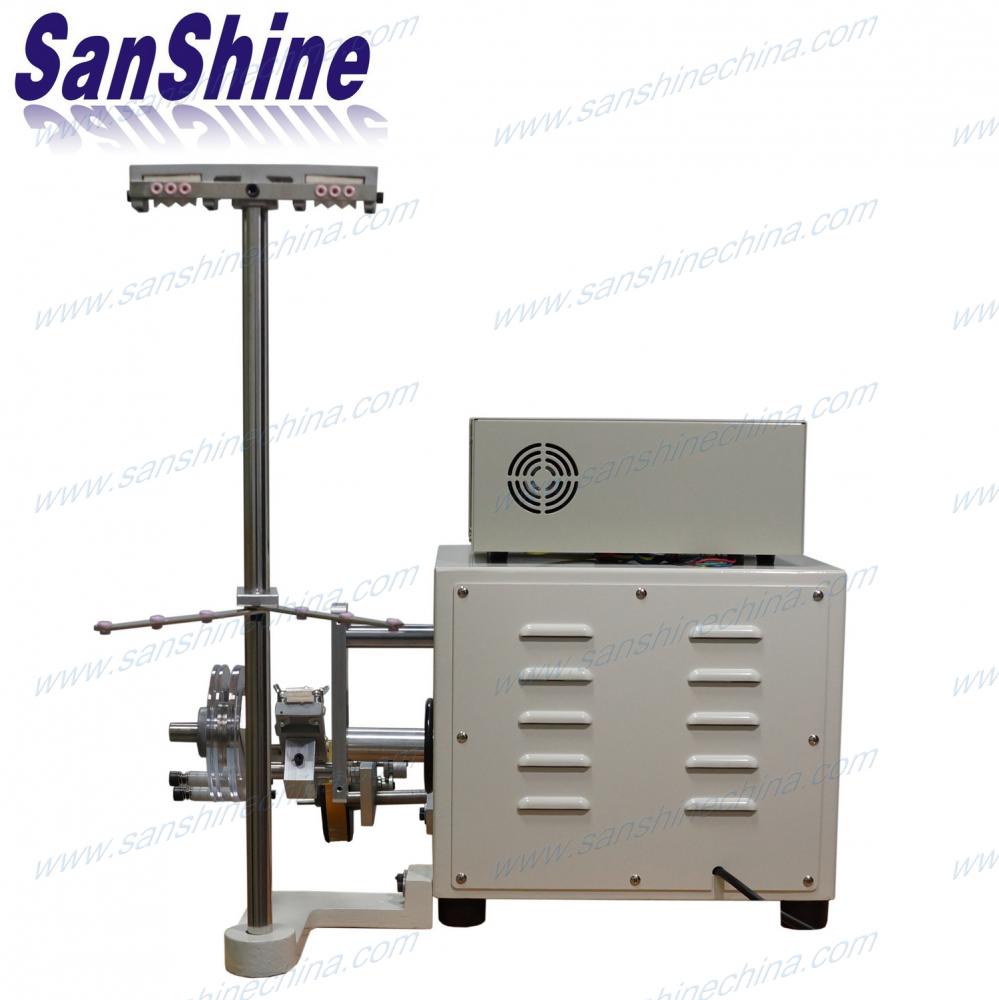

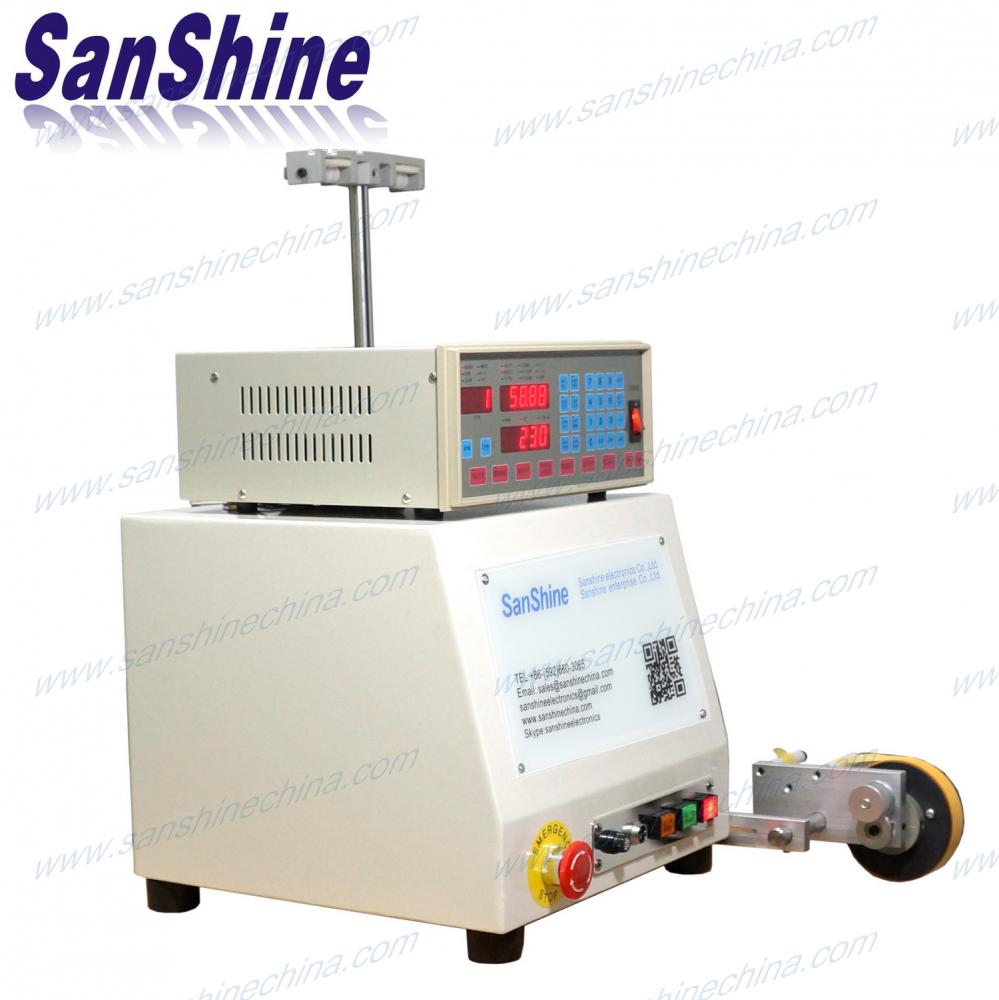

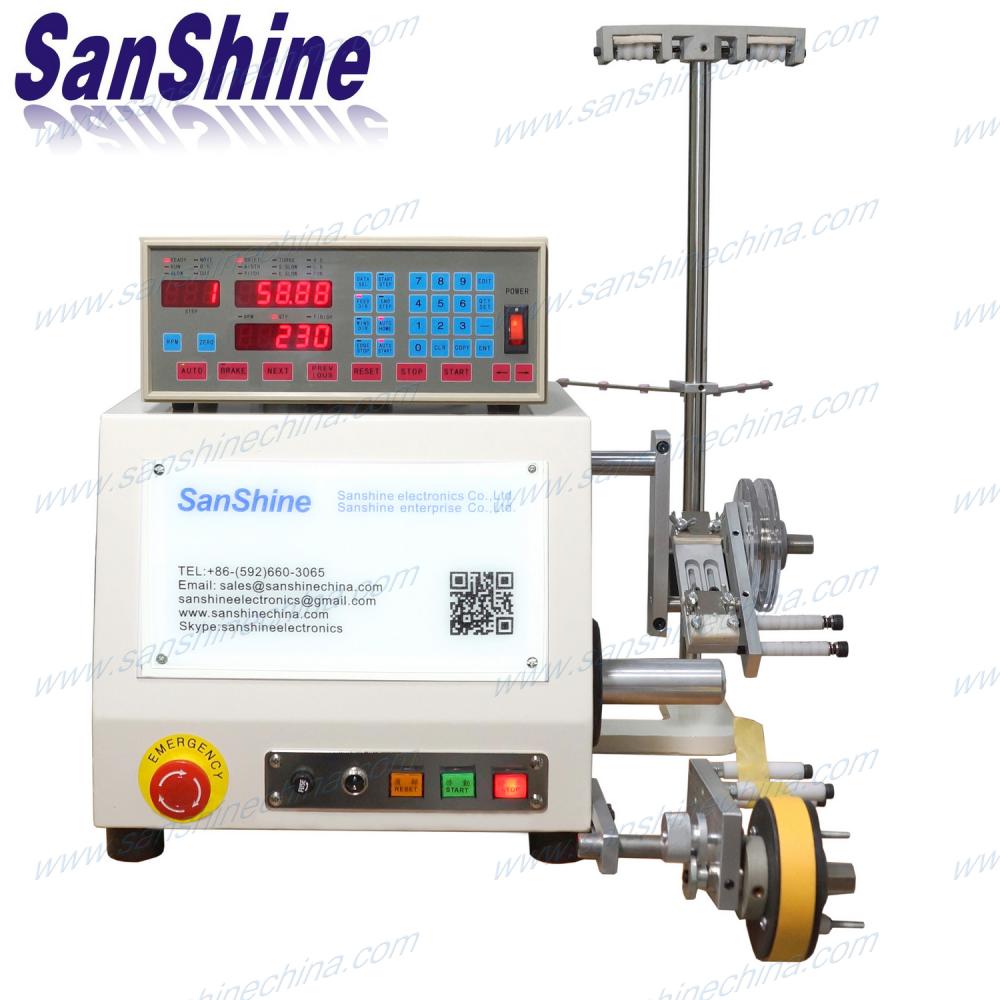

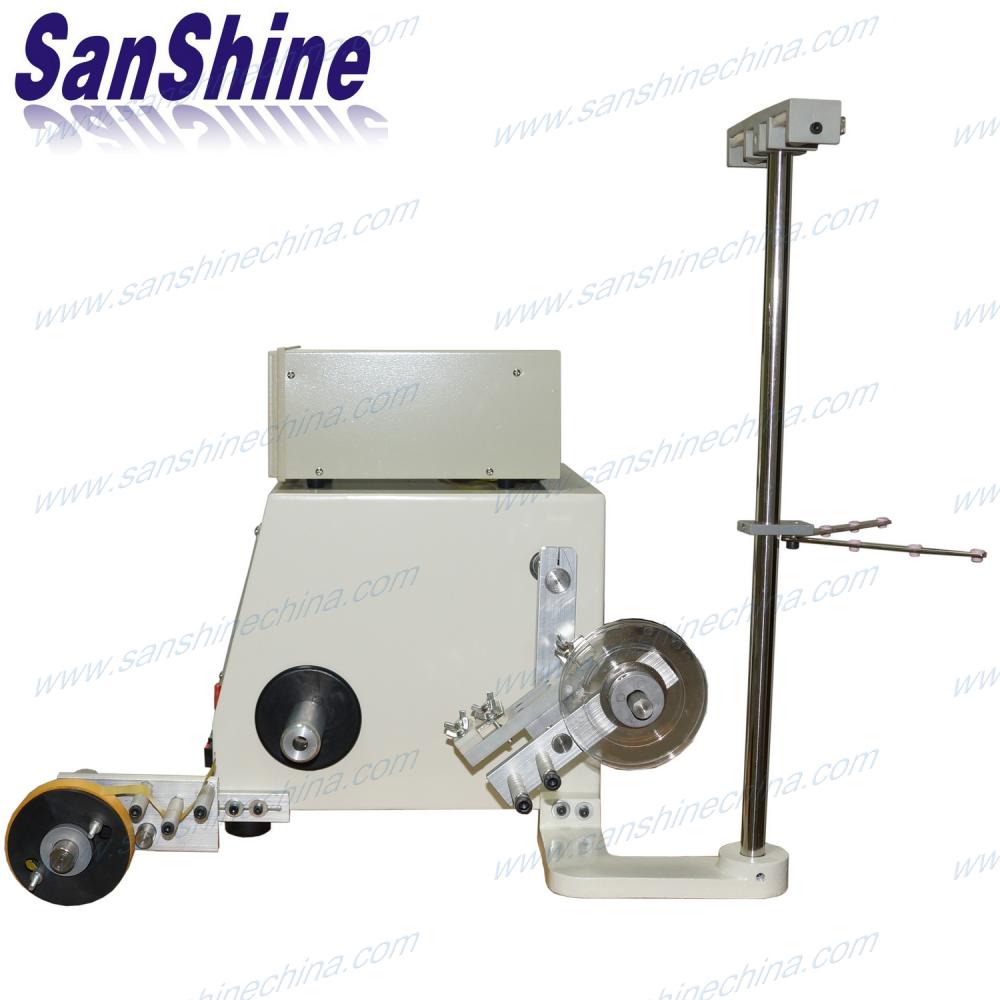

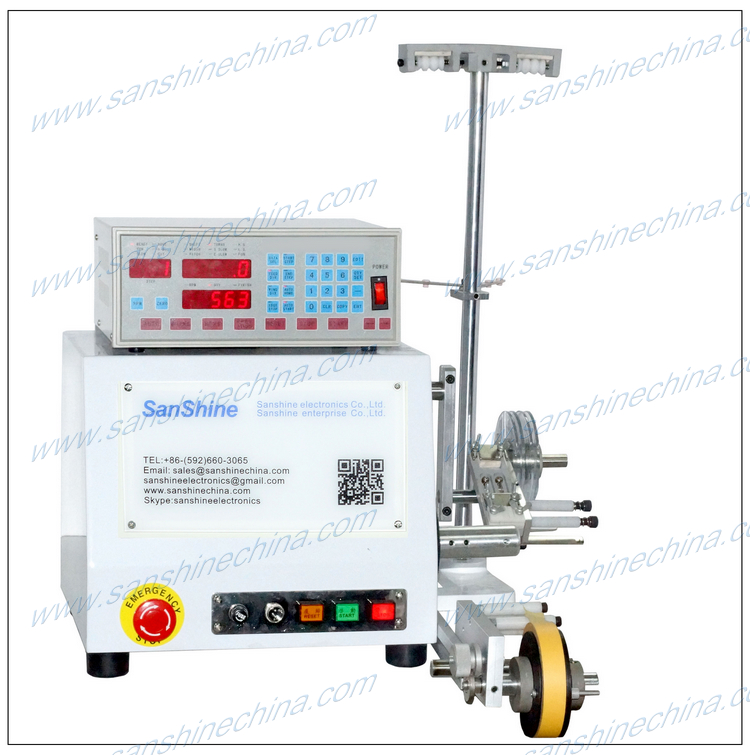

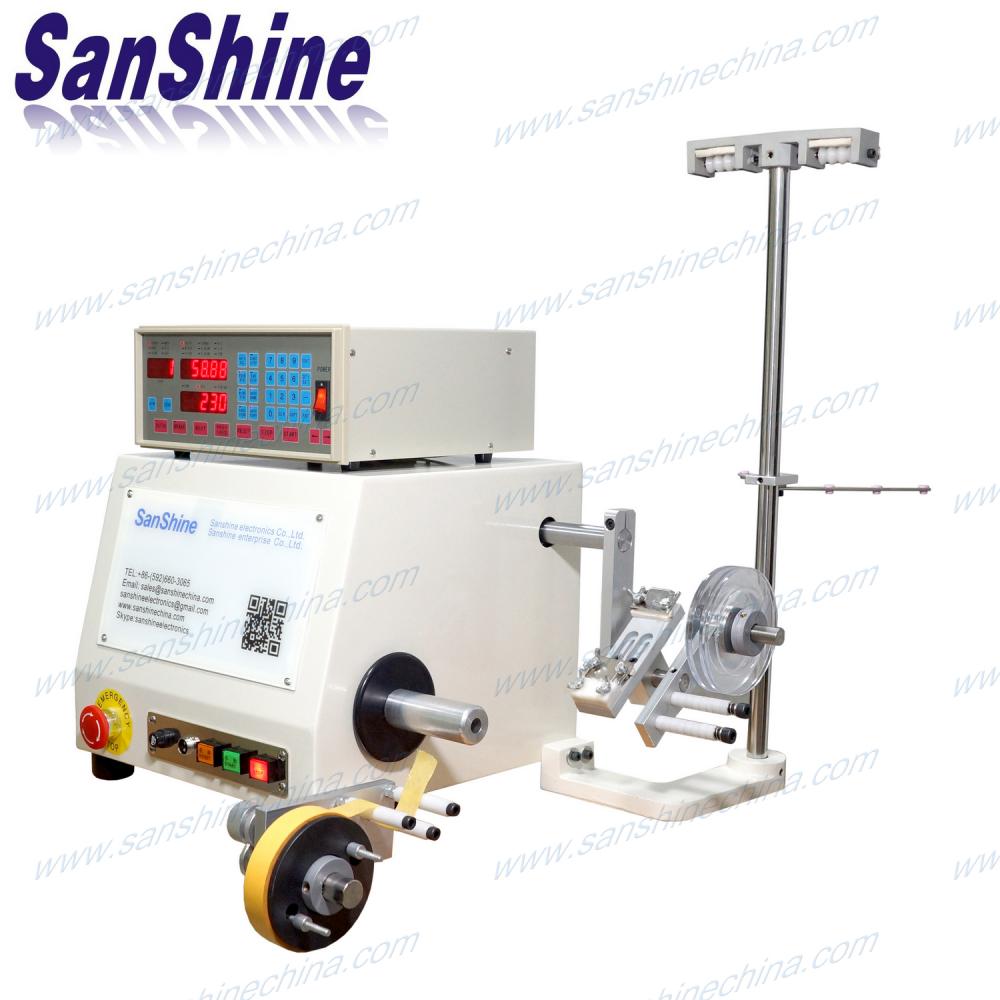

Product name : Single spindle programmable automatic transformer coil winding machine (SS600)




audio crossover network inductor winding machine

Guitar amplifier audio transformers winding machine

audio crossover network winding machine

high isolation transformer winding machine

Description :

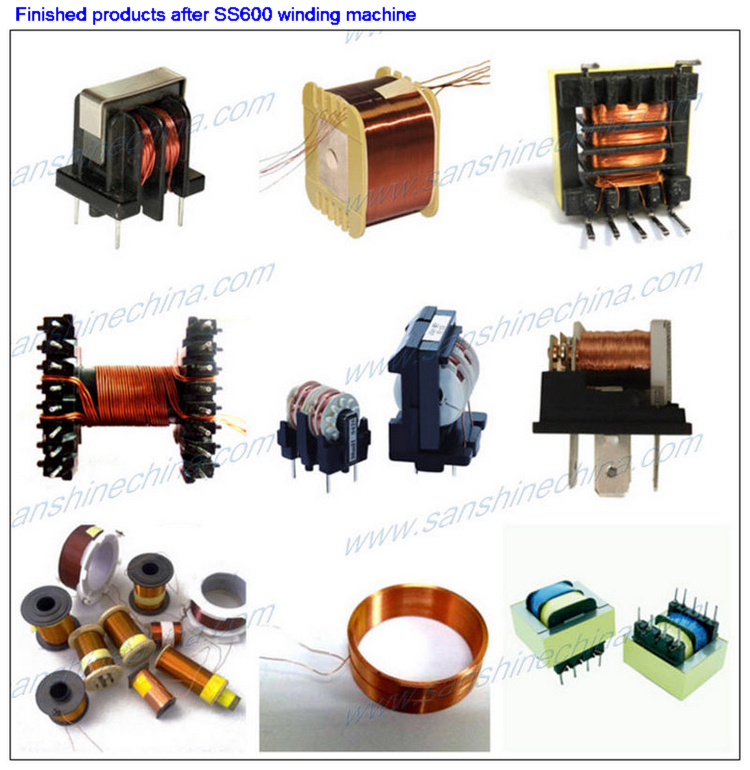

This single spindle programmable automatic transformer coil winding machine (SS600) is one CNC programmable coil winding machine. This type winding machine adopts the high speed DC brush-less winding motor for winding wire and the precise stepping motor for spreading wire. Fixed one piece insulation tape device and one piece margin tape device with the machine so that can satisfy the technical requirements transformer winding processing. This coil winding machine be named charger coil winding machine and adapter coil winding machine, power inductor winding machine also. This type coil winding machine is the best choice for winding transformer, relay, inductors, contactor coil, valve coil, ignition coil, etc..

Features:

1. The wire spreading head of winding machine (SS600) can install and pass through six pieces different size wires at the same time.

2. Wire winding and tape taping can be done by one machine.

3. Step motor driven by constant-current power supply, high spreading speed precise winding.

4. "Start Point" could be set by key panel or with teachable function. Display will show the position of spreading head while setting.

5. Small wire diameter products of spreading by nozzle type spreading head.

6. Wire passing through ceramic rollers prevent enamel film from high temperature.

7. Foot-switch connection for better efficiency.

8. Winding parameters and options can be set independently for each step.

9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

Specification:

Model

SS600

Spindles

1

Wire size

0.08~1.0mm

Spread pitch

0~9.999mm

Spread width

100mm (Max. )

Coil diameter

110mm (Max. )

Main motor

DC brushless Motor

Spread motor

2-Phase Stepper Motor

MAX. speed

6000RPM

Memory

999 Steps

Power source

AC220V /110V ±10%, 50/60 Hz

Dimension(cm)

76x68x72

Net weight(Kg)

37
