spool bobbin wire guide transparent dustproof barrel cover

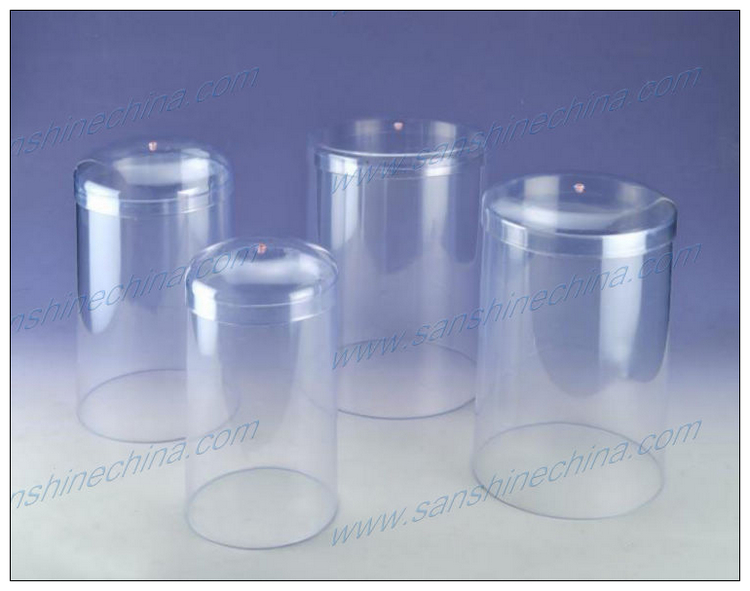

The spool bobbin wire guide transparent dustproof barrel cover is made from Acrylic and embeded one ceramic eyelet which used for covering the wire spool, avoiding the dust close to wire and making sure the wire be loaded and passing smooth during winding for winding machine. This barrel cover is named wire spool dustproof cover also.
  • Item NO.:

    Part numbers as list
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Transparent
contact now User's reviews
Description

Product name : spool bobbin wire guide transparent dustproof barrel cover

cable spool lid

cable reel lid

Description :

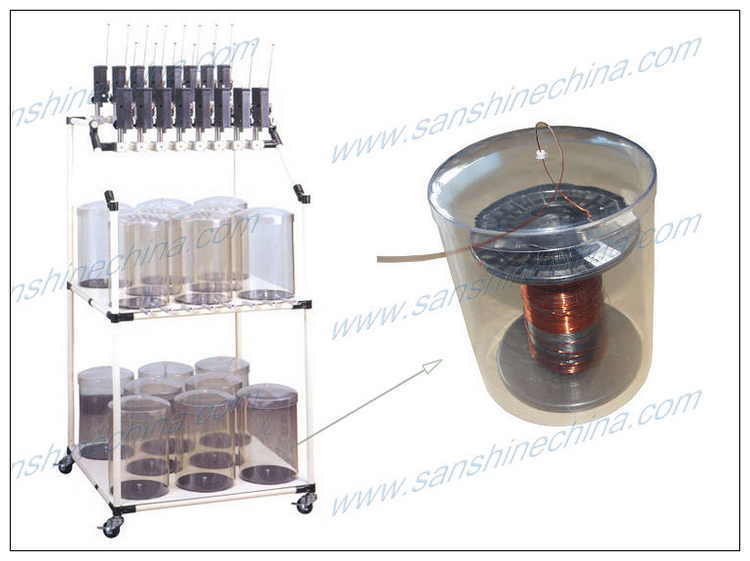

The spool bobbin wire guide transparent dustproof barrel cover is made from Acrylic and embeded one wire guiding ceramic eyelet in the cover. This spool bobbin wire guide transparent dustproof barrel cover is used for covering the wire spool, avoiding the dust close to wire and making sure the wire be loaded and passing smooth during winding for winding machine. This barrel cover is named wire bobbin dustproof barrel and wire spool dustproof barrel also.

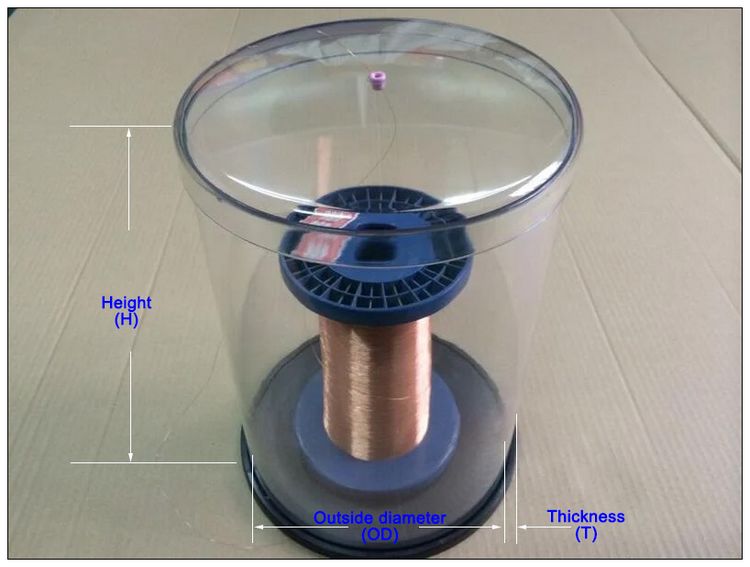

Specification :

Unit : mm

Outside diameter

150

180

200

220

250

300+/-4.9

Height(can be changed by request)

300

300

300

300

300

300

Thickness

3

3

3

3

3

3

Dimensions customize available by requested.
