Automatic transformer core EI sheet lamination machine

The automatic transformer core EI sheet lamination machine (SS-ALEIXXX seires) is one PLC contorlling EI sheet inserting machine. The SS-ALEIXXX seires EI silicon sheet lamination machines model number and size is different and made according to the EI sheet size. This EI sheet stacking machine is used for inserting the silicon steel sheets into the transformer bobbin to make one complete core.

  • Item NO.:

    SS-ALEIXXX seires
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Silvery white and blue
contact now User's reviews
Description

Prouduct name : Automatic transformer core EI sheet lamination machine

Description :

The automatic transformer core EI sheet lamination machine (SS-ALEIXXX seires) is one PLC contorlling EI sheet inserting machine. The SS-ALEIXXX seires sheet lamination machines model number and size is different and made according to the EI sheet size. The operator puts the silicon steel EI sheets into the magazine of this machine magazine, and puts the transformer coil within bobbin into the holiding fixture of this lamination machine first. Then programs and set up the lamination program according to the EI core size and the bobbin size, and save the program.Then press the "start" key what the lamination machine will insert the EI sheets into the transformer bobbin automatically and fastly according to the seting program. so easy and precise.


Feature :

1. Precise EI sheets magazine.

2. Precise EI sheets stacking mould.

3. Request precise dimension silicon sheets.

4. Programmable PLC controller.

5. Precise servo motor.

6. Power source : 220V 50/60 Hz single phase, 110V by user request.

7. Air pressure source : 0.7Mpa.

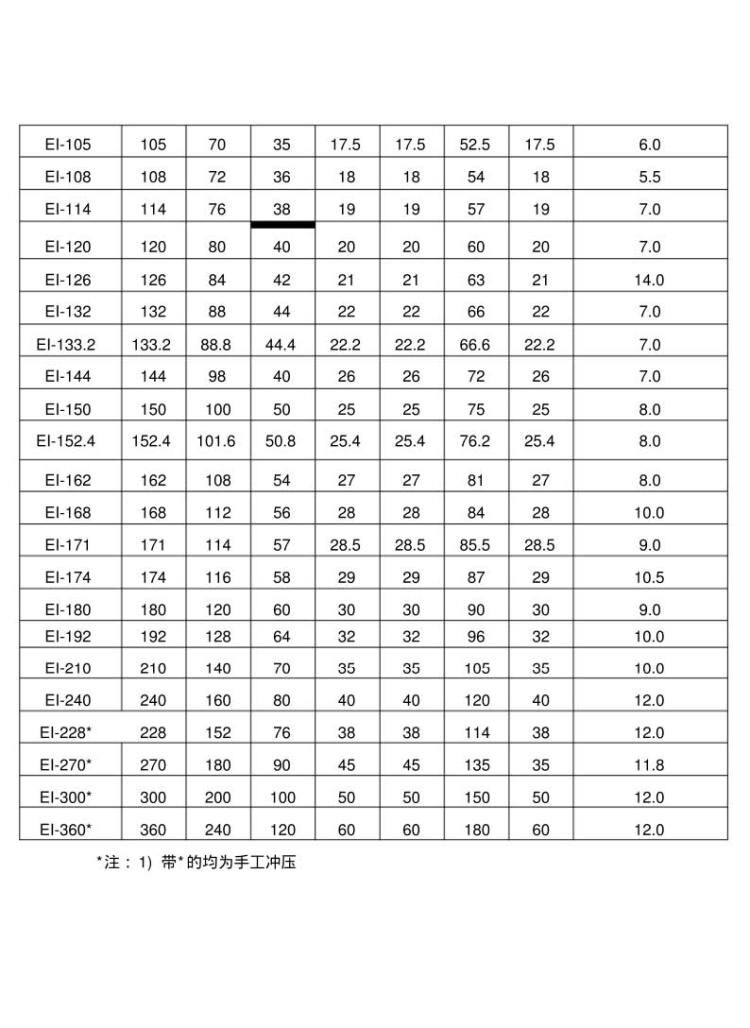

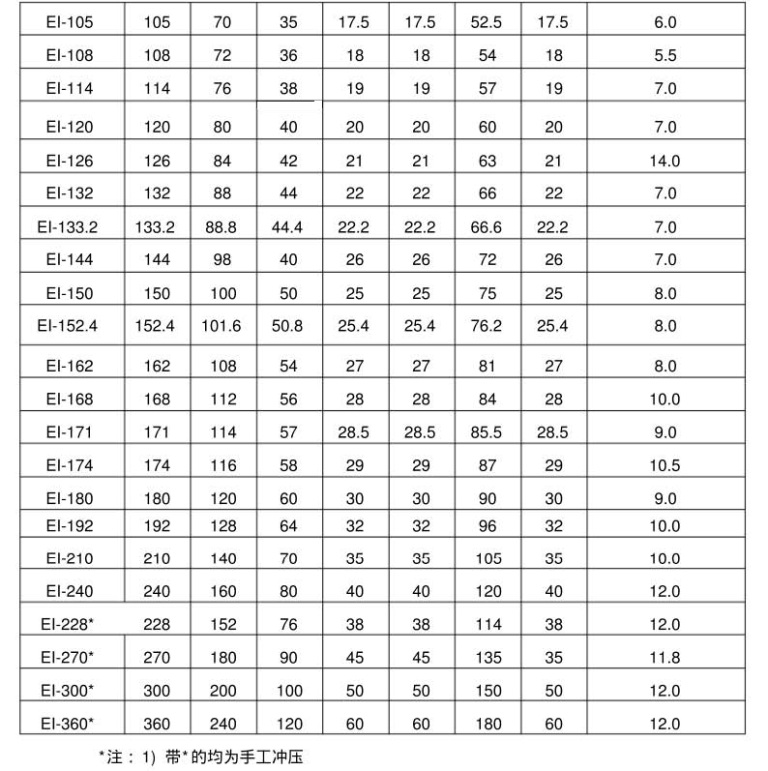

EI sheet specification :







Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

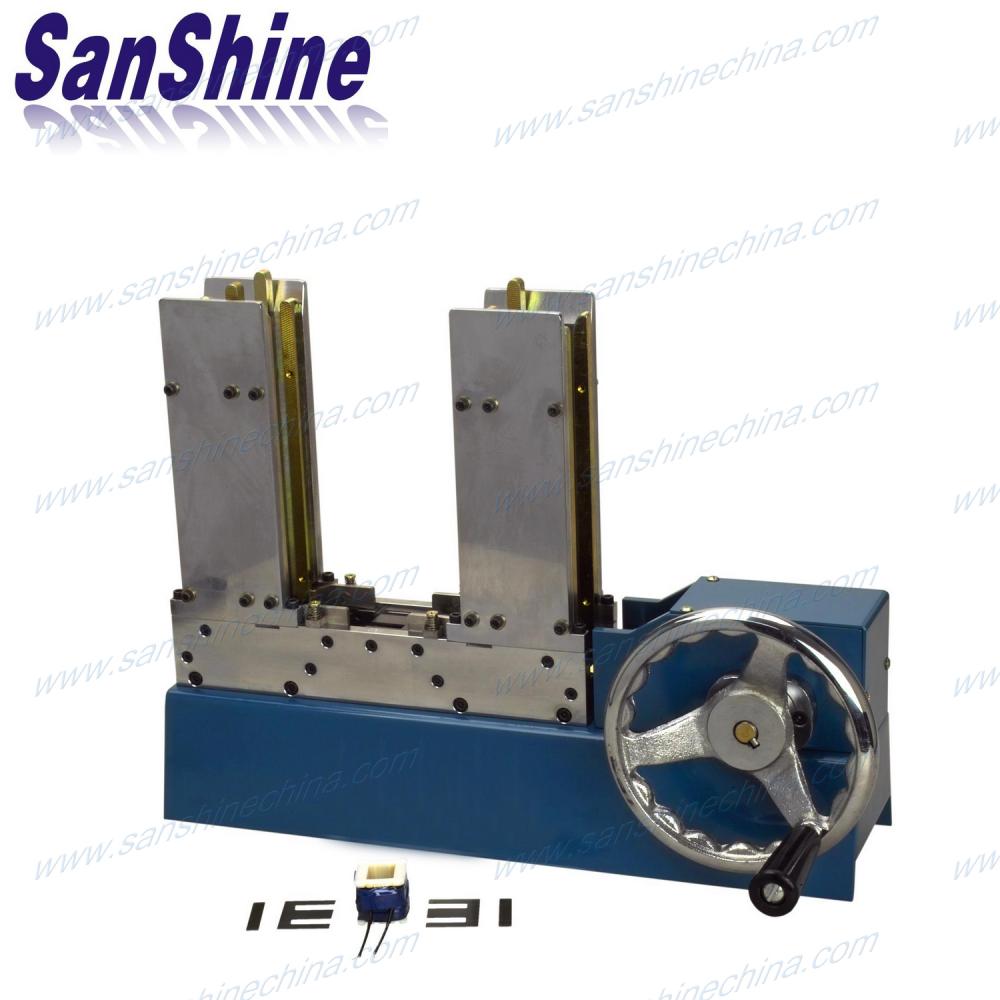

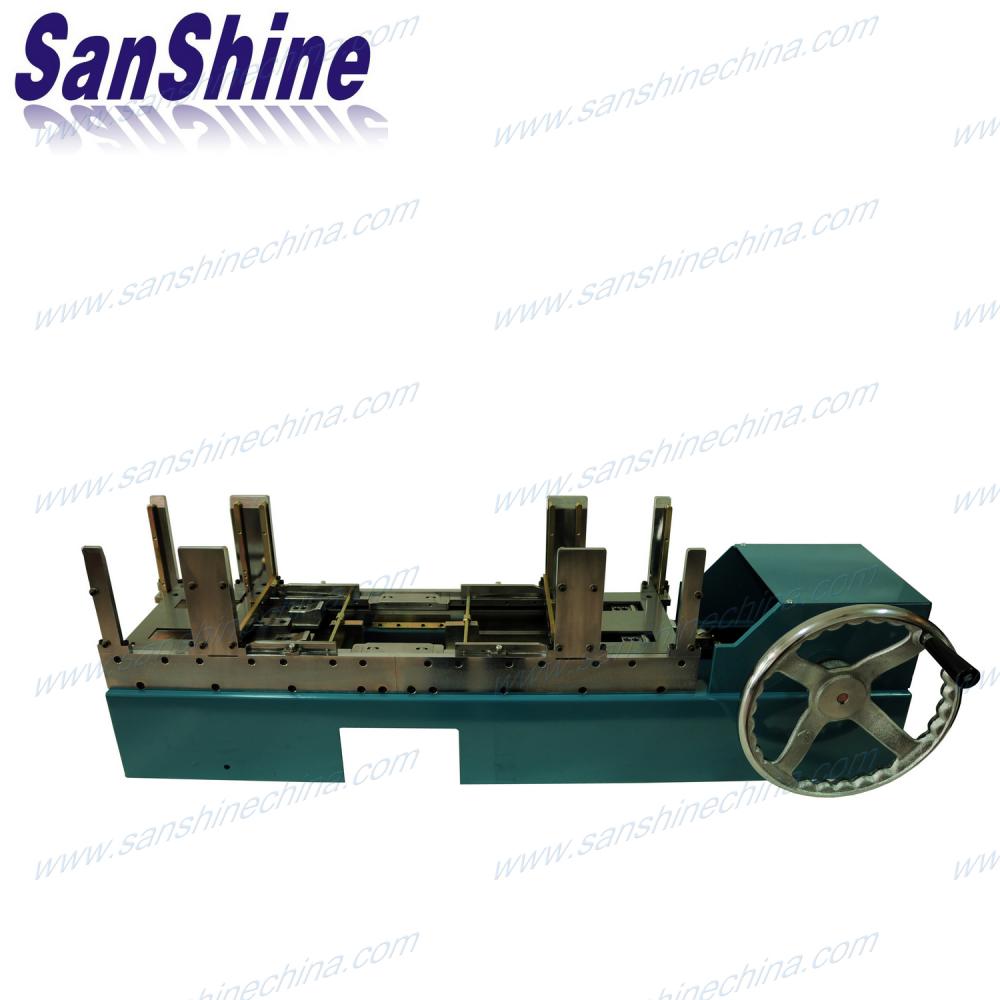

  • EI sheet core lamination machine Manual transformer core EI sheet lamination machine
