Manual transformer core EI sheet lamination machine

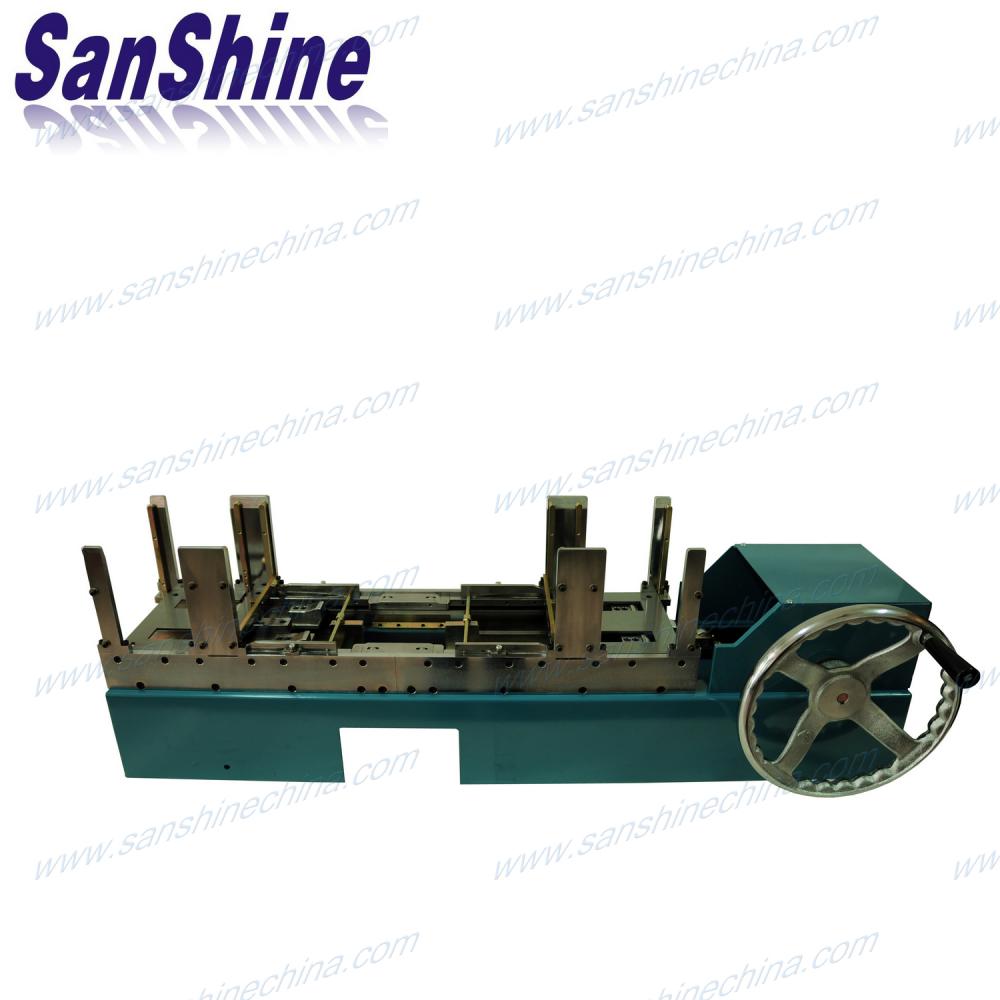

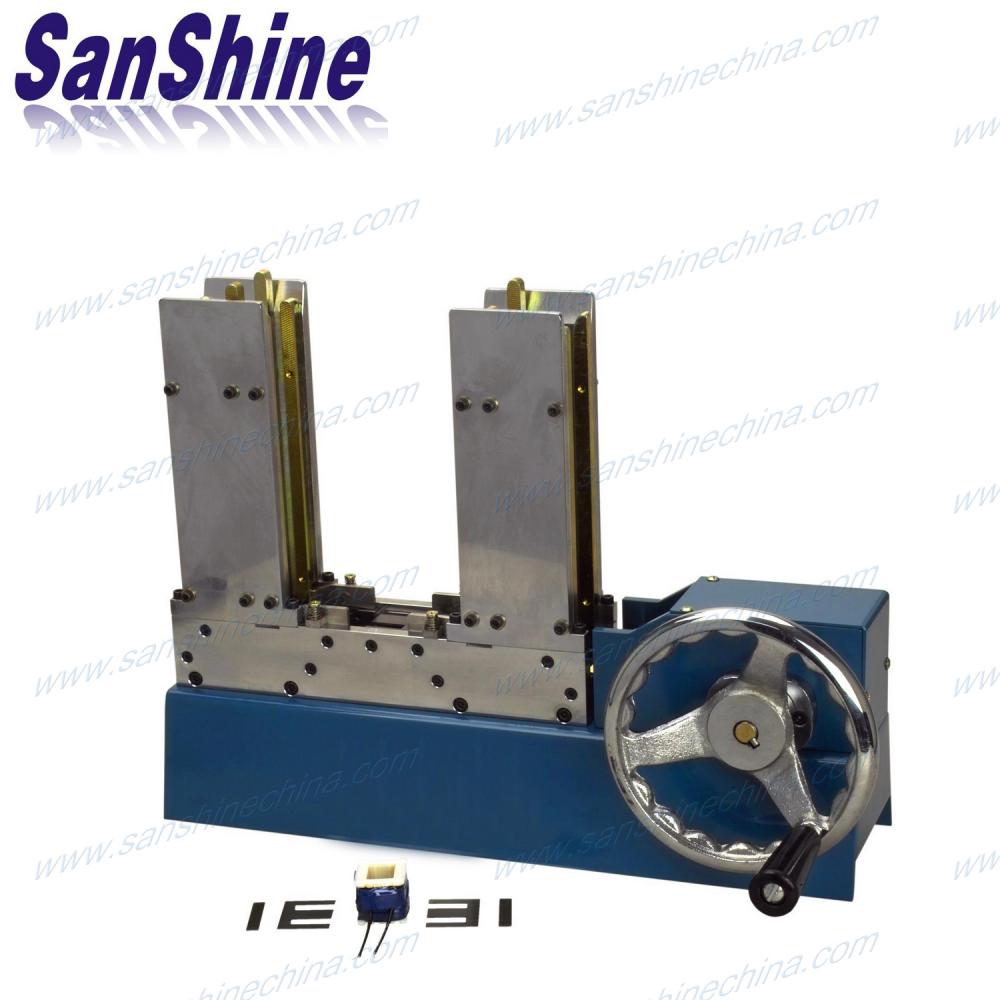

The manual transformer core EI sheet lamination machine (SS-MLEIXXX seires) is one manual type EI sheet insertin machine. The manual transformer core EI sheet inserting machine (SS-MLEIXXX seires) is used for stacking the silicon steel EI sheets.The SS-MLEIXXX seires sheet lamination machines model number and size is different and made according to the EI sheet size.
  • Item NO.:

    SS-MLEIXXX seires
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Silvery white and blue
contact now
Description

Prouduct name : Manual transformer core EI sheet lamination machine

Description :

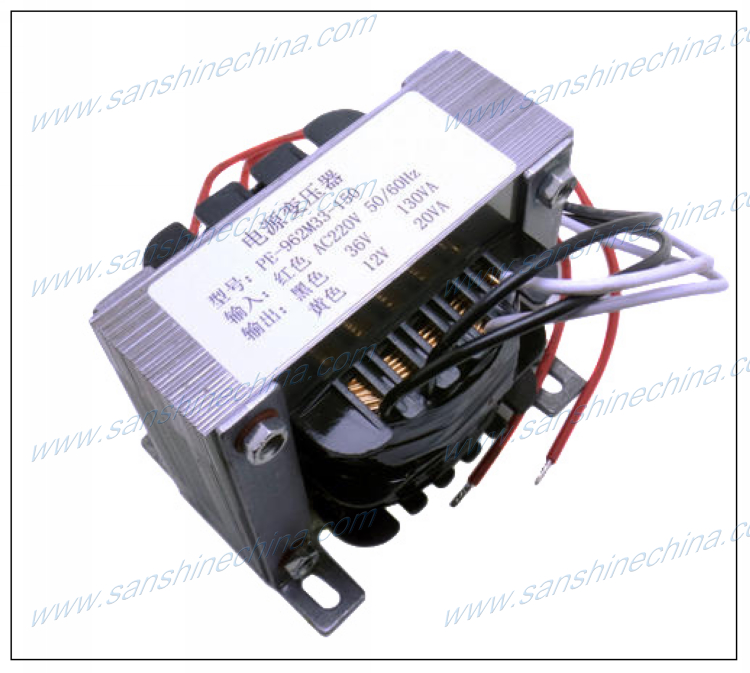

The manual transformer core EI sheet lamination machine (SS-MLEIXXX seires) is one manual type EI sheet inserting machine. The manual transformer core EI sheet lamination machine (SS-MLEIXXX seires) is used for stacking the silicon steel EI sheets.The SS-MLEIXXX seires sheet lamination machines model number and size is different and made according to the EI sheet size. Operator puts the silicon steel EI sheets into the magazine of this machine magazine, and puts the transformer coil within bobbin into the holiding fixture of this lamination machine first. Then operator use his left hand to press the bobbin coil and right hand to rotate the rotation wheel of the EI sheet stacking machine to stack the silicon steel sheets into the transformer bobbin to make one complete core. Very fast, so easy and precise.


Feature :

1, Precise EI sheets magazine.

2, Precise EI sheets stacking mould.

3. Request precise dimension silicon sheets.

4. Smooth and fast inserting mould.

5. Easy and light rotation wheel to provide the strong power to inserting mould.

6. Rotate the rotationg wheel manualy, so easy and simply.

7. Power source : NO.

8. Air pressure source : NO.

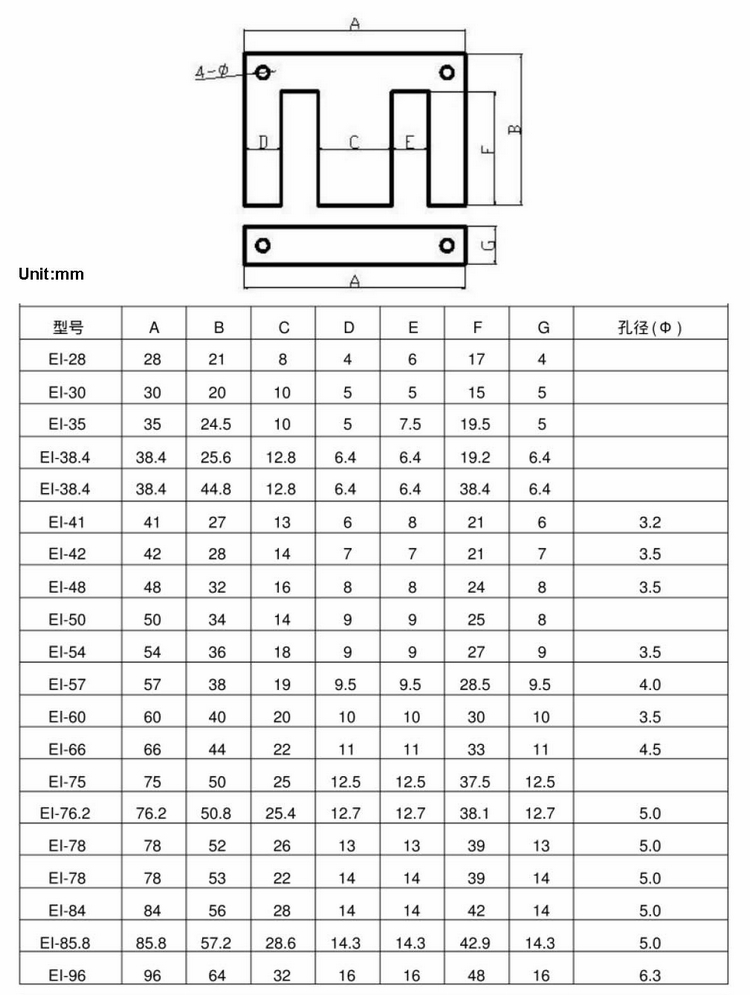

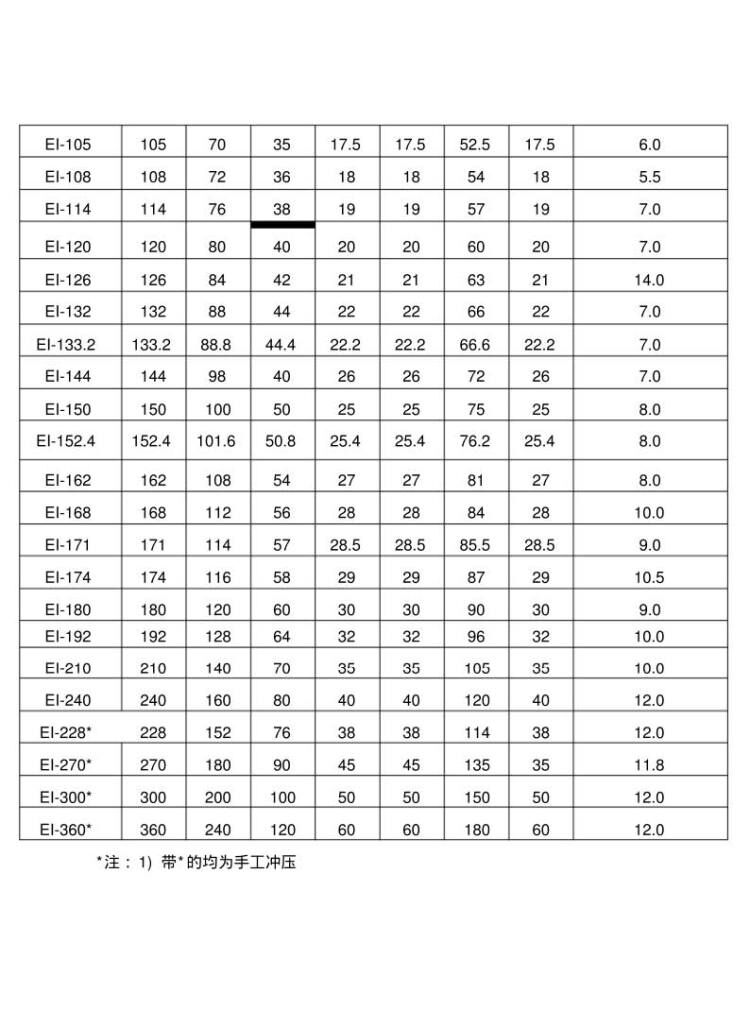

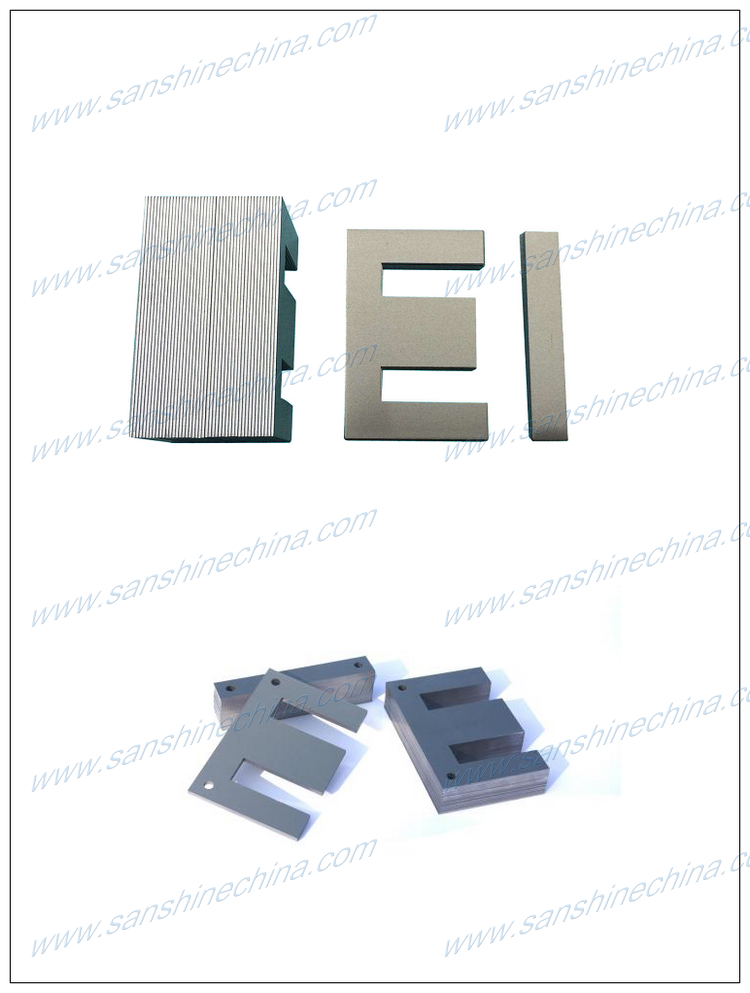

EI sheet specification :

Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
