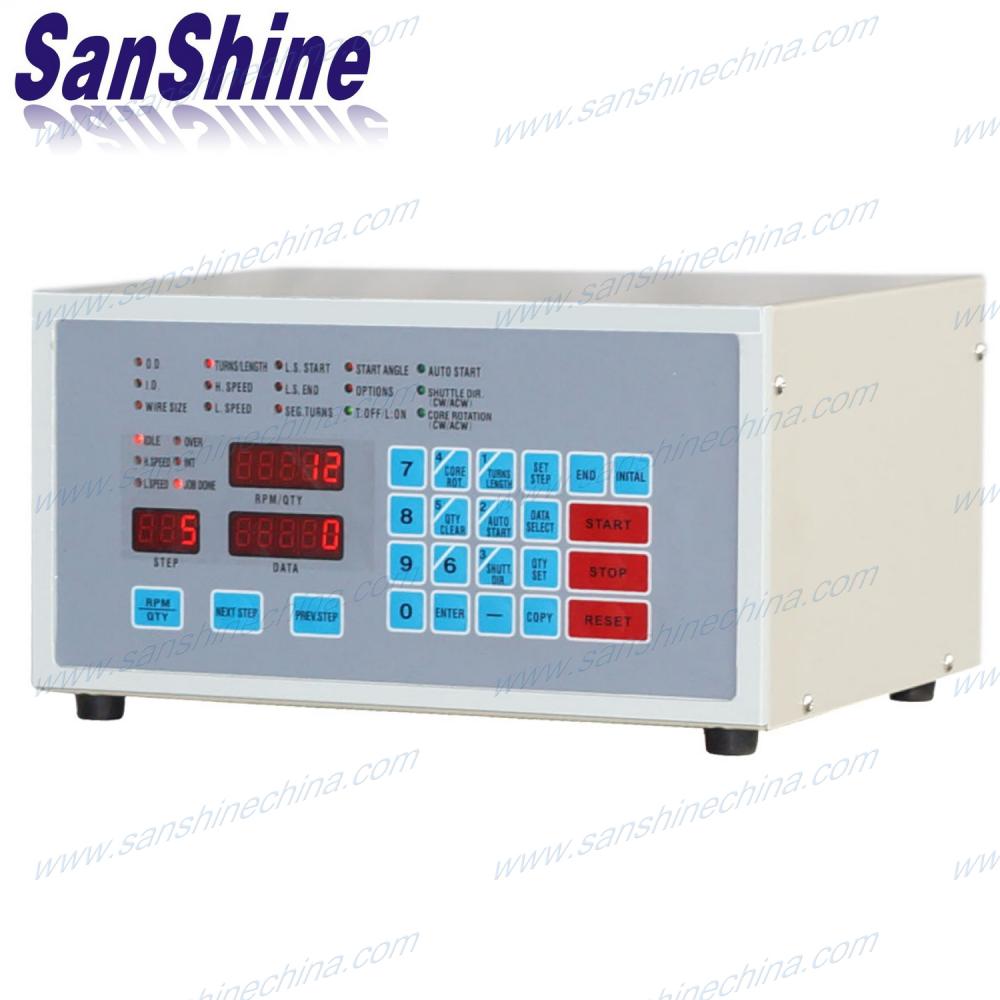

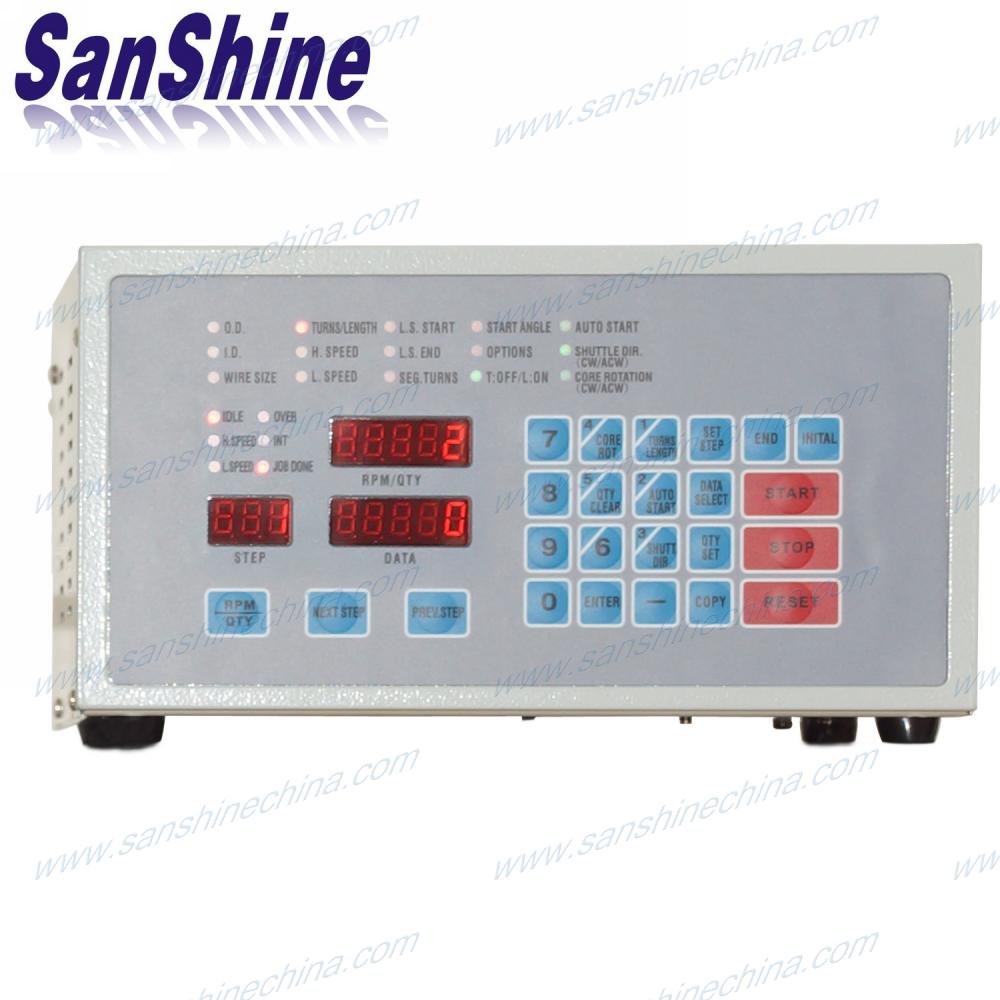

Two axes programmable toroid coil winding machine controller

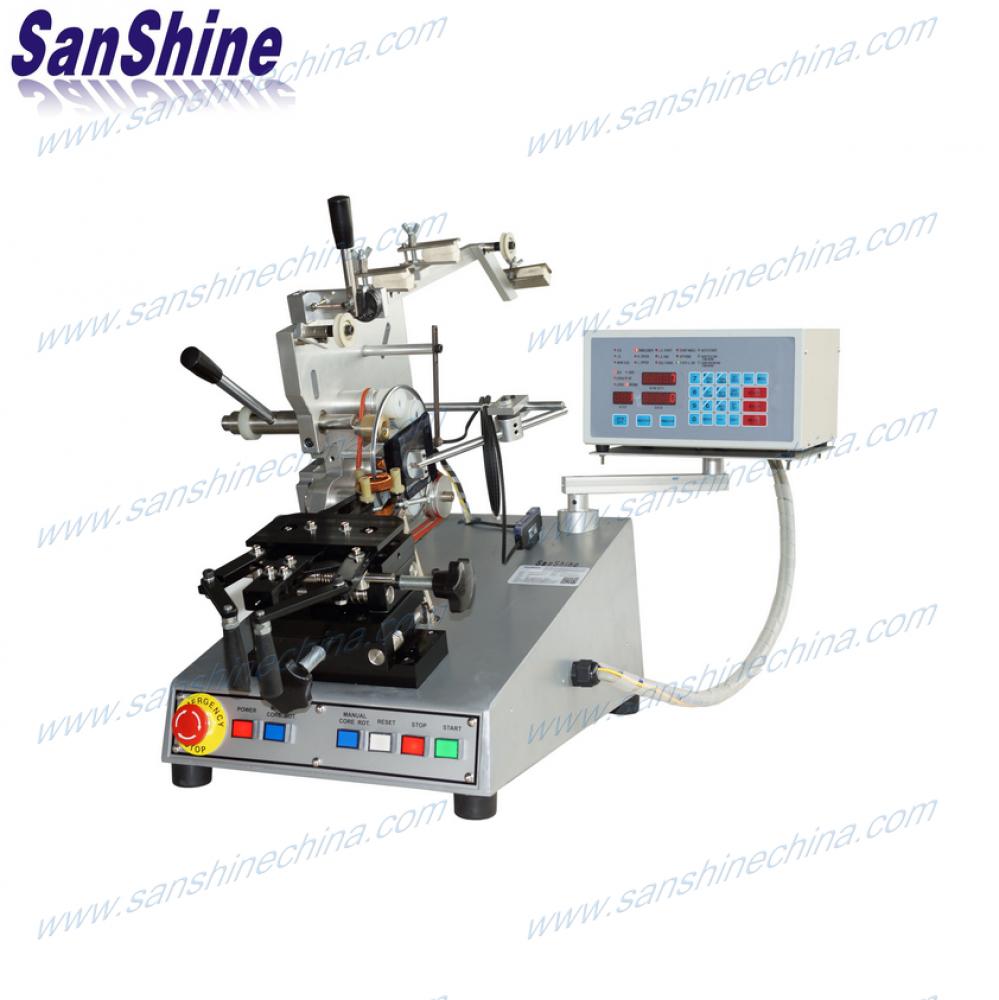

The two axes programmable toroid coil winding machine controller (SS900TWC) is a precise digital type programmable toroidal coil winding machine controlling system. This precise winding controlling system be used for widely for the toroid coils winding system. Like as : The electric electronic wire toroidal coil winding machine, toroid inductor winding machine and toroid transformer machine, etc. .
  • Item NO.:

    SS900TWC
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray and light blue
contact now User's reviews
Description

Prouduct name : Two axes programmable toroid coil winding machine controller

Description :

The two axes programmable toroid coil winding machine controller (SS900TWC) is a precise digital type programmable toroidal coil winding machine controlling system. This controller can drive the DC brush winding spindle motor, DC brushless winding spindle winding motor and wire spreading step motor directly without connect the external motor drivers. This controller can connect the external motor drivers also for some big power requirments. This precise winding controlling system be used for widely for the toroid coils winding system. Like as : The electric electronic wire toroidal coil winding machine, toroid inductor winding machine and toroid transformer machine, etc. .

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.

3. Can drive the DC brush winding spindle motor, DC brushless winding spindle winding motor and wire spreading step motor directly without connect the external motor drivers.

4. Can connect the external motor drivers also for some big power motors requirments, Can connect and controll the AC frequency converting driver so that connect the big power AC winding motor.

5. Jog-switch connection for adjust and program better efficiency.

6. Winding parameters and options can be set and programmable easily.

Specification :

Model winding spindle motor type driving directly capacity winding spindle speed(RPM) wire spreading motor controller power source controller size(mm) controller language
SS900TWC DC brushless 400W, 600W, 750W (3 types) 100~3000/6000 drive 2A 2phase hybrid stepping motor directly or conect external motor driver 220V / 110V±10% single phase 250*240*132 English or Chinese
AC single or three phase depend on AC frequency converting driver power 0~6000
Big power DC brushless depend on DC brushless driver power
