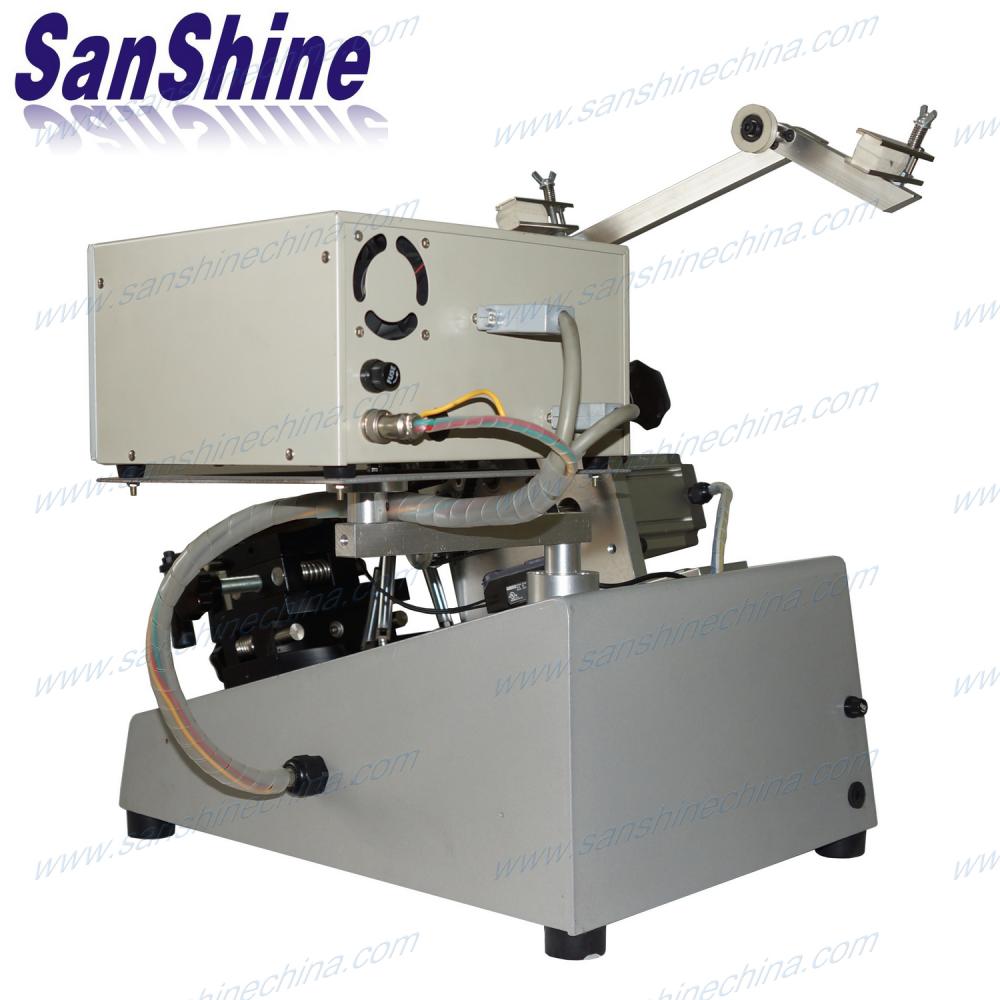

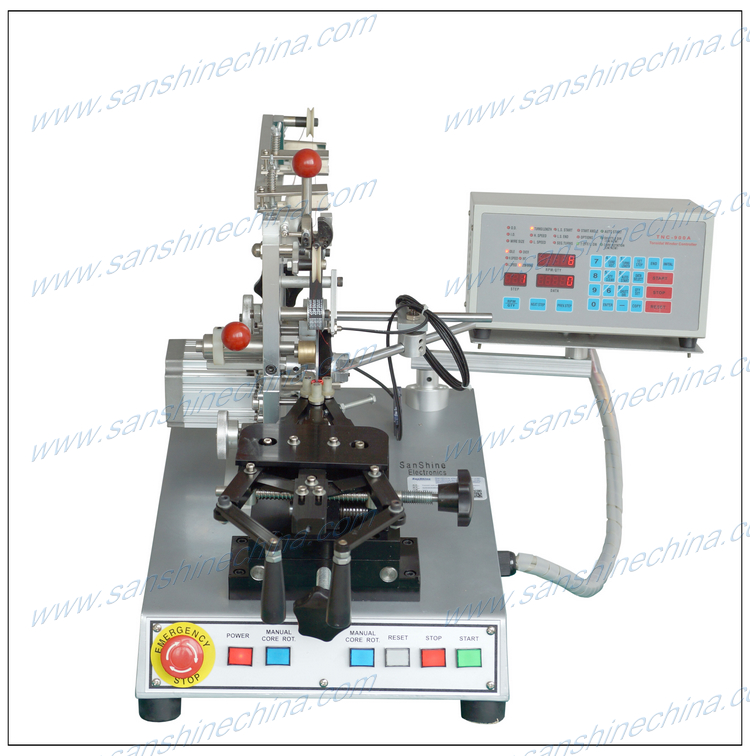

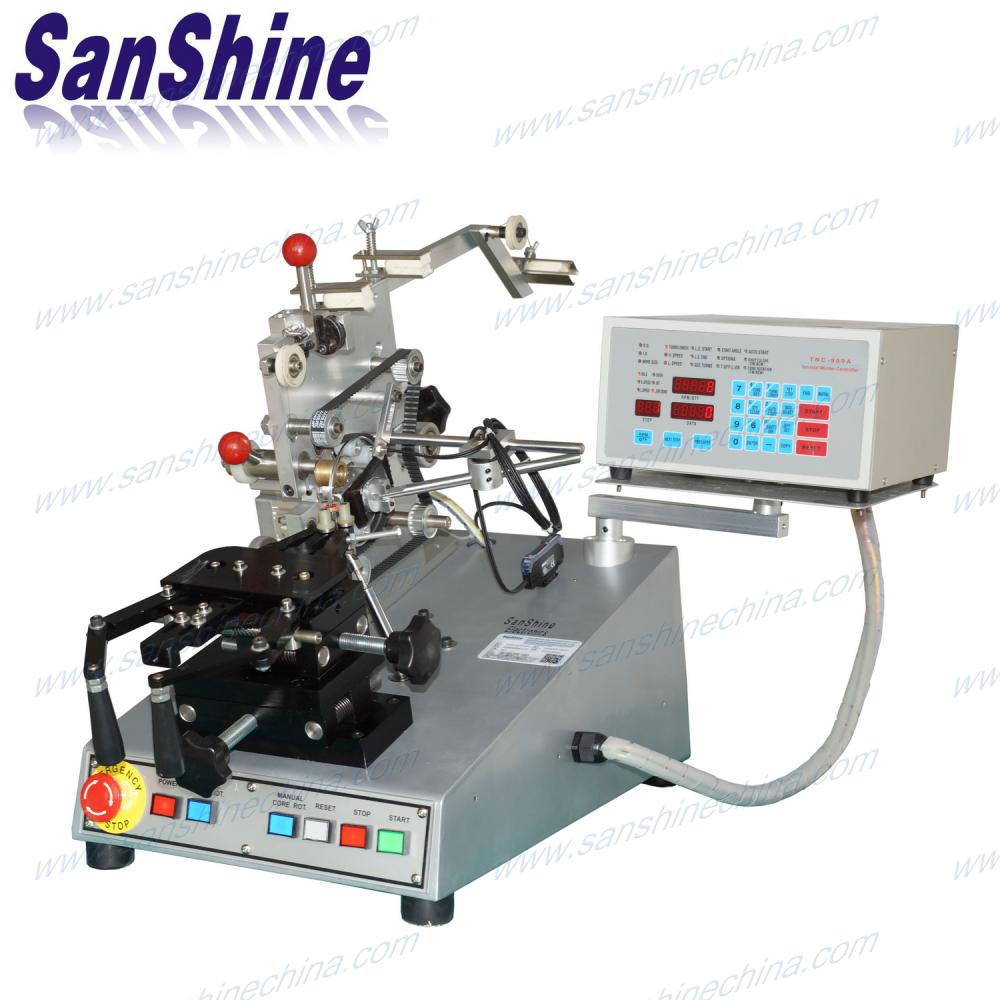

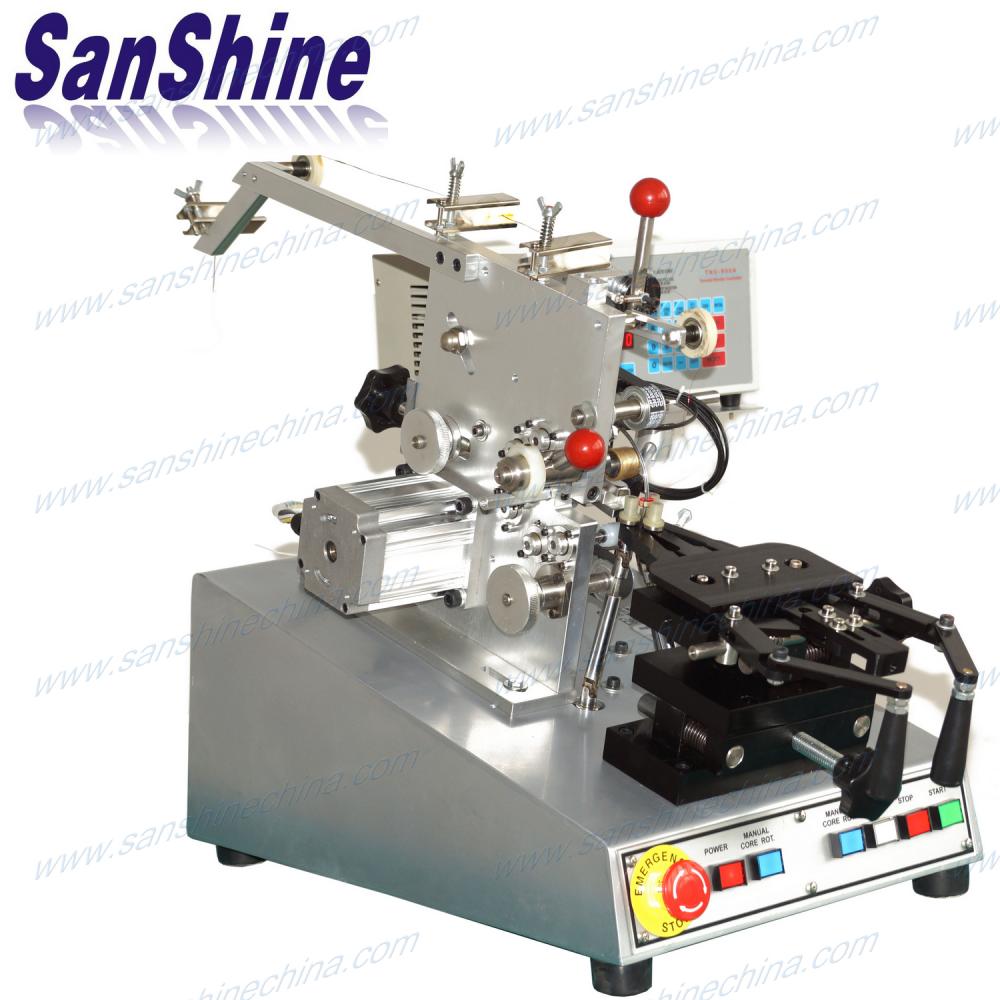

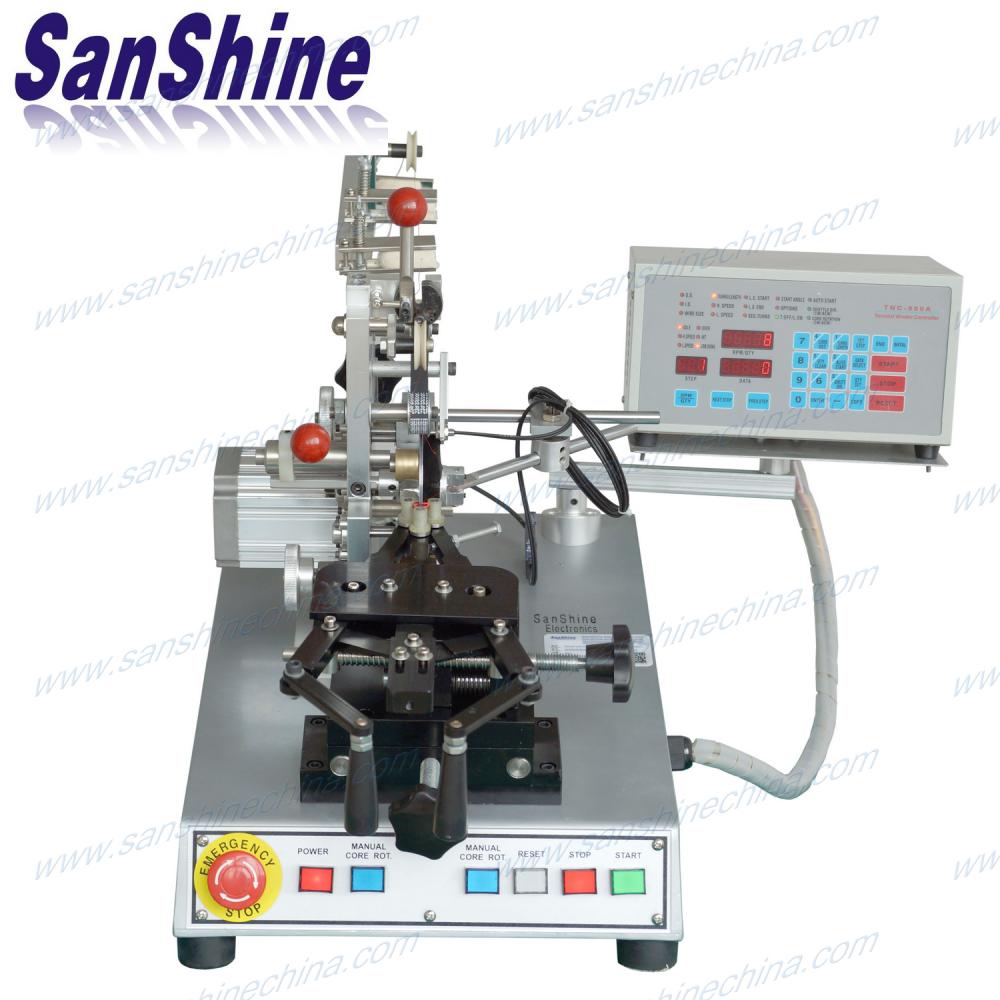

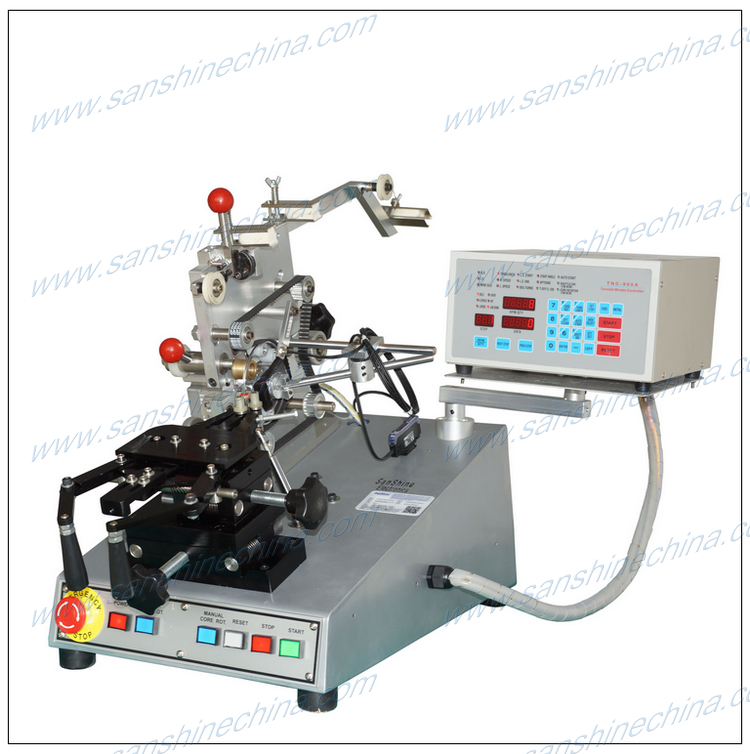

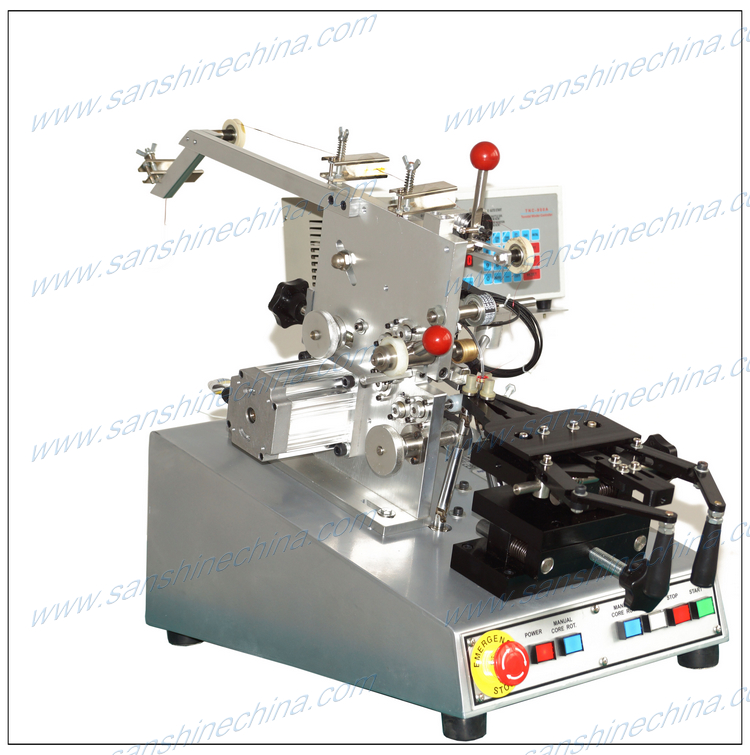

4inch belt type automatic toroid coil winding machine

The 4inch belt type automatic toroid coil winding machine (SS900B4, 4 inch winding head) is used for winding the thick enamelled wire on the toroid core. This toroid coil winding machine (SS900B4) is named active filter toroid winding machine also.
  • Item NO.:

    SS900B4
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

Product name : 4inch belt type automatic toroid coil winding machine (SS900B4)



toroid high inductance inductor winding machine

toroid normal mode inductor winding machine

toroid power inductor winding machine

belt type toroid coil winding machine

programmable thick wire toroid winder

programmable thick wire toroid winding machine

Description :

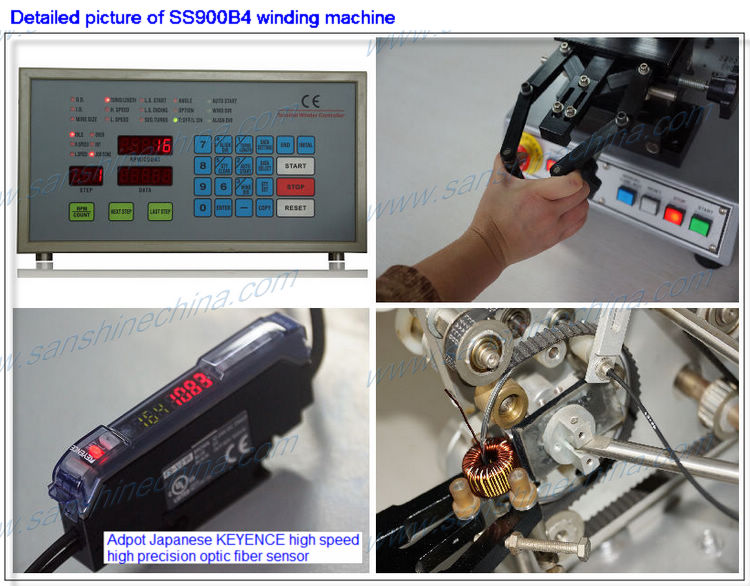

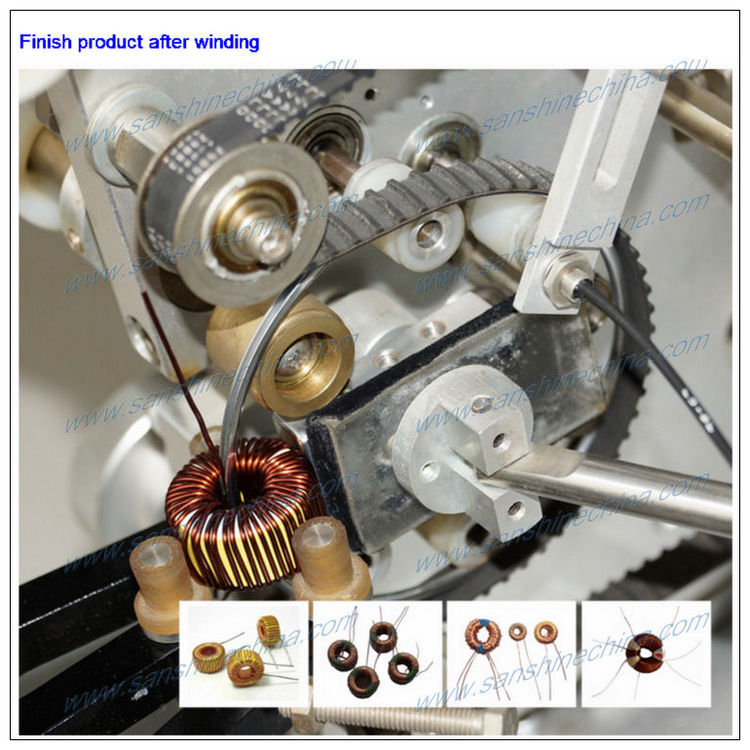

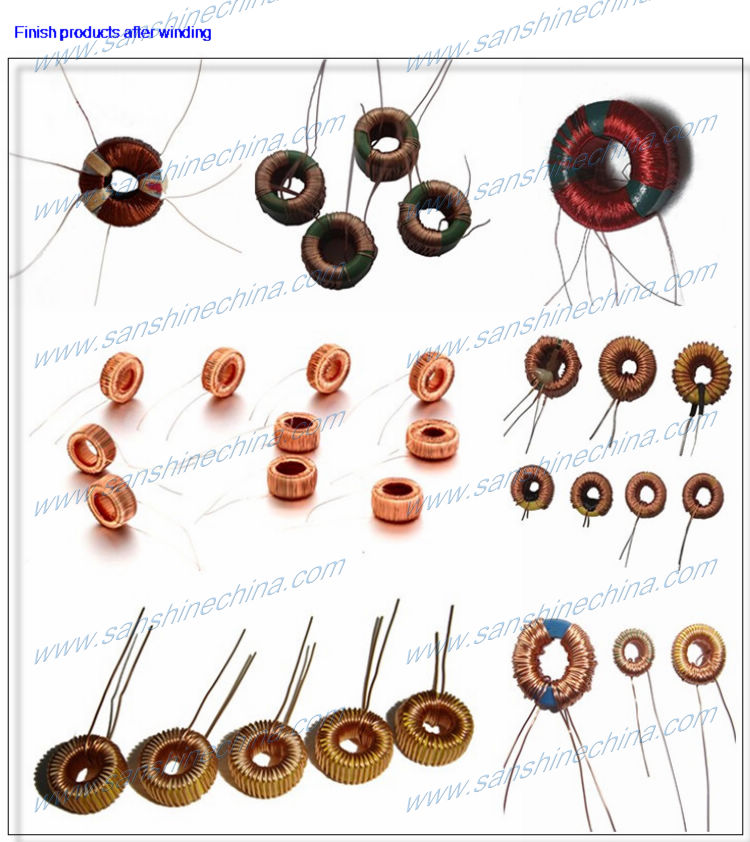

The 4inch belt type automatic toroid coil winding machine (SS900B4) adopts programmable precise CNC toroid controller. Adopts the belt type winding shuttle which used for winding the thick enamelled wire on the toroid core. The 4inch belt type automatic toroid coil winding machine (SS900B4, 4 inch winding head) is and accurately and reliability CNC toroid-winding machines. This toroid coil winding machine (SS900B4) be named thick wire toroid DC line filter coil winding machine. The 4inch belt type automatic toroid coil winding machine (SS900B4) is used for winding toroidal inductor, toroidal transformer, toroidal storage choke, toroidal coil, toroid choke coil, toroidal power inductors, thick wire toroid filter coil, toroidal power magnetics, toroidal line modem transformer, power factor corrector toroidal coil, etc. .

Features :

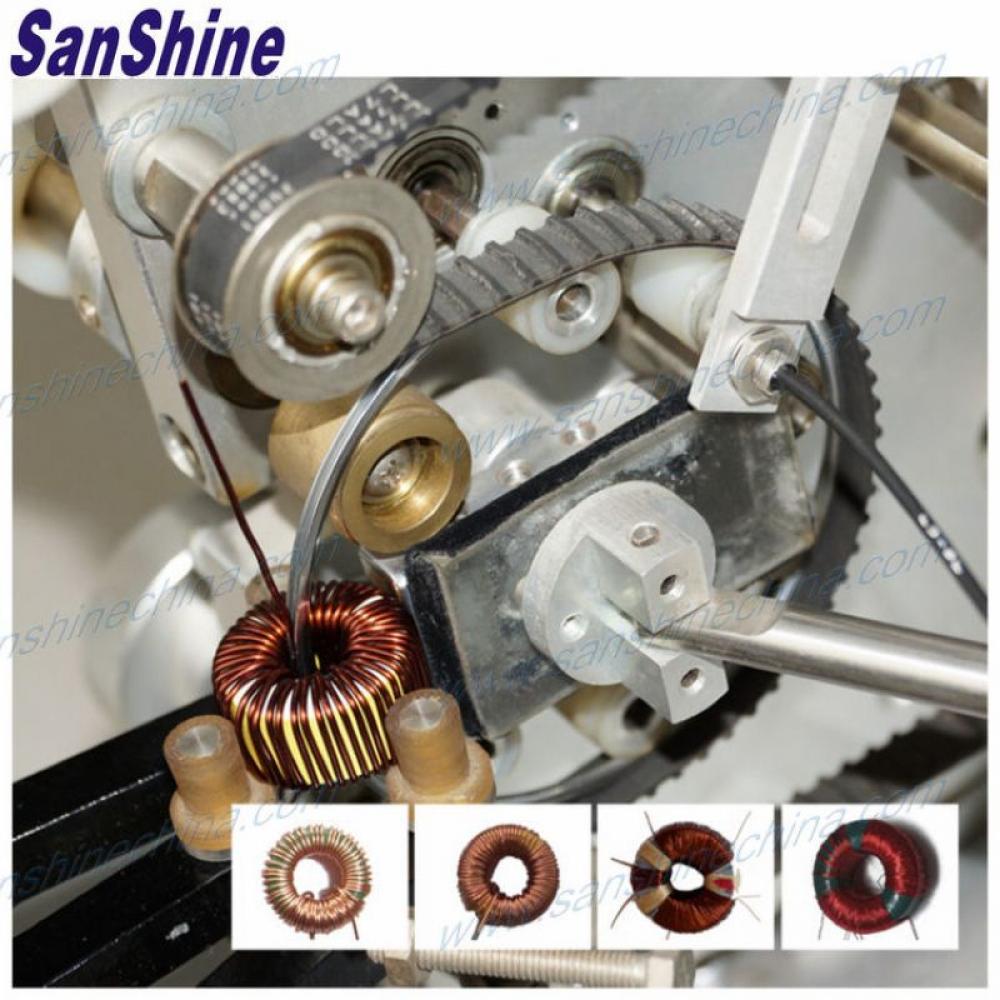

1. Collocate belt type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire diameter, turns, so that to reduce the cost. one set standard automatic toroid winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

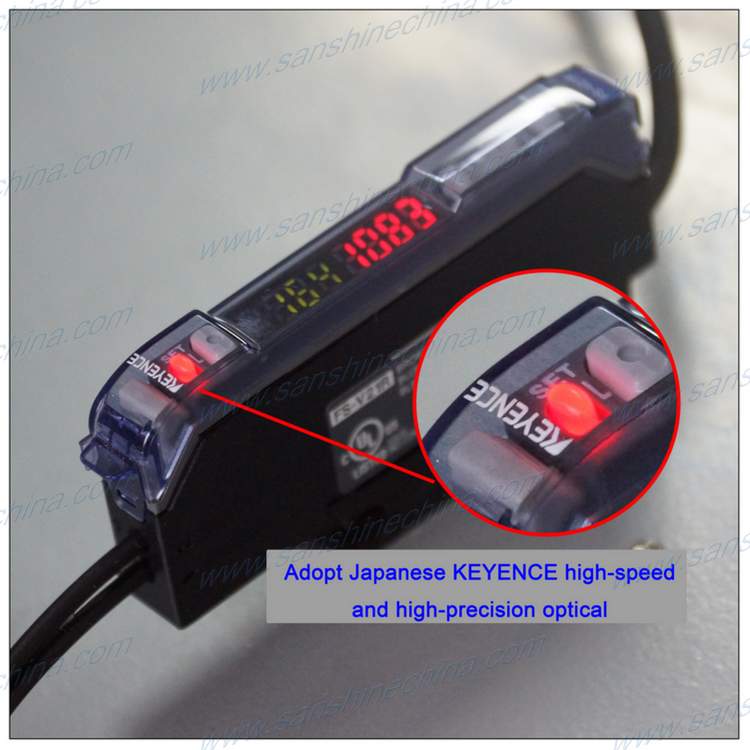

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification :

Copper wire diameter: 0.15~0.8mm(will be different by different machine model,different shuttle size).

Min. Finished ID: 3mm (will be different by different machine model,different shuttle size and coil height).

Finished OD range: 5~80mm(will be different by different machine model,different shuttle size and coil height. )

Max. Speed: 1200RPM

Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V /110V +10%, 50/60 Hz

Dimension: L60x36x60(cm)

Net weight: 40Kgs

Model

Universally matched shuttle model

Copper wire diameter range(mm)

Min. inside diameter of finished coil (mm)

Out side diameter of finished coil range (mm)

Height of finished coil range (mm)

SS900B2

1.2 1.4 1.6 1.8 2.0 or customized

0.07 ~0.25

2.0

5 ~ 16

3 ~8

SS900B3

1.4 1.6 1.8 2.0 2.5 or customized

0.07 ~0.25

2.5

5 ~16

3 ~8

SS900B4

2.5 2.8 3.0 3.5 4.5 or customized

0.15 ~0.8

3

5 ~60

3 ~25

SS900B6

3.5 5.0 6.3 or customized

0.3 ~1.2

6

10 ~80

5 ~45

SS900B8

8 10 12 15 or customized

0.35 ~1.4

12

20 ~150

8 ~80


How to select the best suited automatic toroid coil winding machine for your toroid coil?

Tell us your toroidal coil of data as below please:

1. toroid core outside diameter before winding?

2. toroid core inside diameter before winding?

3. toroid core height before winding?

4. how many windings on this core?

5. how many turns of each winding?

6. how about the copper wire diameter of each winding?

7. provide pictures of product which is better.
