Single axis programmable linear coil winding machine controller

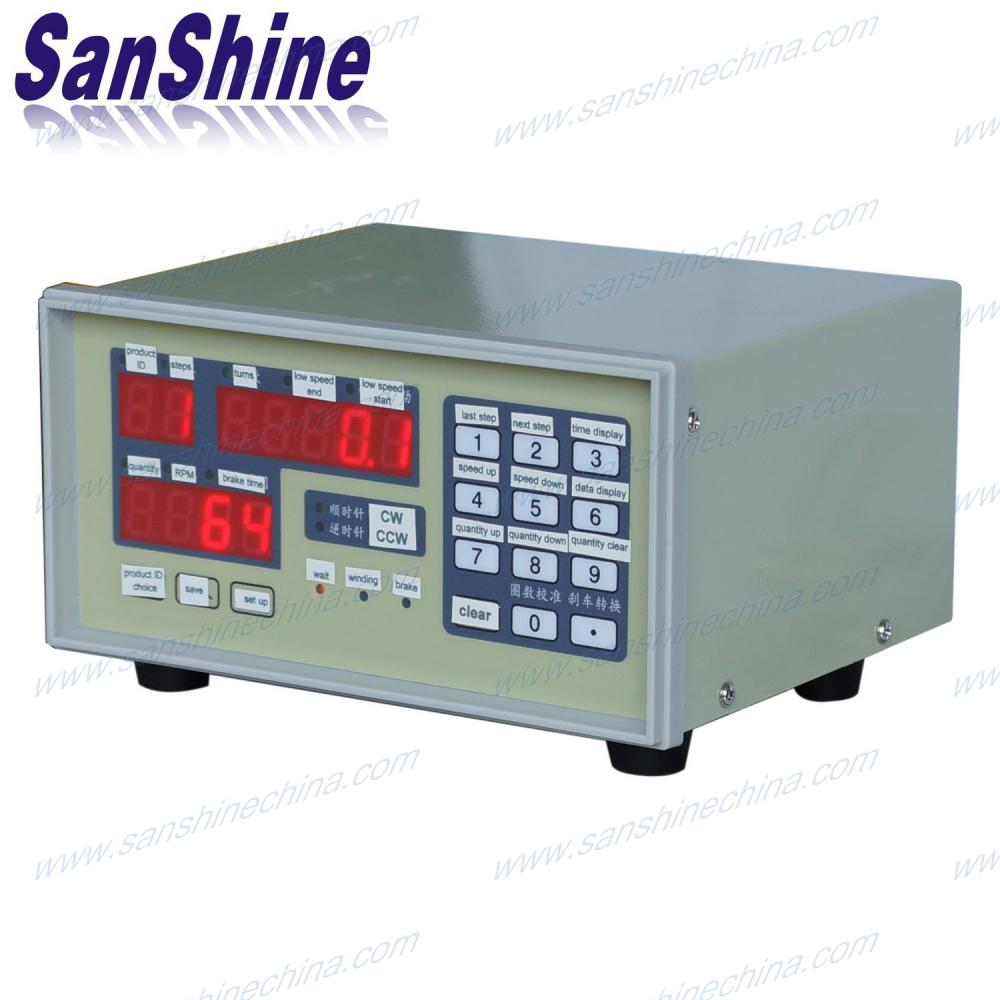

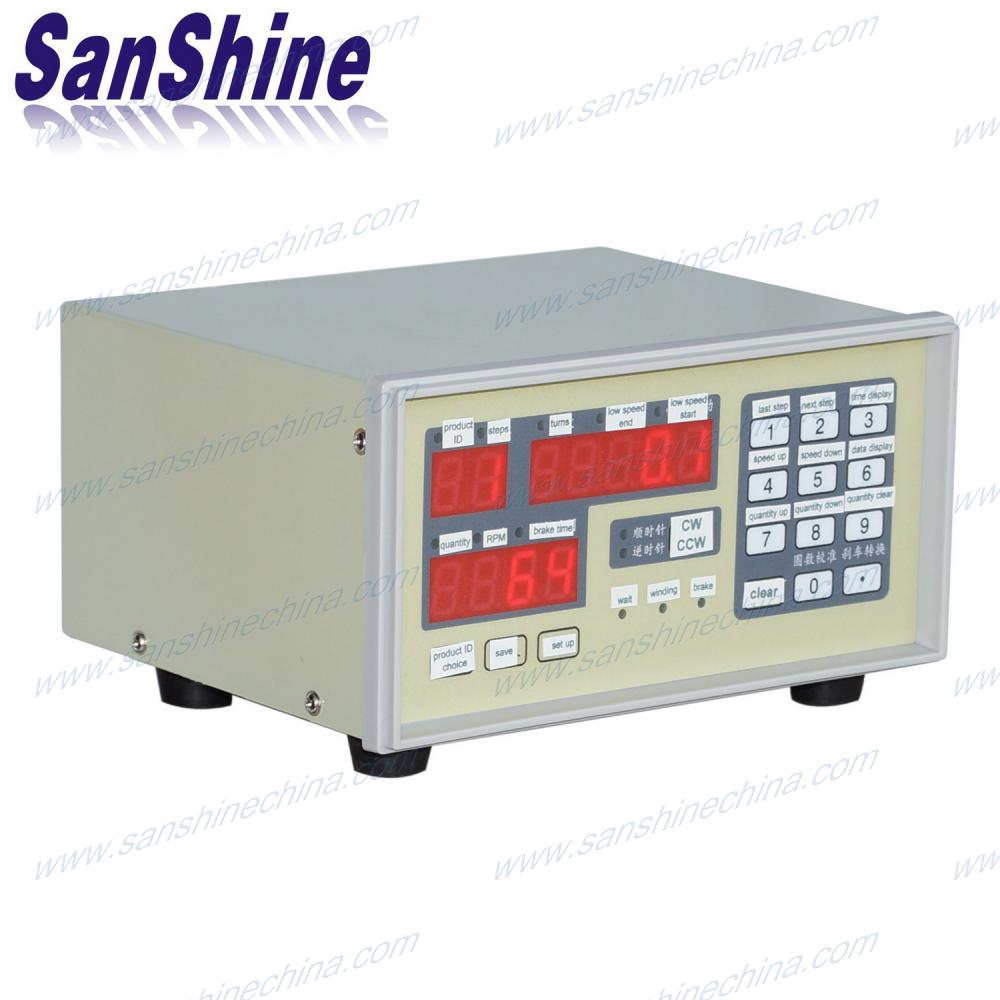

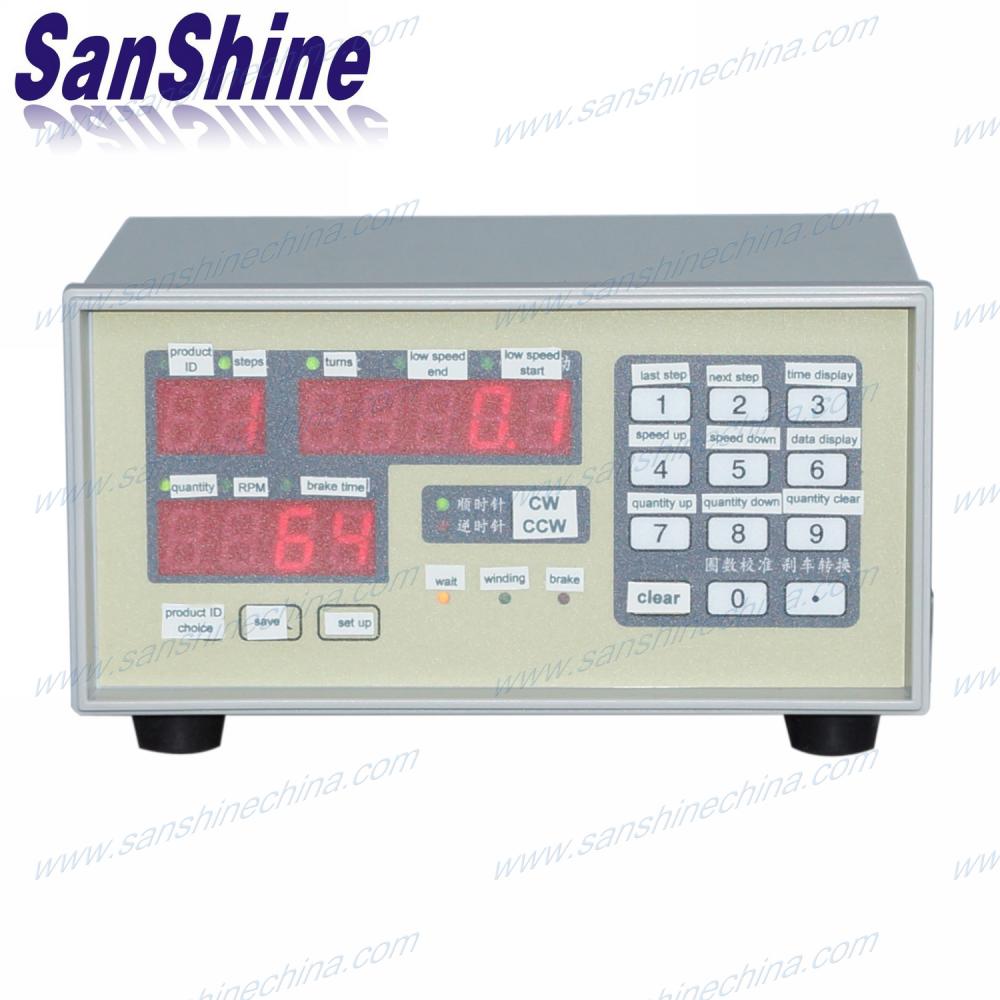

The single axis programmable linear coil winding machine controller (SS100LWC) is a precise digital type programmable linear coil winding machine controlling system without the wire spreading function. This controller can drive the DC brushless winding spindle winding motor.
  • Item NO.:

    SS100LWC
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray and light green
contact now
Description

Prouduct name : Single axis programmable linear coil winding machine controller

Description :

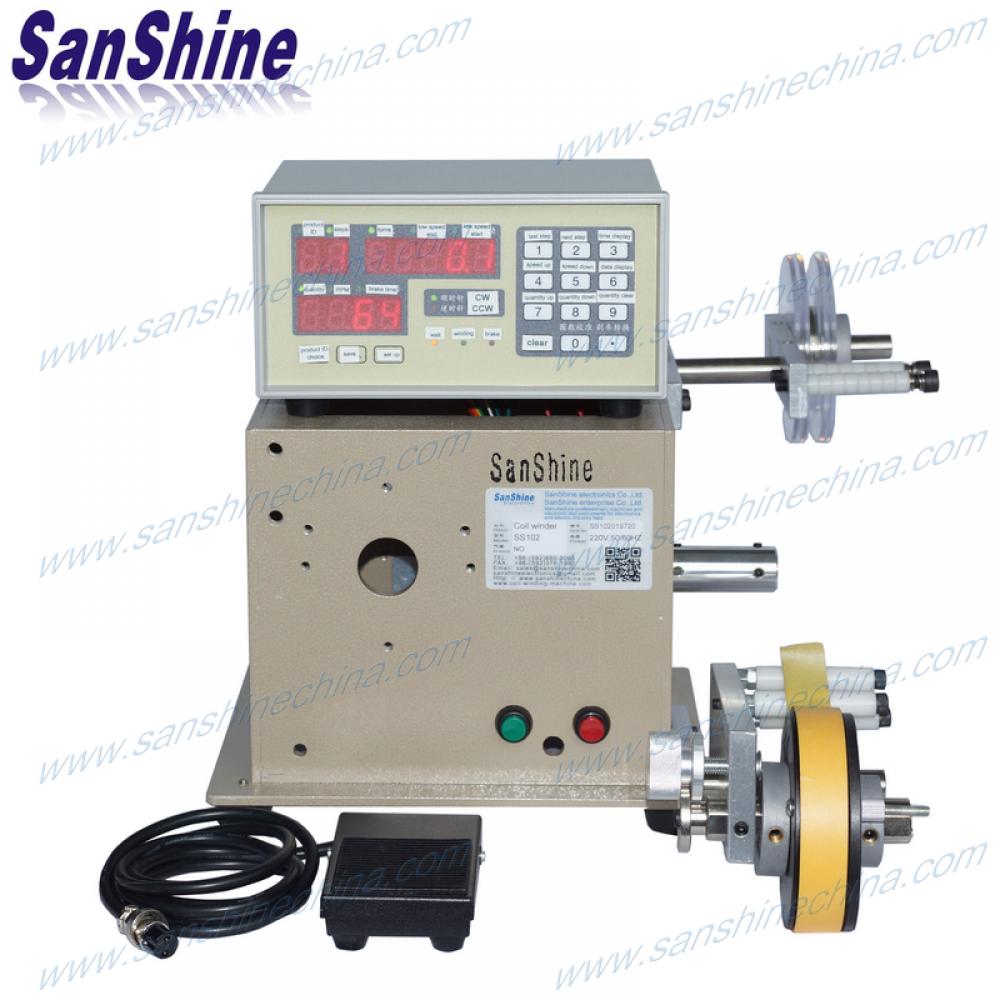

The single axis programmable linear coil winding machine controller (SS100LWC) is a precise digital type programmable linear coil winding machine controlling system without the wire spreading function. This controller can drive the DC brushless winding spindle winding motor. This precise winding controlling system be used for widely for the linear coils winding system. Like as : The electric electronic wire coil winding machine, textile yarn thread winding machine, wire rewinding machine, wire rerolling machine and wire recoiling machine, etc. .

Feature :

1. Microprocessor design, easy for program-setting.

2. Winding machine operator need hold wire to spread by manually. High speed precise winding.

3. Can drive DC electricmagnetic braker and DC electricmagnetic valve directly.

4. Can drive the DC brushless winding spindle winding motor directly without connect the external motor drivers.

5. Foot-switch connection for better efficiency.

6. Winding parameters and options can be set and programmable easily.

Specification :

Model winding spindle motor type driving directly capacity winding spindle speed(RPM) wire spreading motor controller power source controller size(mm) controller language
SS100LWC DC brushless 200W 100~8000 NO 220V / 110V±10% single phase 210*140*100 English or Chinese
