Mirror surface tungsten carbide motor coil winding nozzle

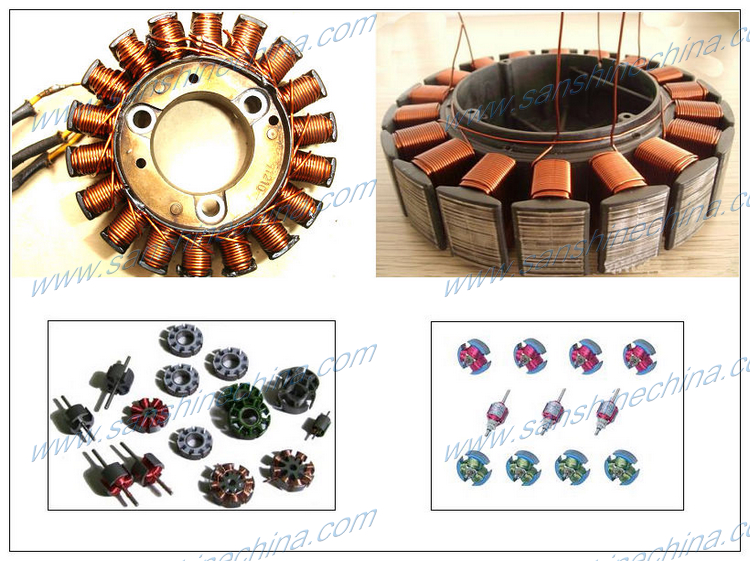

The mirror surface tungsten carbide motor coil winding nozzle is used in coil winding machines to protect the enamel insulation film of copper wire and guide the wire to wind on the stator and rotor, on the bobbin, on the pins for winding motors, generators.
  • Item NO.:

    Size by user request
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White
contact now
Description

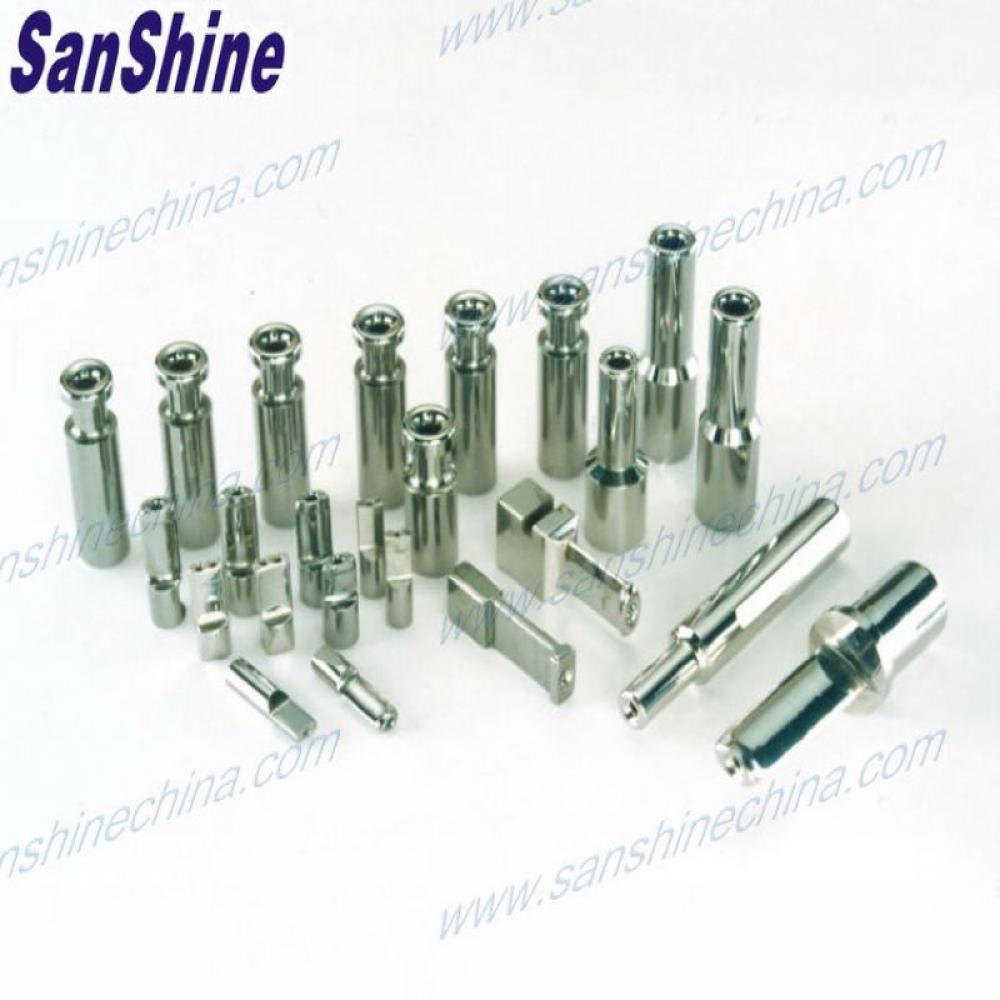

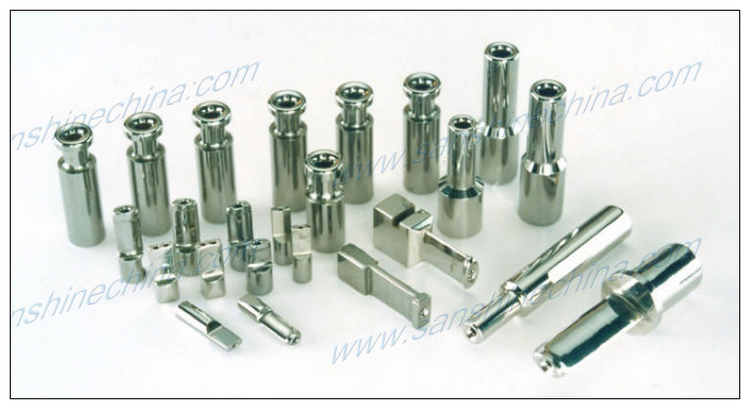

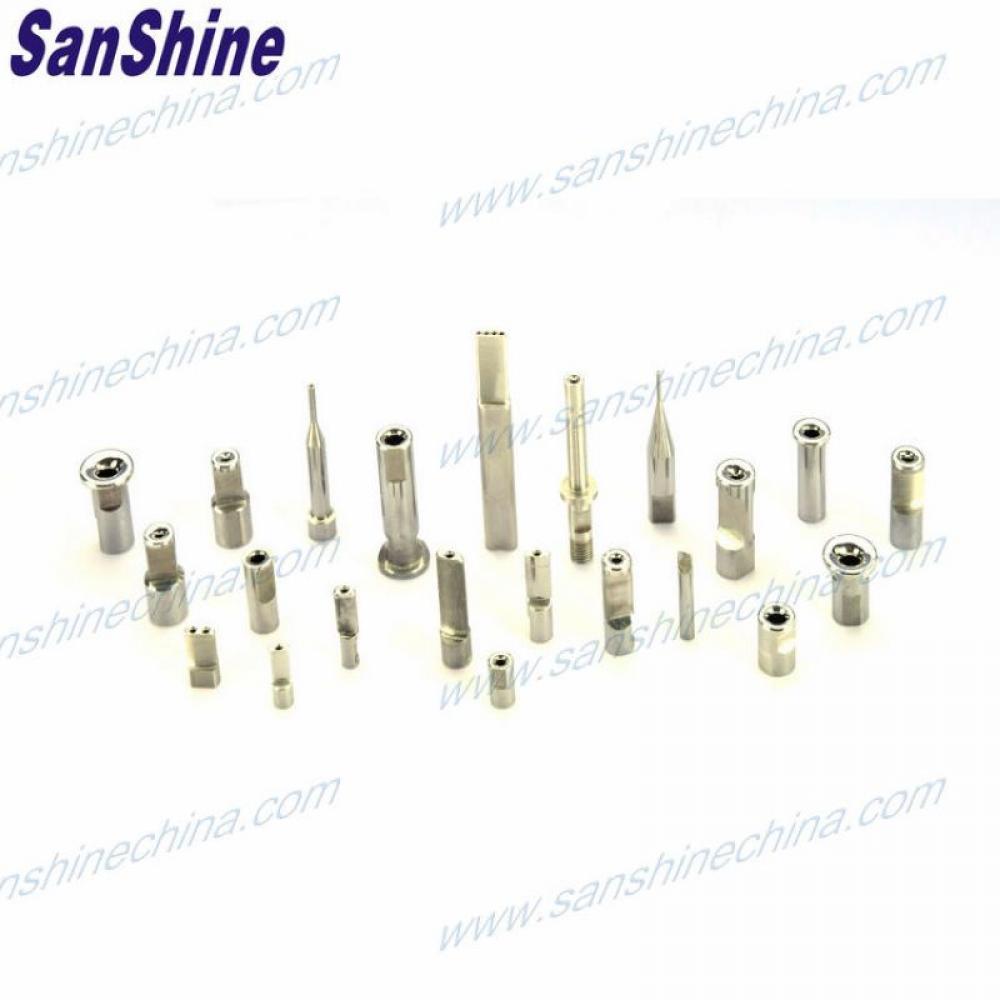

Product name : Mirror surface tungsten carbide motor coil winding nozzle

servo motor coil winding nozzle

motorcycle generator coil winding nozzle

generator winding nozzle

DC motor coil winding needle

Description :

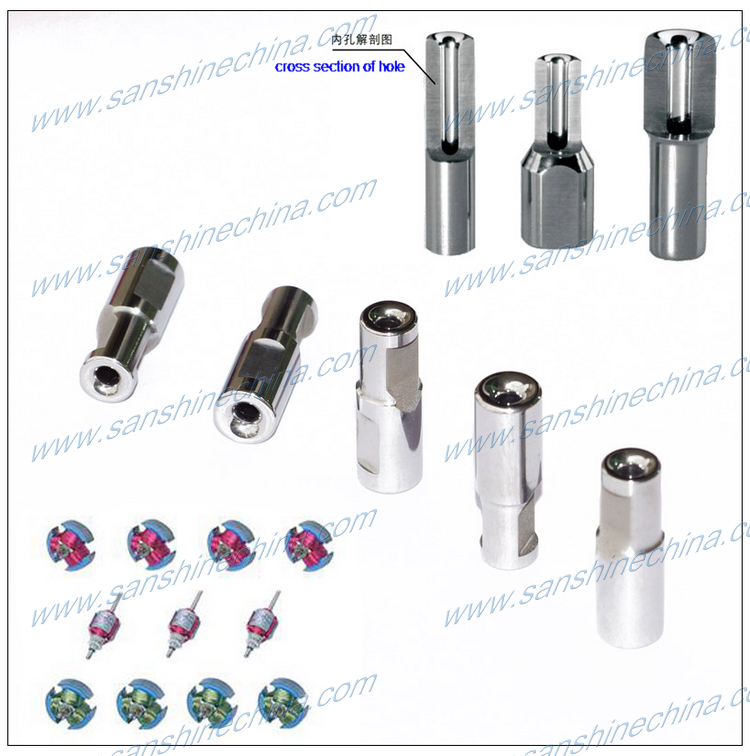

The mirror surface tungsten carbide motor coil winding nozzle is used in coil winding machines to protect the enamel insulation film and guide the wire to wind on the stator, rotor, the bobbin, and on the pins for winding motors and generators. This mirror surface tungsten carbide motor coil winding nozzle is called motor stator coil winding guide tube also. This tungsten carbide motor coil winding nozzle is best choice for winding motors, generator and reactor, etc..

Features :

1.High Wear Resistance

This is assured by the choice of materials for wear elements possessing a minimum hardness in excess of Vickers 1,000 (HRC 70).

2.Scratch-Proofing

Eliminate wire insulation film damage, low friction resistance, stable wire tension. the wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 – 4 micro inches Ra or better, material permit.

3.Straightness and Stiffness

Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating ?. In plain terms, the wire should exit from the nozzle concentric to the locating ? to within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm.

4.Precise Exit Radii

Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right.

Specification :

Be made according to dimensions drawing.

Measurements :

Customize available by requested in dimensions drawing, outside diameter is governed by nozzle wall thickness. The measurements drawing denpend on confirm your nozzles measurements according to your winding machine and coil products or your nozzle samples.
