6inch slider type automatic toroid coil winding machine

The 6 Inch slider type automatic toroid coil winding machine (SS900S6, 6 inch winding head) is used for winding the fine wire coils on the toroidal core(about core OD 60mm). like as toroid transformers, toroid inductors and so on. This toroid coil winding machine (SS900S6) is named micro metal toroid core winding machine also.
  • Item NO.:

    SS900S6
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

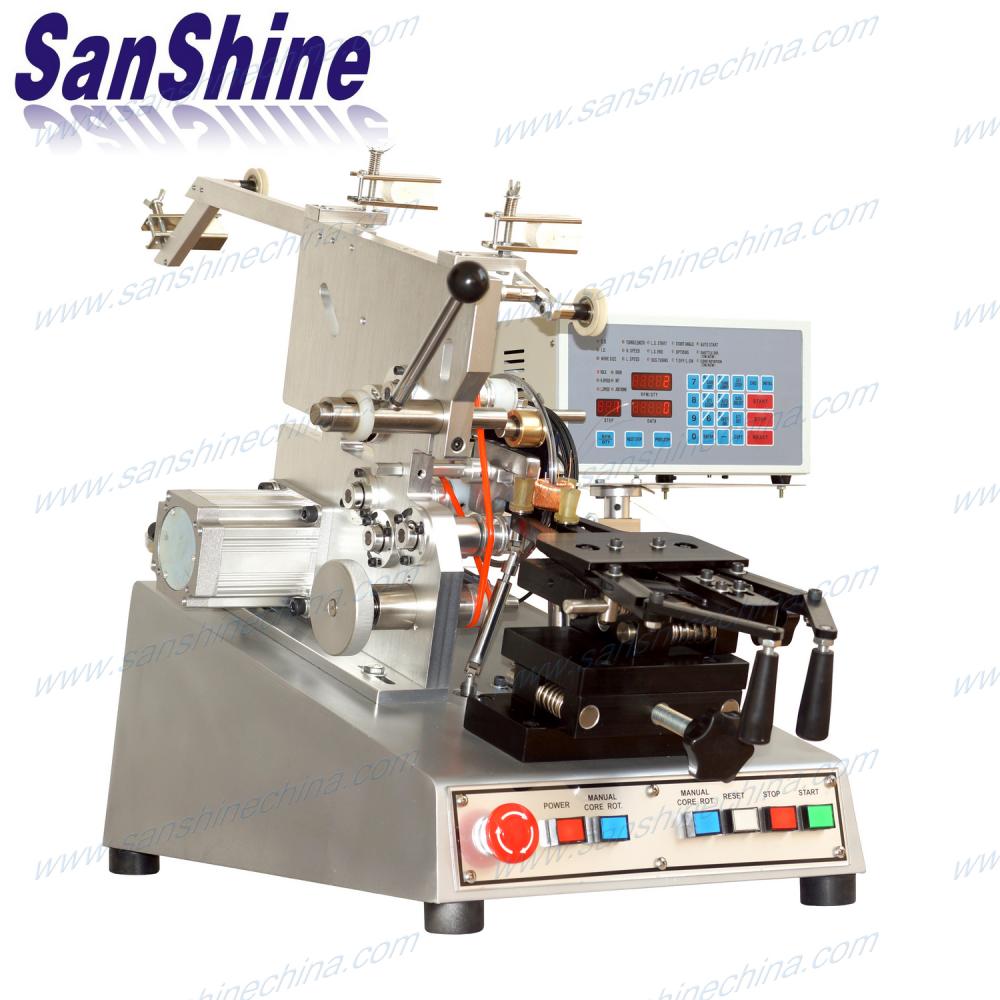

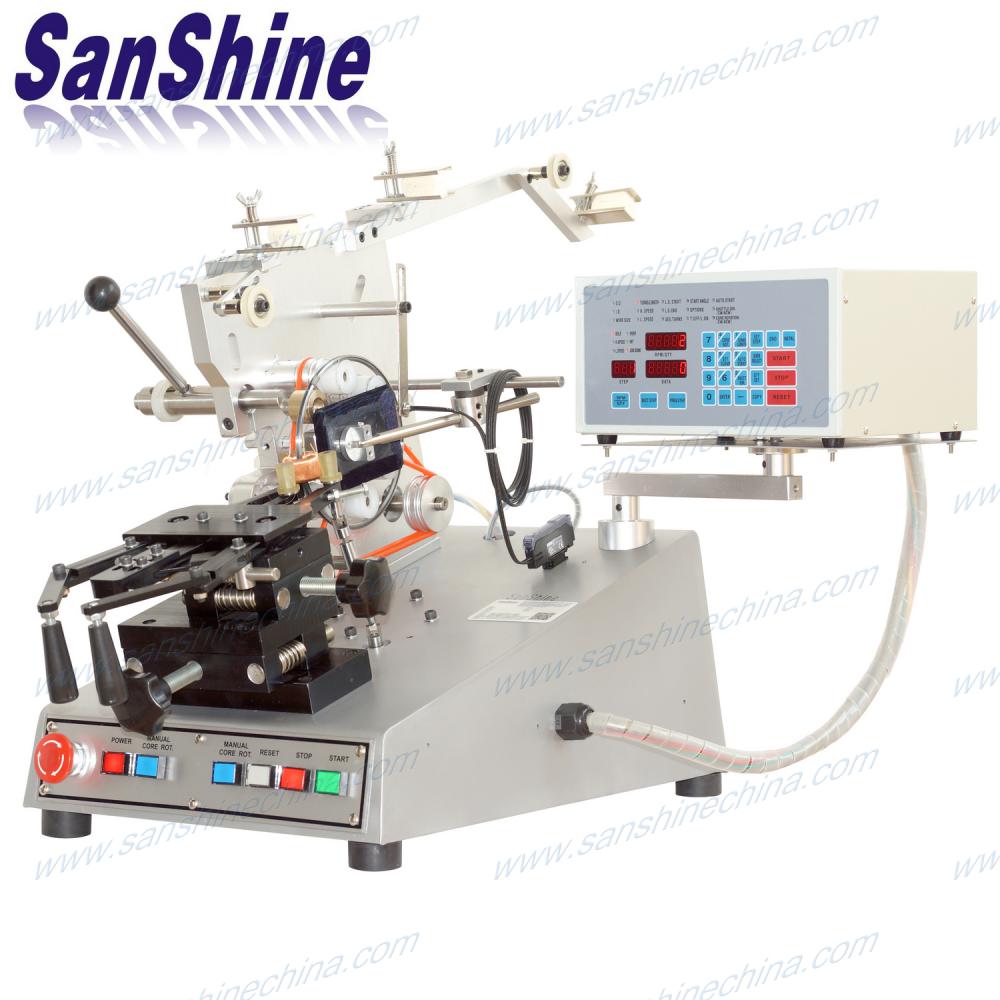

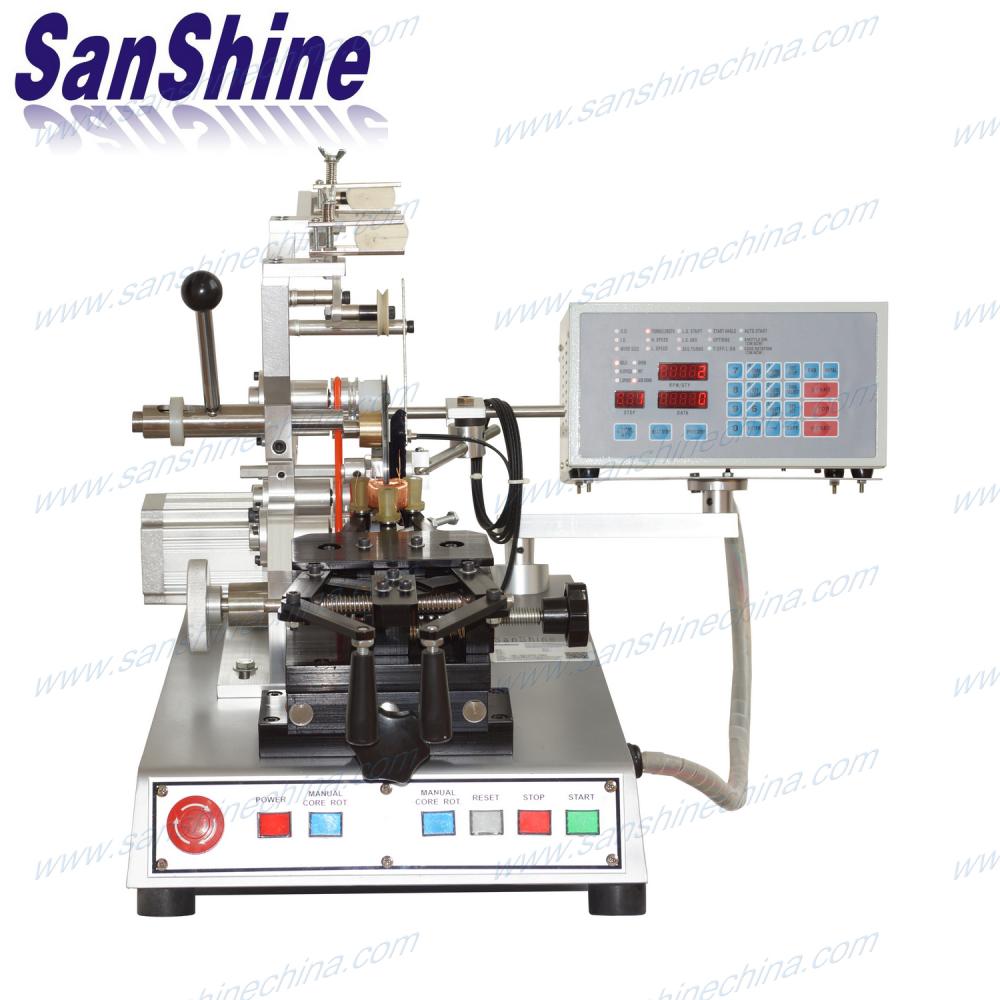

Product name : 6inch slider type automatic toroid coil winding machine (SS900S6)


torquer stator toroid coil winding machine

torque motor winding machine

angle torque motor winding machine

high impedance toroid inductor winding machine

Description :

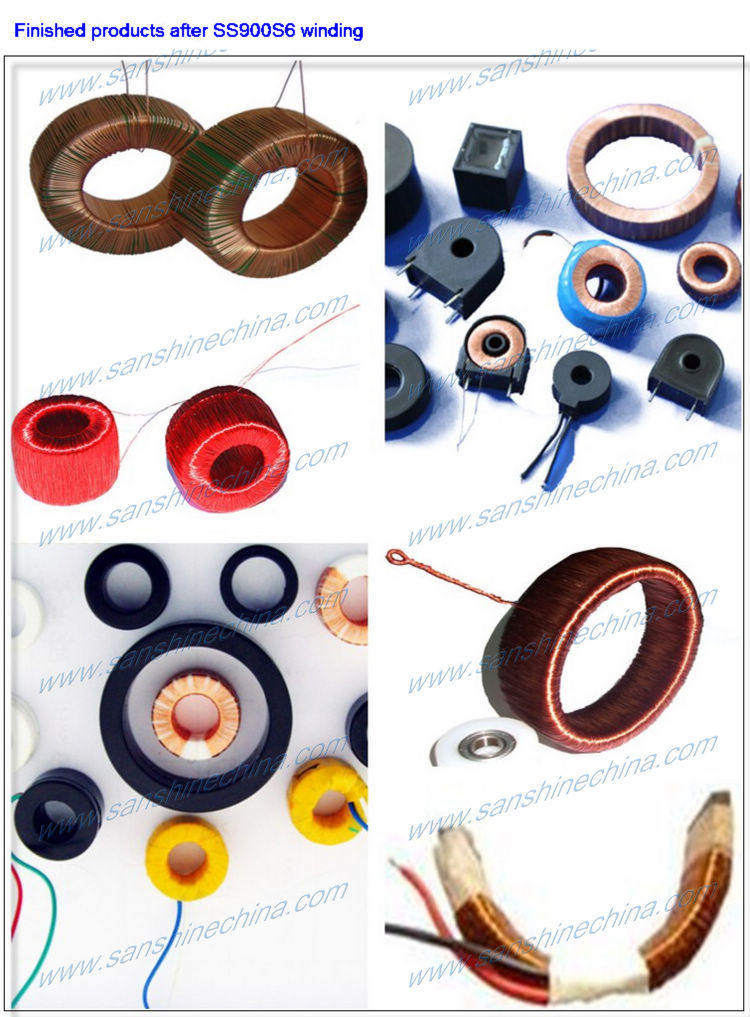

The 6 inch slider type automatic toroid coil winding machine (SS900S6, 6 inch winding head) is used for winding fine enamelled wire toroidal coils. The 6 inch slider type automatic toroid coil winding machine (SS900S6) adopts programmable CNC toroid controller, Adopts winding shuttle with slider. Shuttle and slider take the fine enamel wire and wind on the toroidal core in orderly according to user's requirements. It's an accurately and reliability programmable precise toroid coil winding machine. The 6 inch slider type automatic toroid coil winding machine (SS900S6) is used for winding toroid inductor, toroid transformer, toroid current transformer, toroid current sensor, toroid coil, toroid chock coil, power magnetics, small step motor coil, converter inductors, wate metter current toroidal sensors, etc. . The 6inch slider type automatic toroid coil winding machine (SS900S6) be also know as torquer motor stator coil winding machine and toroid angle motor winding machine also.

Features :

1. Collocate slider type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire diameter, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one piece winding shuttle only, other sizes winding shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

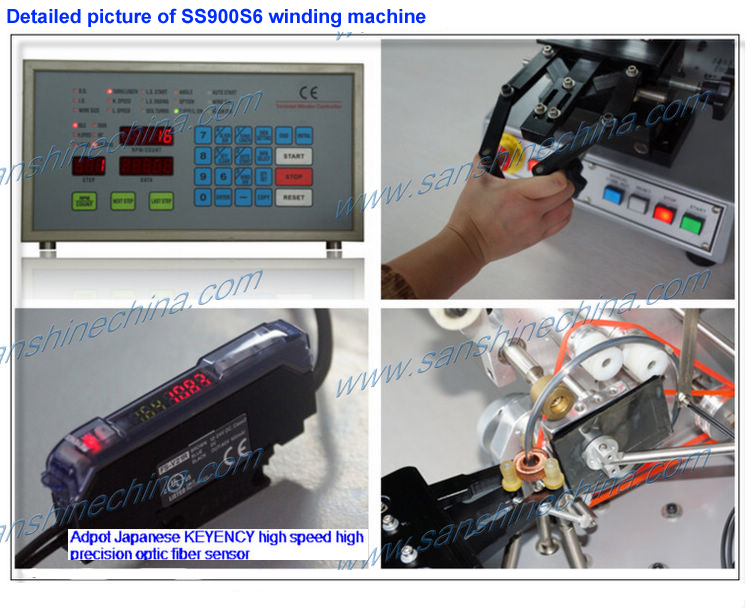

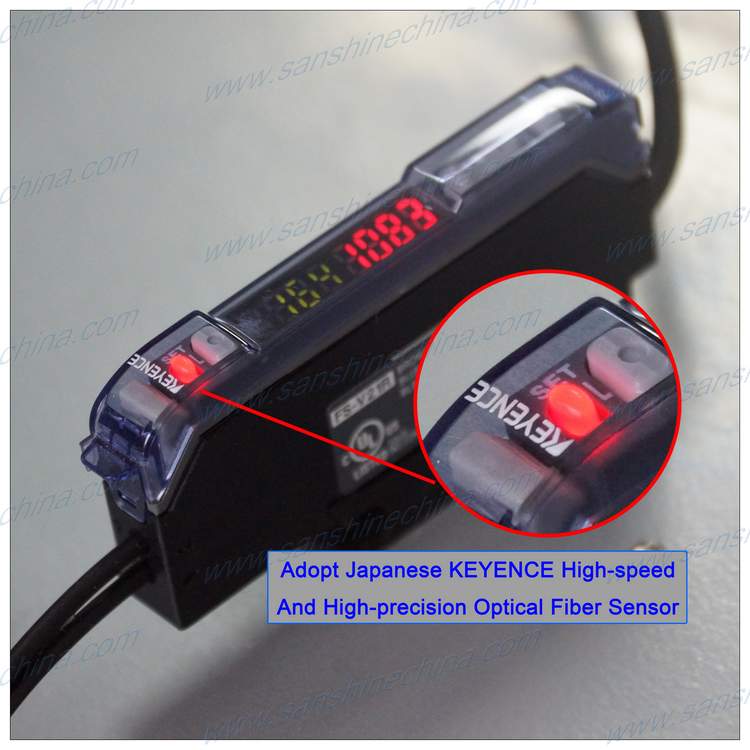

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification :

Copper wire diameter: 0.05 ~0.6 mm (will be different by different model, different shuttle size and coil height. )

Min. Finished ID: 4.5 mm (will be different by different model, different shuttle size, wire diameter, turns, core size, and coil height. )

Finished OD range: 5~150 mm (will be different by different model, different shuttle size and coil height. )

Max. Speed: 1800RPM

Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V /110V +10%, 50/60 Hz

Dimension: L60x36x64(cm)

Net weight: 40 ~ 42 Kgs.

Model

Universally matched shuttle model

Copper wire diameter range(mm)

Min. inside diameter of finished coil (mm)

Out side diameter of finished coil range (mm)

Height of finished coil range (mm)

SS900S4

2.6 3.0 3.5 or customized

0.05 ~0.3

4.5

5 ~60

3 ~25

SS900S6

3.5 5.0 6.3 or customized

0.08 ~0.35

7

10 ~80

5 ~45

SS900S8

8 10 12 15 or customized

0.3 ~0.6

15

20 ~150

8 ~80


How to select the best suited automatic toroid coil winding machine for your toroid coil?

Tell us your toroidal coil of data as below please:

1. toroid core outside diameter before winding?

2. toroid core inside diameter before winding?

3. toroid core height before winding?

4. how many windings on this core?

5. how many turns of each winding?

6. how about the copper wire diameter of each winding?

7. provide pictures of product which is better.
