Transformer core coil automatic taping machine

Transformer core coil automatic taping machine Transformer core coil automatic taping machine Transformer core coil automatic taping machine Transformer core coil automatic taping machine

Transformer core coil automatic taping machine

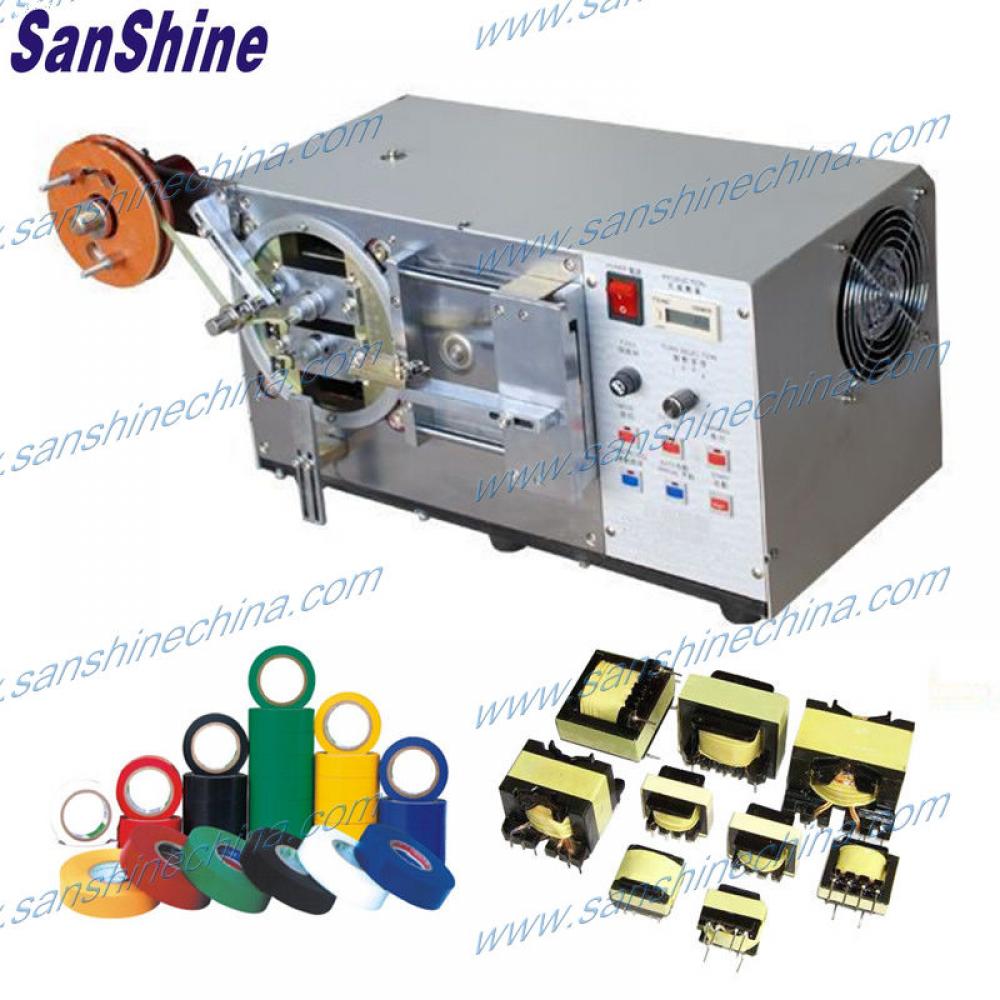

The transformer core coil automatic taping machine (SS-TP01) is used for wraping the bonding tape or insulation adhesive tape on the core of transformers, on core of inductors, on the coils. this tape taping machine is called bobbin tape taping machine and relay coil insulation tape taping machine also.

  • Item NO.:

    SS-TP01

  • Product Orgin:

    China

  • Brand:

    SanShine

  • Shipping Port:

    XIAMEN,CHINA

  • Color:

    Beige
contact now
Description

Product name ：Transformer core coil automatic taping machine (SS-TP01)



inductor coil taping machine

insulation tape winding machine

relay tape taping machine

Description :

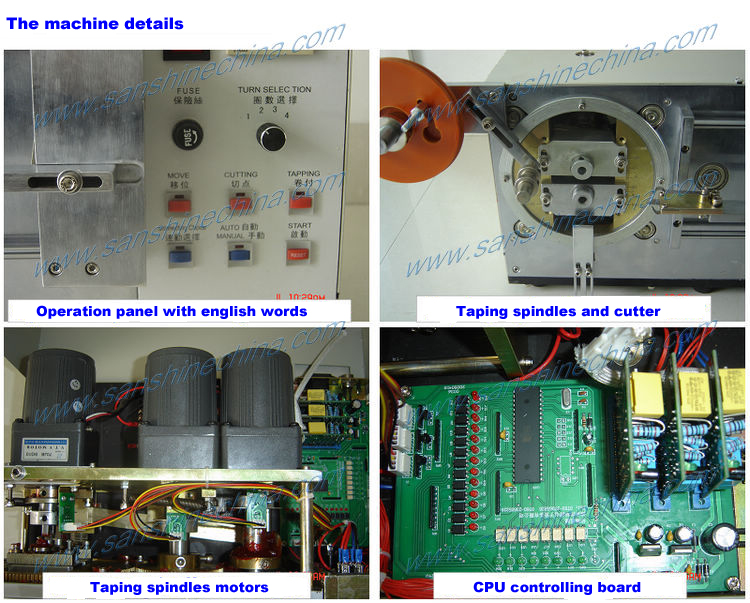

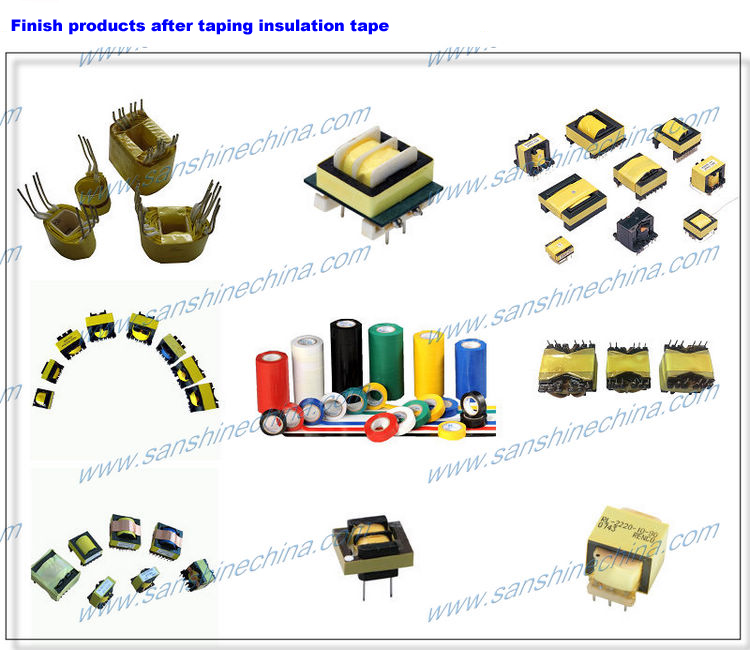

The Transformer core coil automatic taping machine (SS-TP01) is used for wrapping the adhesive insulation tape on the core of transformers, on core of inductors so that can fix the EI core or EE core or ET core within the bobbin of transformer or inductor. And used for taping adhesive insulation tape for transformer coils, inductor coils, relay coils, ignition coils, contactor coils, valve coils, solenoid coils etc. . This tape wrapping machine is named electromagnetic valve coil insulation tape taping machine, transformer core insulation bonding tape taping machine and solenoid valve coil insulation tape taping machine also. This tape taping equipment can wrap tape, stick tape, cut tape and download some products automatically. Easy to operate.

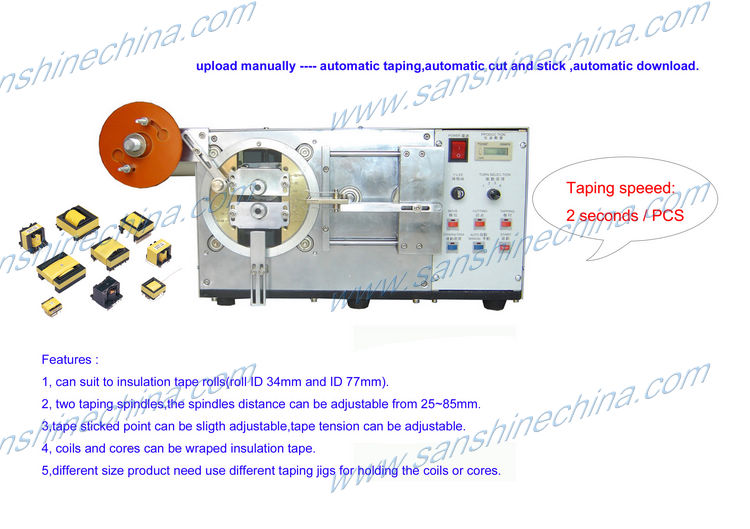

Specifications :

1. Power source: AC 220V, 50/60Hz, single phase.

2. Machine dimension: 350(L)*580(W)*300(H)mm.

3. Net weight: About 45Kgs.

4. Working speed: 2 seconds /PCS

5. Taping axis(spindles) Qty.: 2 axises.

6. Center distance of the spindles: Max. 81mm.

7. Suitable products size like as model: EI 8 to EI 66(depend on different fixtures and bobbin shape).

Related Tags :

transformer taping machine coil insulation tape taping machine automatic tape taping machine
