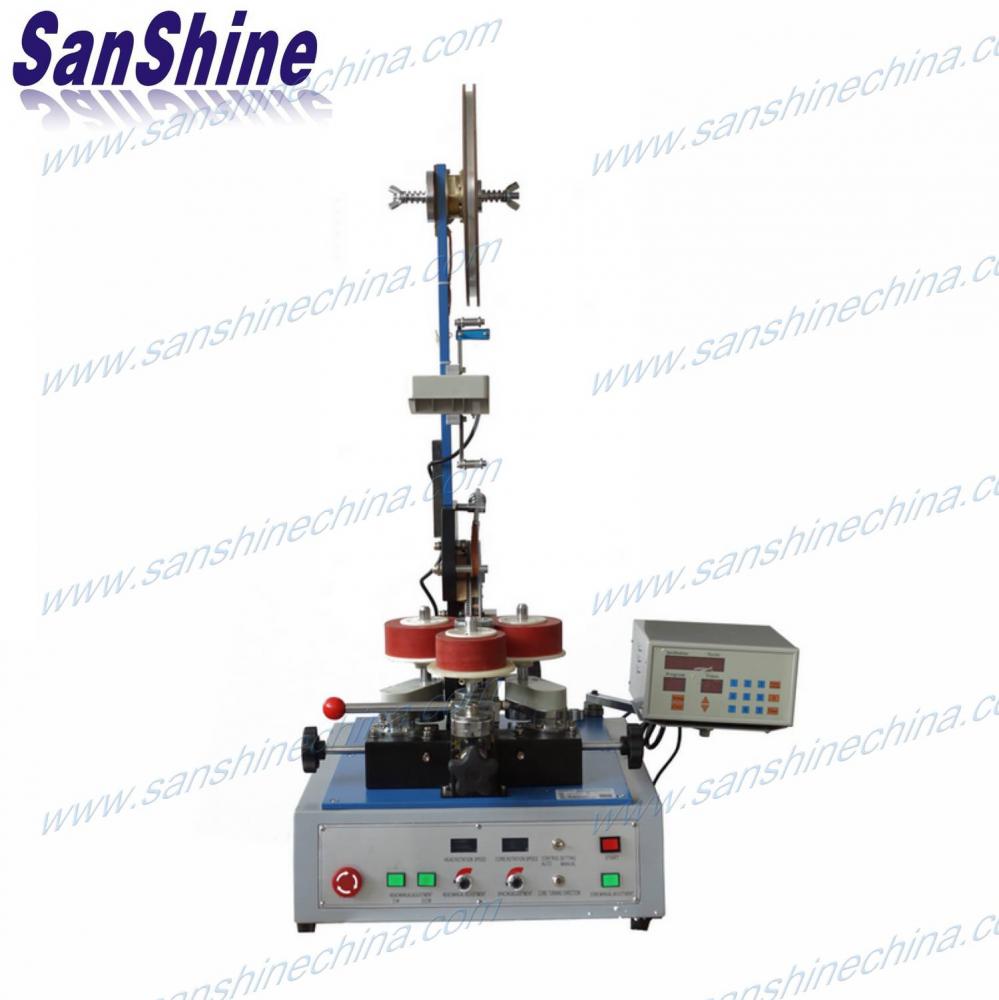

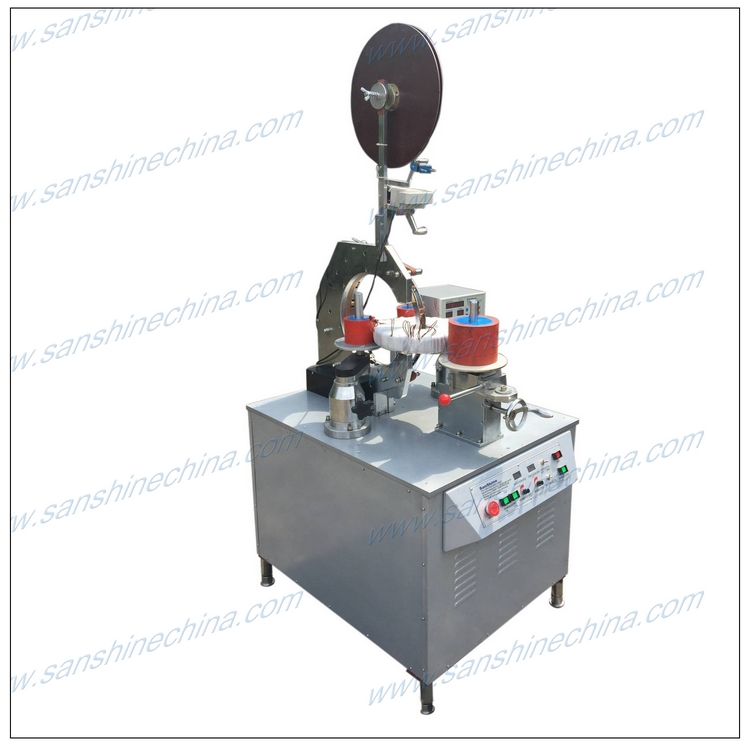

programable automatic big toroid core coil taping machine

The automatic big toroid core coil taping machine (SS300T series) is used for winding the insulation tape or film on the toroid core and the toroid coil. This toroid core coil tape taping machine be named ferrite toroidal core tape taping machine and toroidal coil tape taping machine also.
  • Item NO.:

    SS300T series
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray and blue
contact now
Description

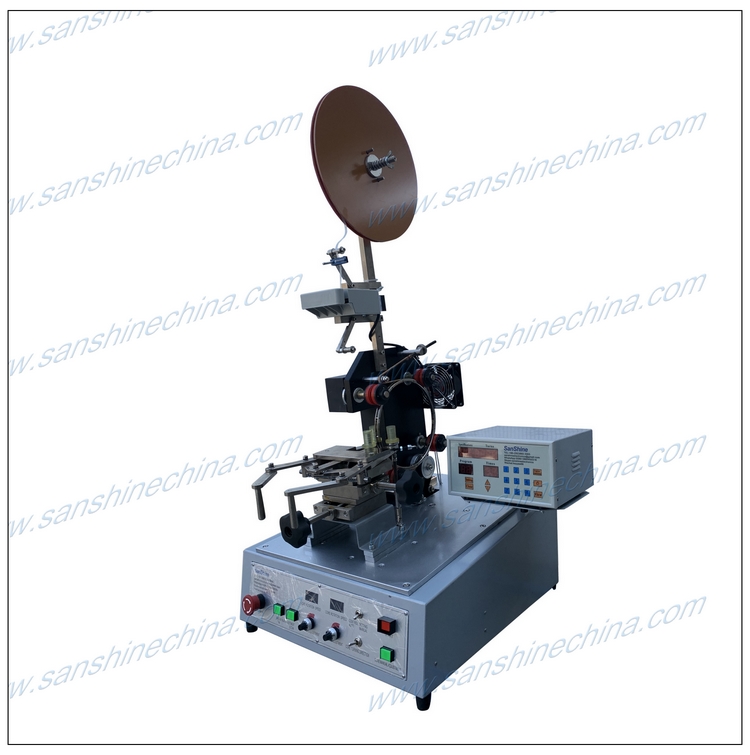

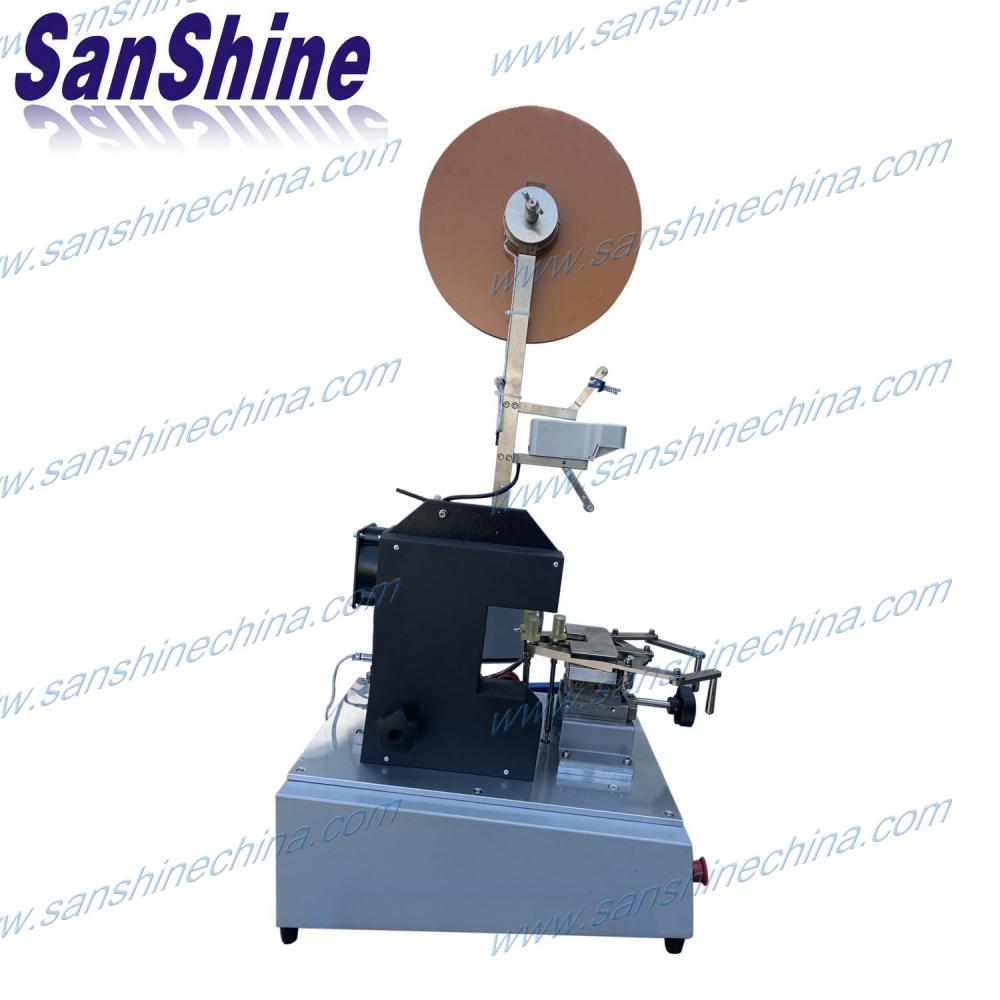

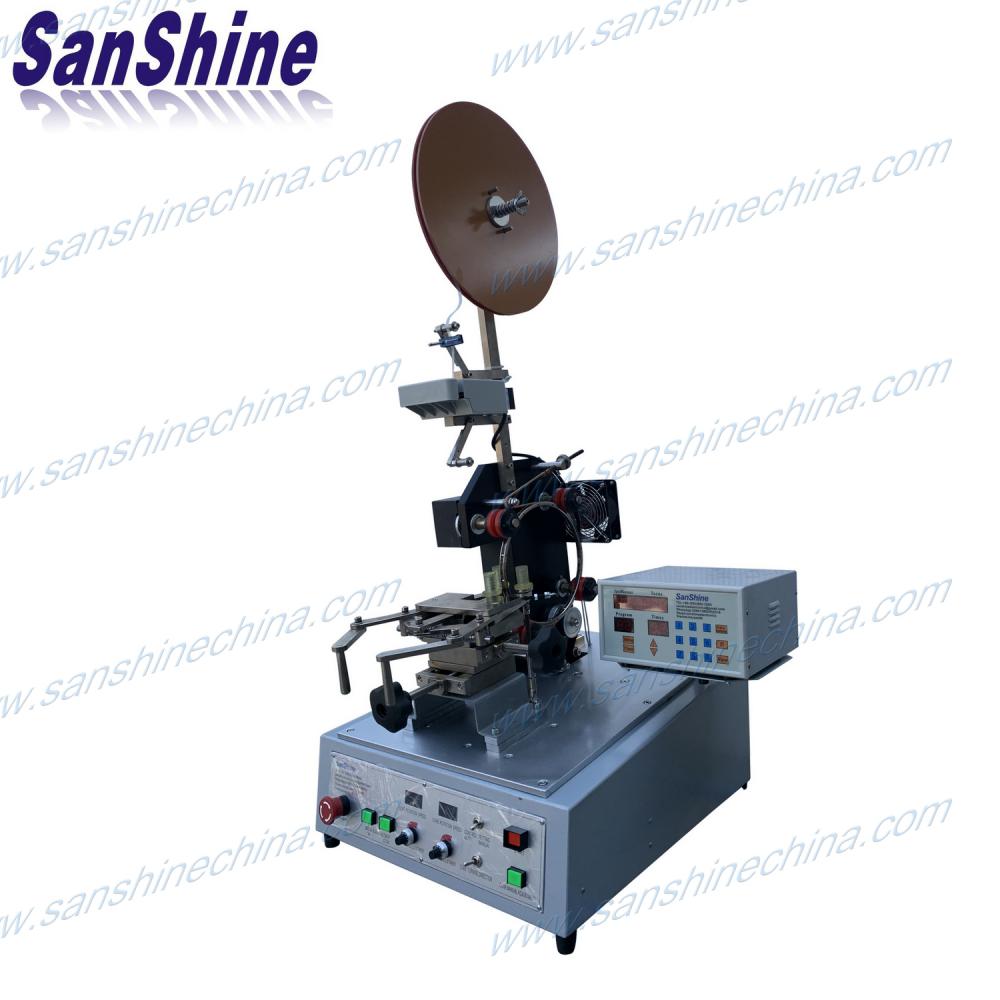

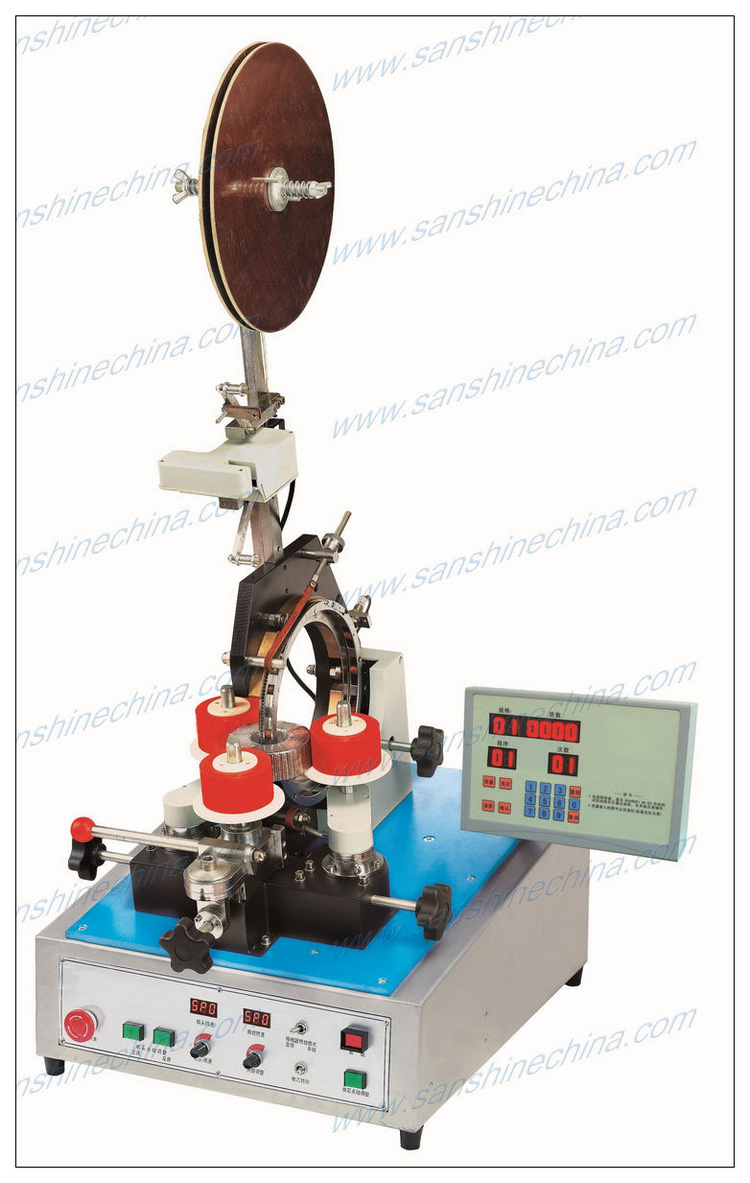

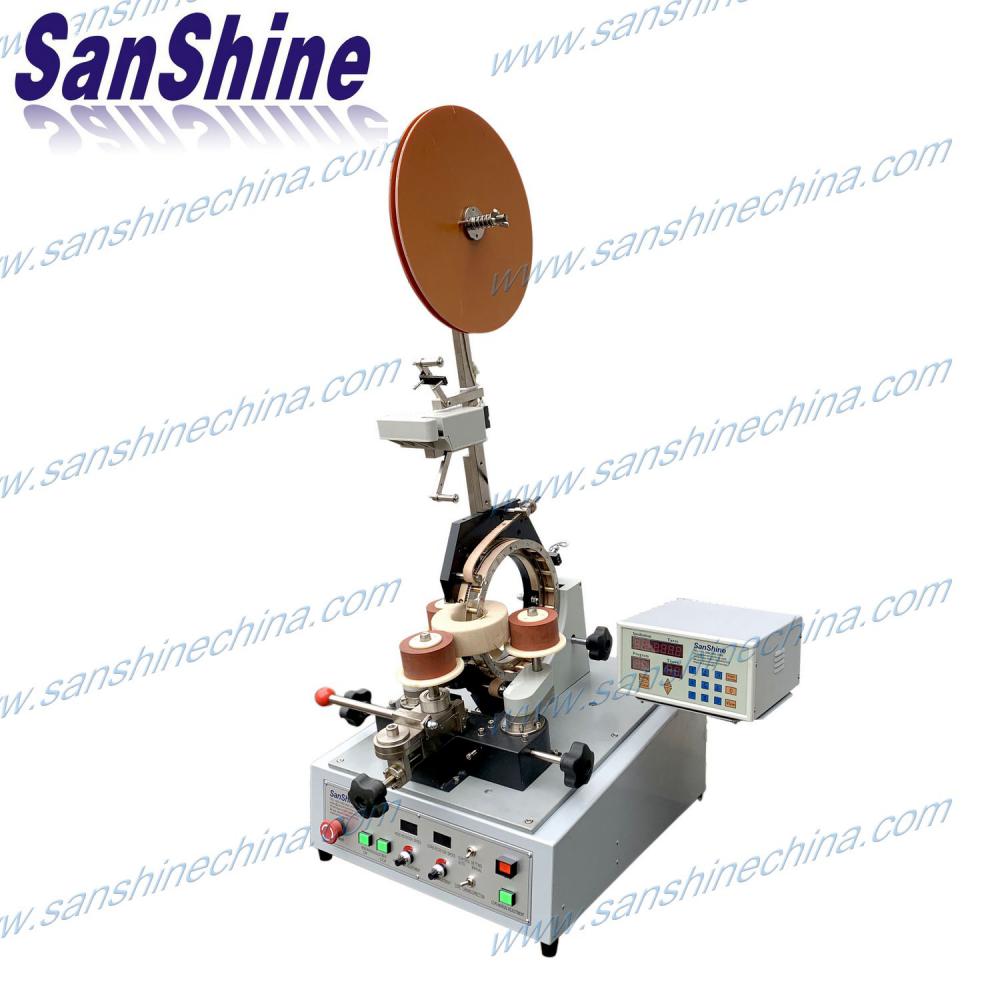

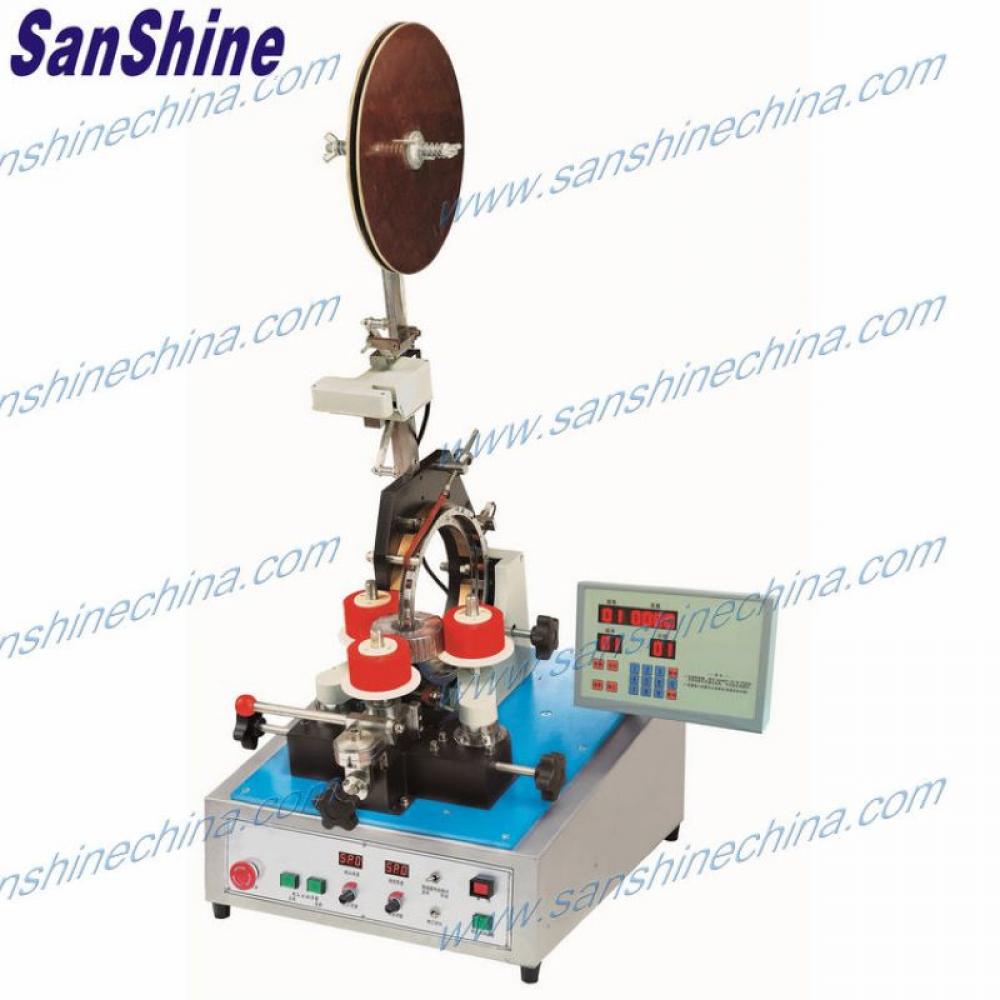

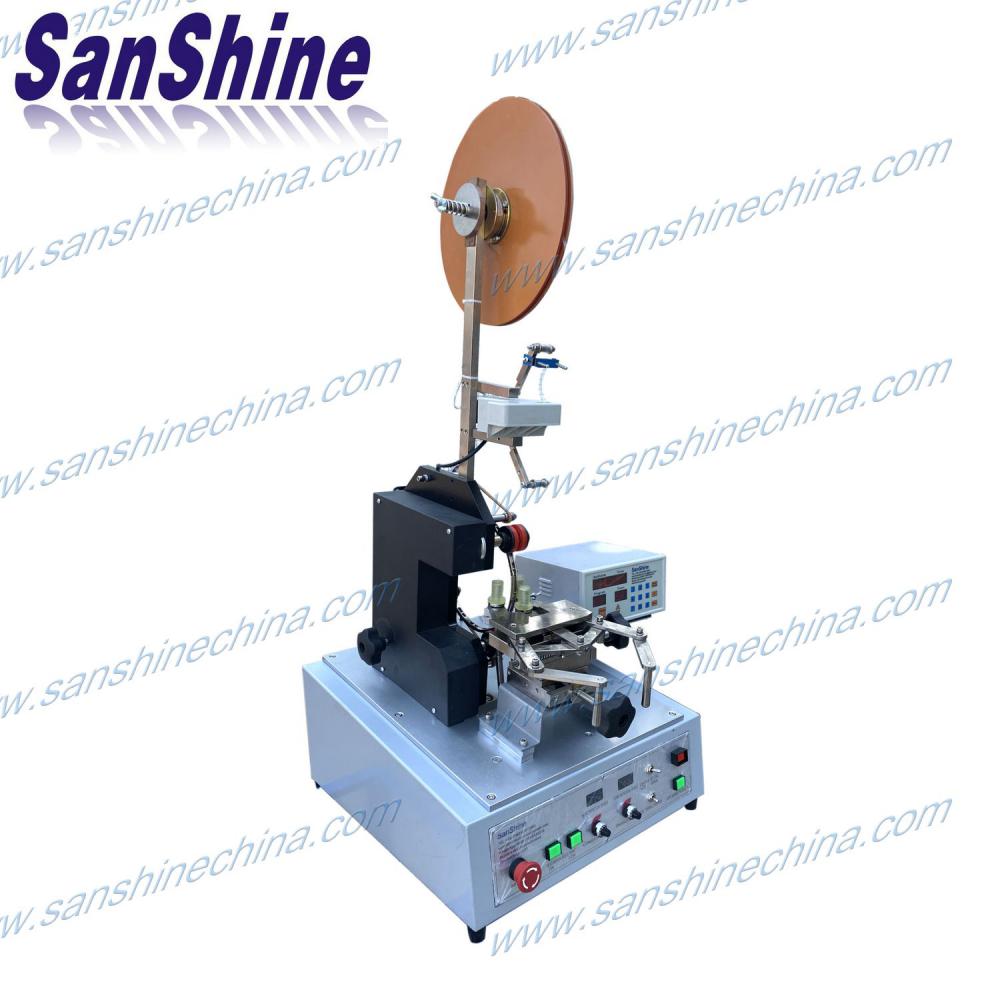

Product name : Programable automatic big toroid core coil taping machine (SS300T series)





programmable toroid taping machine

toroidal tape winding machine

toroidal taping machine

Description :

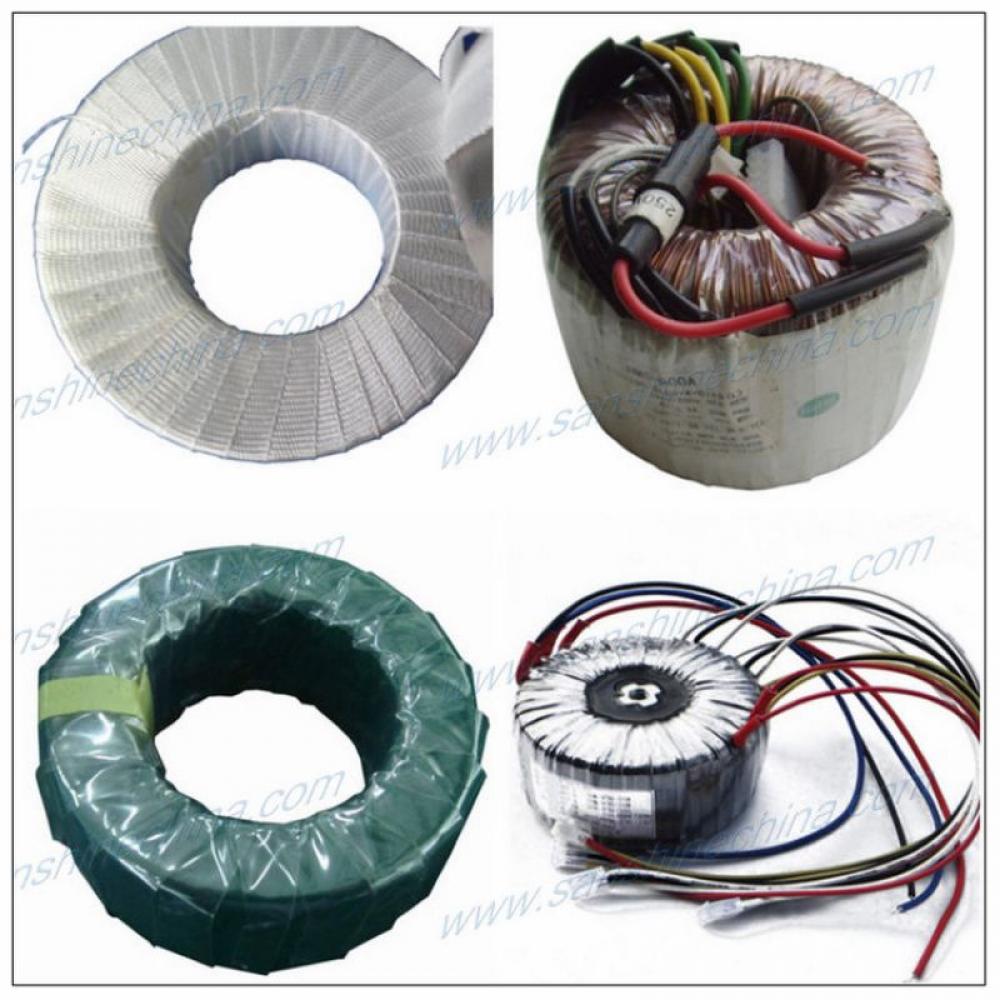

The programable automatic big toroid core coil taping machine (SS300T series) adopt the big taping shuttle and precise digital toroid controller. This toroid tape taping machine is an accurately and reliability digital toroid automatic insulation tape winding machine. This tape wrapping machine be named toroidal core coil tape wrapping machine and ferrite toroidal core coil taping machine also. This type tape taping machine is used for wrapping the insulation tape on the toroid core and winding. This insulation tape wrapping machine is best suited to wind the tape on the toroid inductor, toroid transformer, toroid current transformer, toroid coil, toroidal choke coil, power inductor, power magnetic coil, UPS inductor, converter inductor, heavy toroid core, etc. .

Features :

1. Adopt the big taping shuttle to wrap the insulation tape, and interchangeable roller table with different size taping shuttle(magazine) for different dimensions coils and different size tapes, so that to reduce the cost.

2. Hi-tech taping shuttle for highest efficiency.

3. Separate control speed for loading and taping tape.

4. Accurately count length of loading by limited-switch.

5. Accurately count turns of taping by photo-electricity sensor.

6. Programmable taping direction, taping returns range (Turns or Angle) and segment taping angle.

7. Accurately tape spacing by programmable controller.

8. Memory capacity accommodates 29 sets programs with off-power memory retention.

Specification of each model :

Model

SS300T-01

Tape width

15 (20, 25, 30)mm

Max. winding speed

120 RPM

Max. final coil O. D.

Φ130-650mm

Wire spacing

stepping motor control

Min. final coilI.D.

Φ60mm

Supply voltage

AC 220V(50Hz)

Max. final coil height

150mm

Mechanical dimensions

900*600*1800mm

Controller storage capacity programs

29(set)

Weight

240Kg

Model

SS300T-02

Tape width

6 (8)mm

Max. winding speed

250 RPM

Max. final coil O. D.

Φ80mm

Wire spacing

stepping motor control

Min. final coilI.D.

Φ16mm

Supply voltage

AC 220V(50Hz)

Max. final coil height

40mm

Mechanical dimensions

550*500*1100mm

Controller storage capacity programs

29(set)

Weight

100Kg

Model

SS300T-03

Tape width

8(10, 12, 15)mm

Max. winding speed

250 RPM

Max. final coil O. D.

Φ45-200mm

Wire spacing

stepping motor control

Min. final coilI.D.

Φ25mm

Supply voltage

AC 220V(50Hz)

Max. final coil height

80mm

Mechanical dimensions

550*500*1100mm

Controller storage capacity programs

29(set)

Weight

100Kg

Model

SS300T-04

Tape width

10(8, 12, 15)mm

Max. winding speed

250 RPM

Max. final coil O. D.

Φ50-200mm

Wire spacing

stepping motor control

Min. final coilI.D.

Φ30mm

Supply voltage

AC 220V(50Hz)

Max. final coil height

80mm

Mechanical dimensions

550*500*1100mm

Controller storage capacity programs

29(set)

Weight

100Kg

Model

SS300T-05

Tape width

12(8, 10, 15)mm

Max. winding speed

250 RPM

Max. final coil O. D.

Φ50-200mm

Wire spacing

stepping motor control

Min. final coilI.D.

Φ35mm

Supply voltage

AC 220V(50Hz)

Max. final coil height

80mm

Mechanical dimensions

550*500*1100mm

Controller storage capacity programs

29(set)

Weight

100Kg

Model

SS300T-06

Tape width

15(8, 10, 12, 20)mm

Max. winding speed

200 RPM

Max. final coil O. D.

Φ60-200mm

Wire spacing

stepping motor control

Min. final coilI.D.

Φ40mm

Supply voltage

AC 220V(50Hz)

Max. final coil height

100mm

Mechanical dimensions

550*500*1200mm

Controller storage capacity programs

29(set)

Weight

100Kg


How to select the best suited automatic toroid taping machine for your toroid coil?

Tell us your toroidal coil of data as below please:

1.toroid core outside diameter before winding?

2.toroid core inside diameter before winding?

3.toroid core height before winding?

4.how many windings on this core?

5.how many tape windings total on this toroidal coil?

6.how about the tape width of each tape winding?

7.how many turns of each tape winding?

8.provide pictures of product which is better.
