programable automatic large rectangular core coil tape wrapping machine

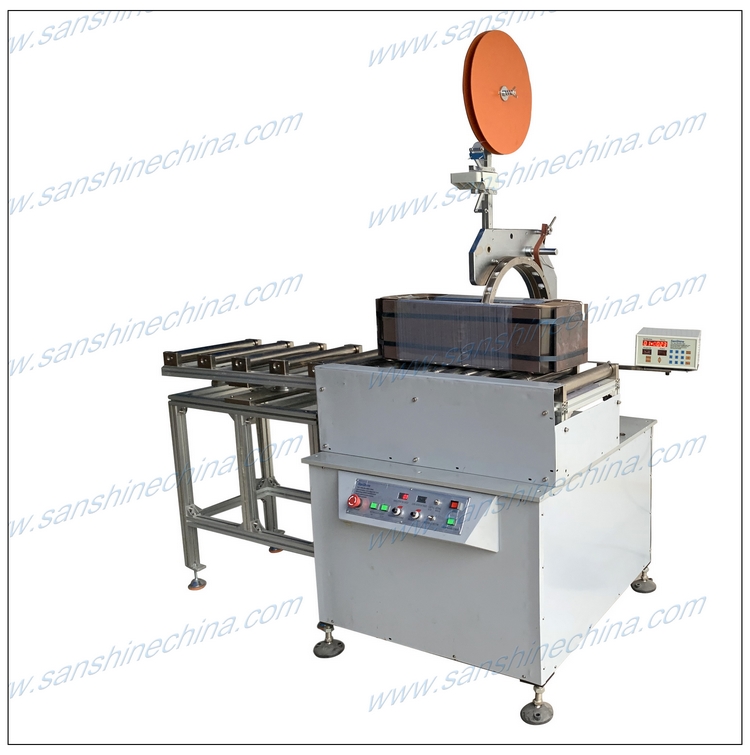

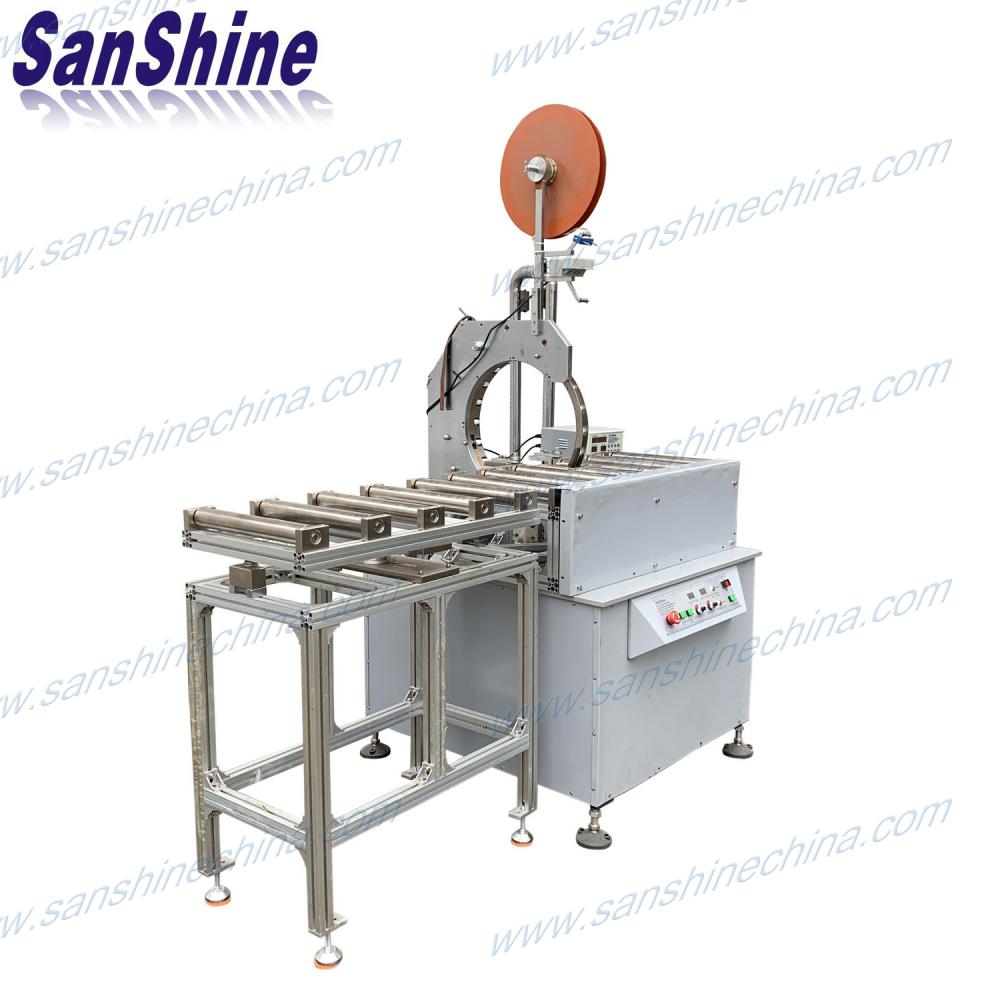

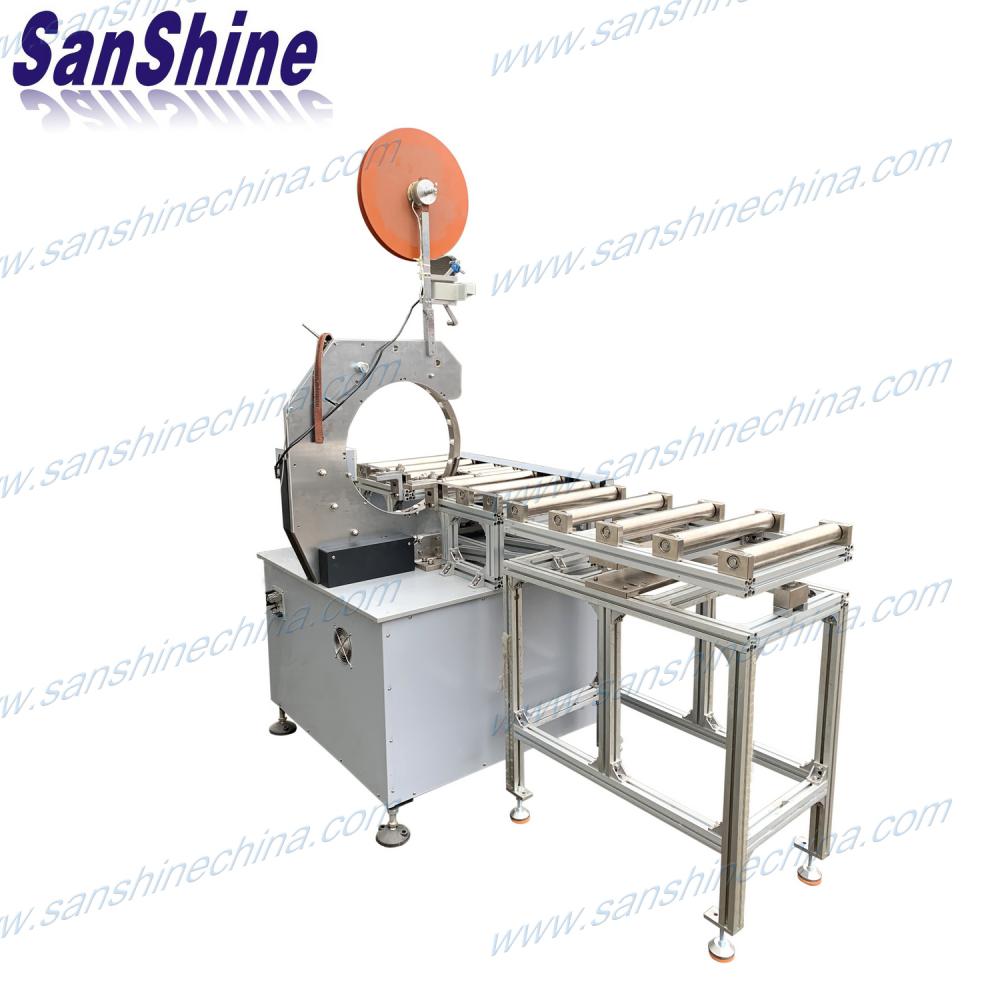

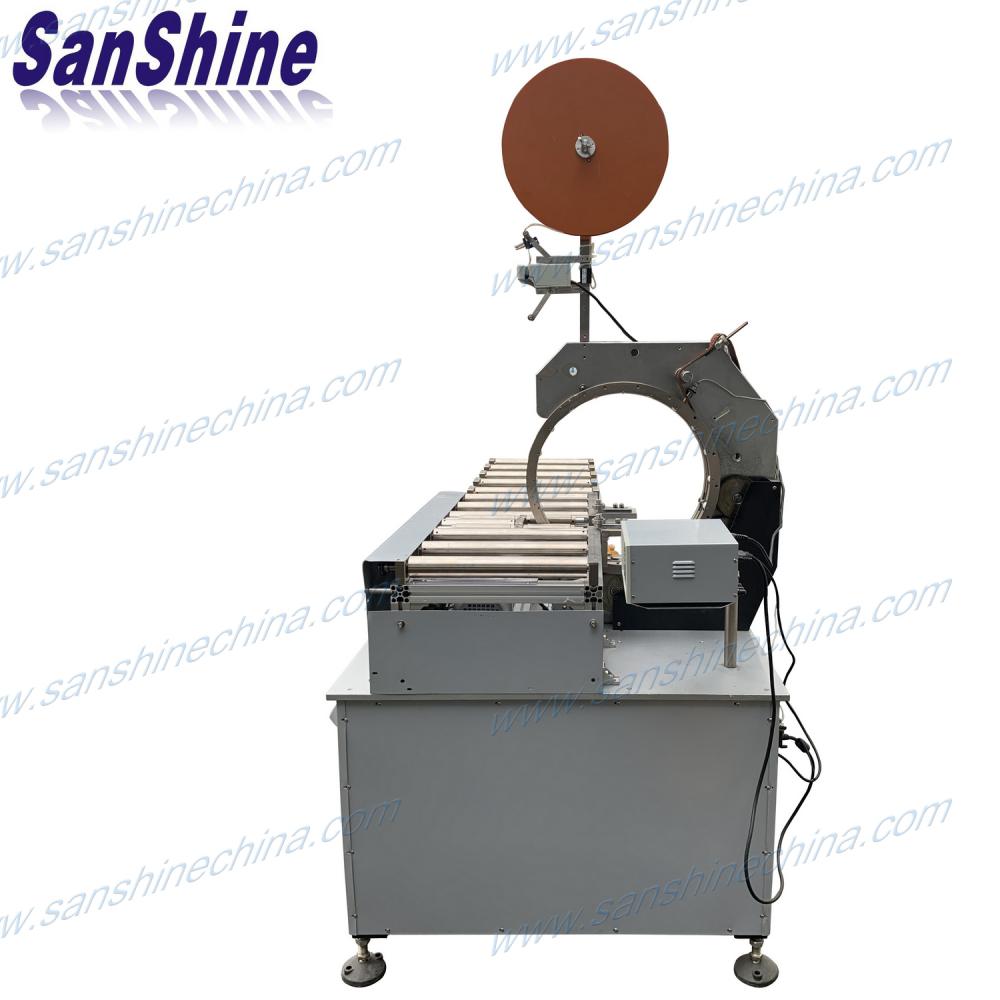

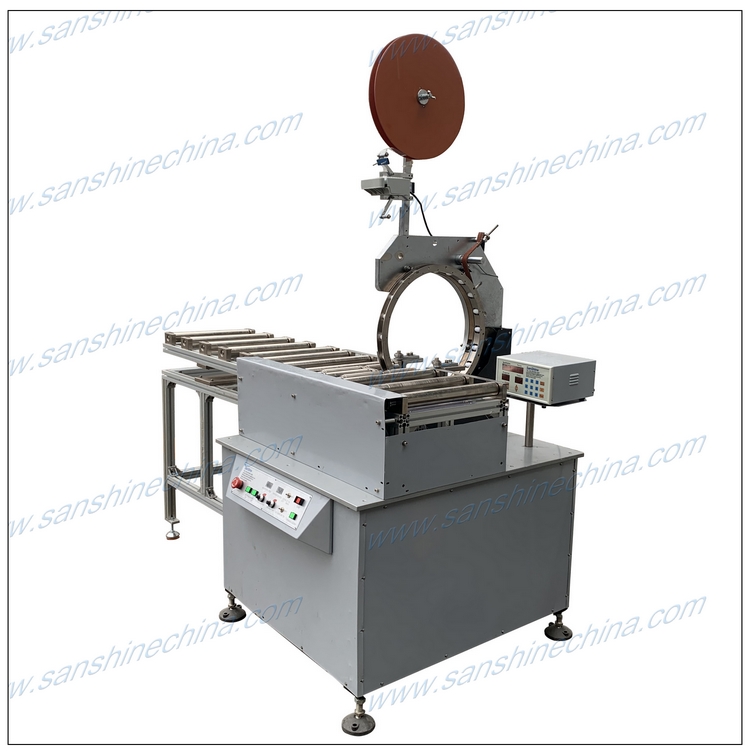

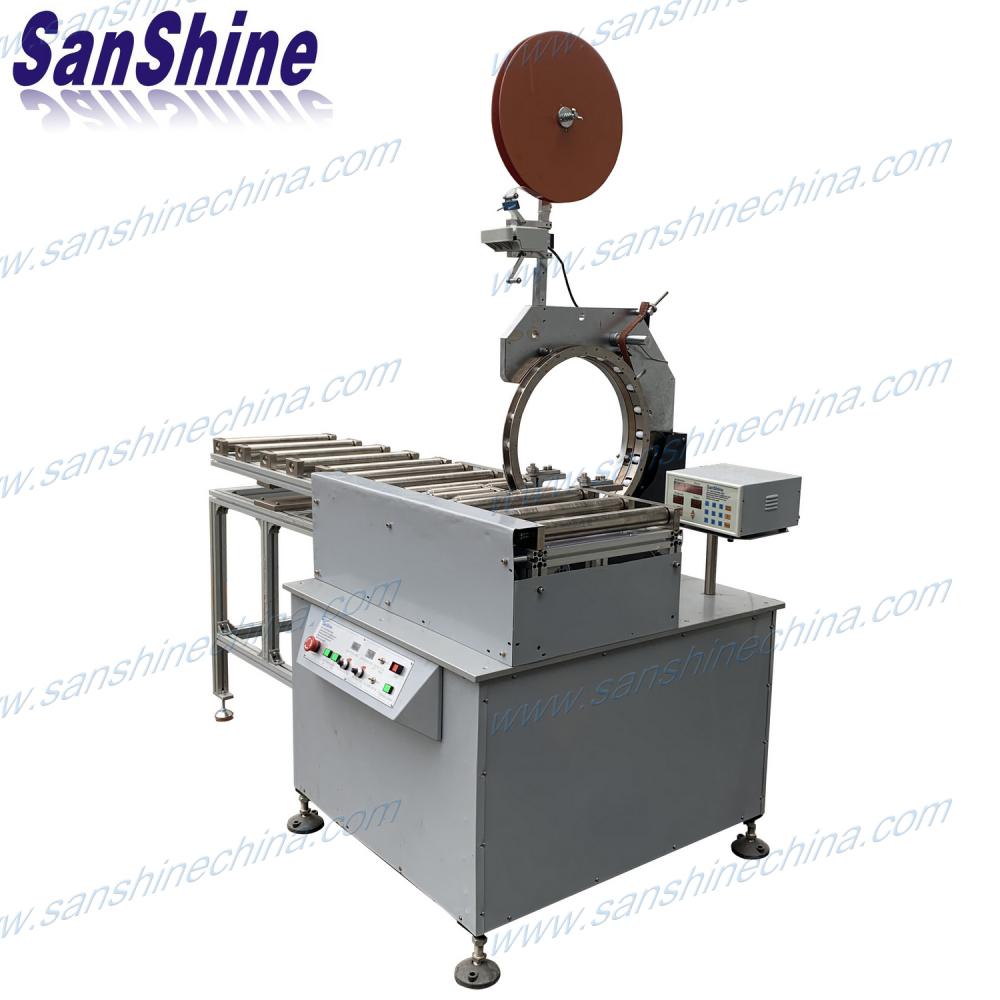

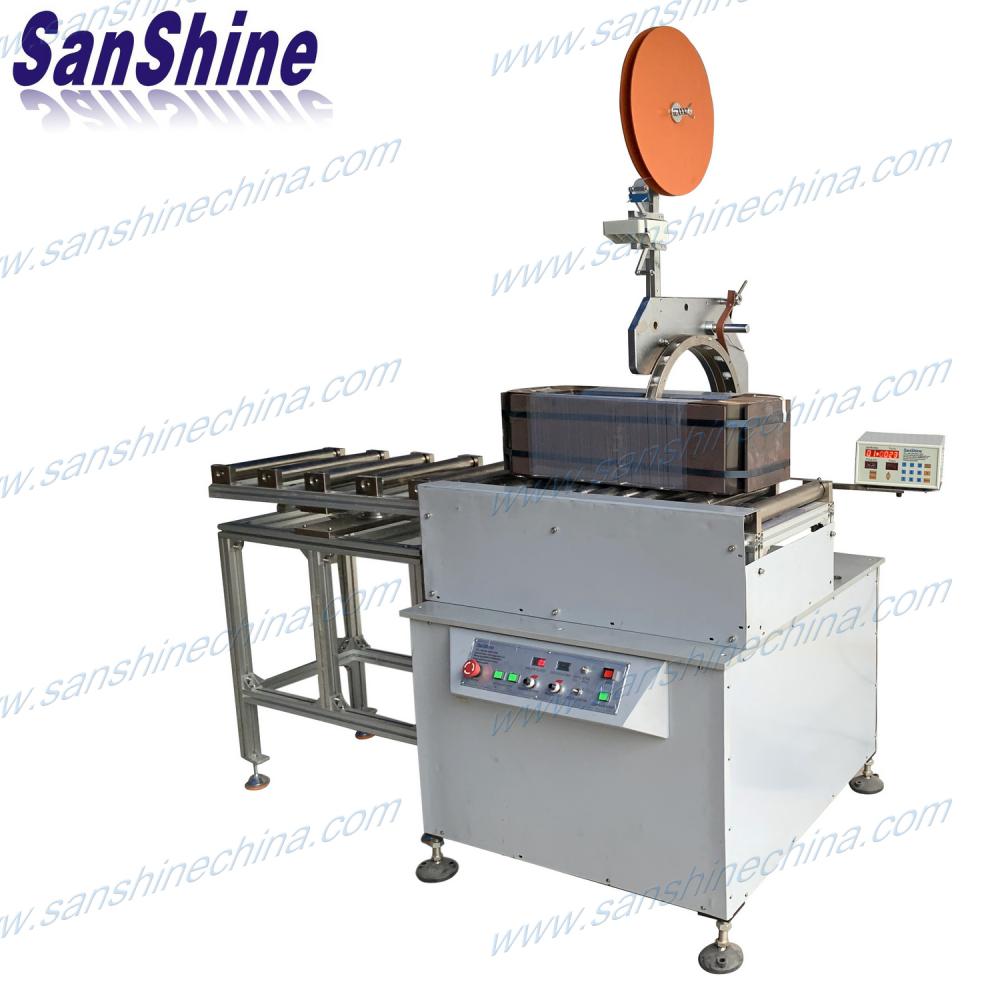

The programable automatic large rectangular core coil tape wrapping machine (SS300RT-01) is used for winding the insulation tape or film or paper or textile ribbon on the rectangular core and the rectangular coil. This rectangular core coil tape taping machine be named winding coil tape wrappping machine also.
  • Item NO.:

    SS300RT-01
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

Product name : Programable automatic large rectangular core coil tape wrapping machine (SS300RT-01)

tape wrapping machine

tape wrapping equipment

tape winding robot


Description :

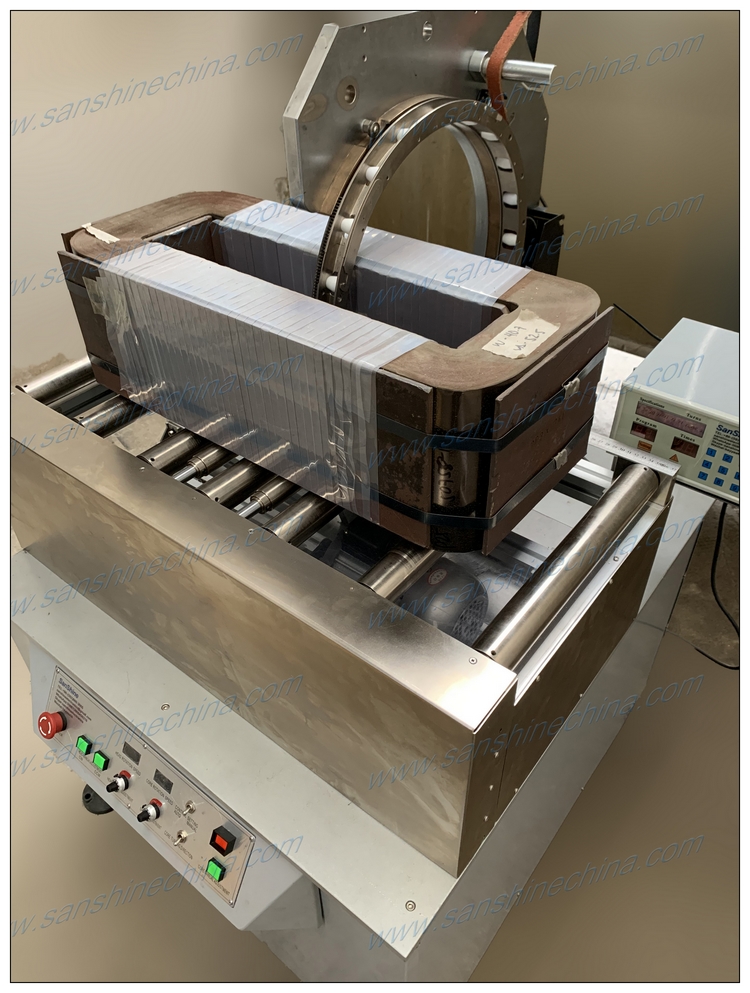

The programable automatic large rectangular core coil tape wrapping machine (SS300RT-01) adopts the big wrapping shuttle and precise digital controller. This rectangular tape taping machine is an accurately and reliability digital rectangular automatic insulation tape winding machine. This tape wrapping machine be named core coil insulation tape film winding machine also. This type tape taping machine is used for wrapping the insulation tape, insulation film, insualtion textile tape, insulation glass fiber tape, insulation epoxy tape, insulation crepe paper on the rectangular core and winding. This insulation tape wrapping machine is best suited to wind the tape on the rectangular inductor, transformer, current transformer, coil, choke coil, power magnetic coil, heavy steel core, magnet core, amorphous ribbon core etc. .

Features :

1. Adopt the big wrapping shuttle to wrap the insulation tape, and interchangeable different size taping shuttle(magazine) for different dimensions core or coils and different size tapes, so that to reduce the cost.

2. Hi-tech taping shuttle for highest efficiency.

3. Separate control speed for loading and winding tape.

4. Accurately count length of loading by limited-switch.

5. Accurately count turns of taping by photo-electricity sensor.

6. Programmable taping direction, taping returns range (Turns or Angle) and segment taping angle.

7. Accurately tape spacing by programmable controller.

8. Memory capacity accommodates 29 sets programs with off-power memory retention.

Specification of model (SS300RT-01) :

Tape width 15(20,25,30)mm Max. taping speed 120RPM
Max. final coil outside length 250 ~800mm Tape spacing Double frequency converter with proportional linkage
Min. final coil inner side width 80 ~250mm Supply voltage  Single phase 220V, 50Hz
Max. final coil height 230mm Main machine size 1150x900x2200mm
Controller storage programs capacity 29(set) Main machine net weight 285Kgs
Roll type core loading shelf net weight 59Kgs Roll type core loading shelf size 800x420x980mm
Roll type core loading shelf Max. capacity 500Kgs

How to select the best suited automatic rectangular core coil taping machine for your rectangular core coil?

Tell us your rectangular core or coil of data as below please:

1.rectangular outside length and width before winding?

2.rectangular core inside length and width before winding?

3.rectangular core height before winding?

4.how about the tape width and thickness and tape materials?

5.provide pictures of product which is better.

Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
