SS3829 Transformer Testing System

SS3829 is a new-type, practical and cost-effective transformer testing system launched by the company to meet current customers' production needs and transformer characteristic testing requirements; as a popular searched device in the 2025 transformer industry, it addresses traditional equipment pain points (low measurement efficiency, poor stability) with significantly faster measurement speed, greatly enhanced system stability and reliability, and the most comprehensive testing functions for production lines, quality control (QC) and laboratories. It adopts a guided Chinese menu with a concise and user-friendly interface for convenient and quick operation to meet users' diverse testing needs, features internal storage for up to 500 groups of data settings and unlimited external storage via USB drive, and is equipped with a Handler interface and RS-232C serial communication interface to support automated measurement, remote control and data transmission.

Item NO.:
SS3829
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
Beige and gray

contact now User's reviews

Description

Product name : SS3829 Series All-in-One Transformer Tester: Stable & Efficient for Laboratory/Production Testing (SS3829 Series)

Description :

SS3829 Series is a new, practical and cost-effective transformer testing system designed to meet customers' production and transformer characteristic testing needs; as a popular 2025 transformer industry device, it solves traditional equipment issues (low efficiency, poor stability) with faster measurement, stronger stability/reliability, and comprehensive testing functions for production lines, QC and laboratories—supporting one-time testing of core parameters like turn ratio, L, Q, L.K, ACR, Cp, DCR and pin short. User-friendly with a guided Chinese menu (easy for non-professionals), it has 500-group internal data storage and unlimited USB external storage for backup. Equipped with Handler and RS-232C interfaces for automated measurement, remote control and data transmission, it cuts enterprise production/labor costs, serving as a cost-effective transformer testing solution.

Feature :

■ Testing parameters: Including testing functions for inductance (L), capacitance (C), AC resistance (R), impedance (Z), DC resistance (DCR), transformer phase (PH), turn-ratio, leakage inductance (LK), pin short circuit (PS), balance (BL), etc.

■ 7-inch 16:9 color LCD display with a resolution of 800x480, showing all test items on a single screen without the need for page flipping.

■ Testing frequency: 20Hz-500KHz, accuracy: ±(0.01% ± 0.01Hz).

■ Maximum testing speed up to 100 times per second with stable test results.

■ Basic testing precision: 0.05% (1kHz/1V rms).

■ Testing voltage: 10mV to 2V rms, with 10mV per segment.

■ Open/short/load calibration, and flexible transformer deviation deduction methods.

■ Three bias current modes available: EXT (external bias current source), INT100mA (built-in 100mA current card), and INT1A (built-in 1A current card).

■ Memory and USB drive: Equipped with large internal memory, capable of storing up to 500 sets of transformer data. It also has a standard USB interface for convenient sharing and management of transformer data. Test data can be directly imported to a USB drive for viewing, editing, or processing on a computer.

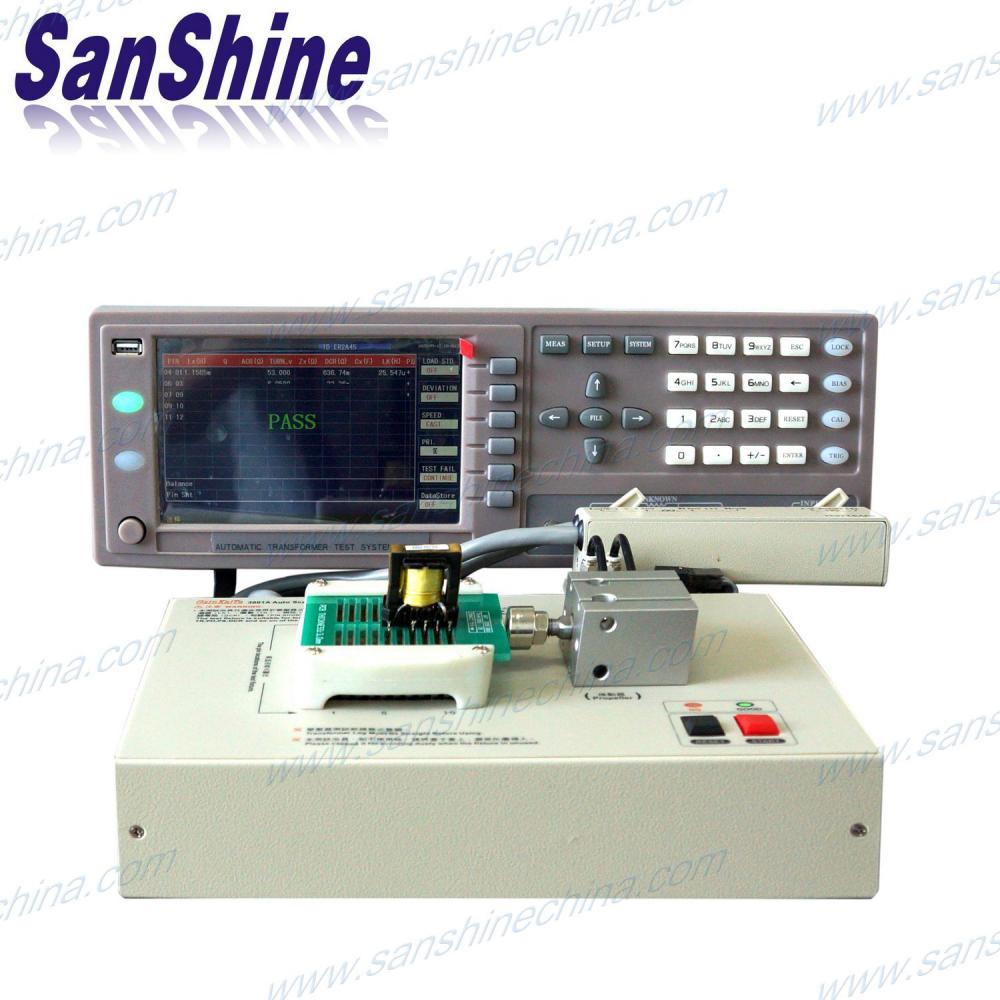

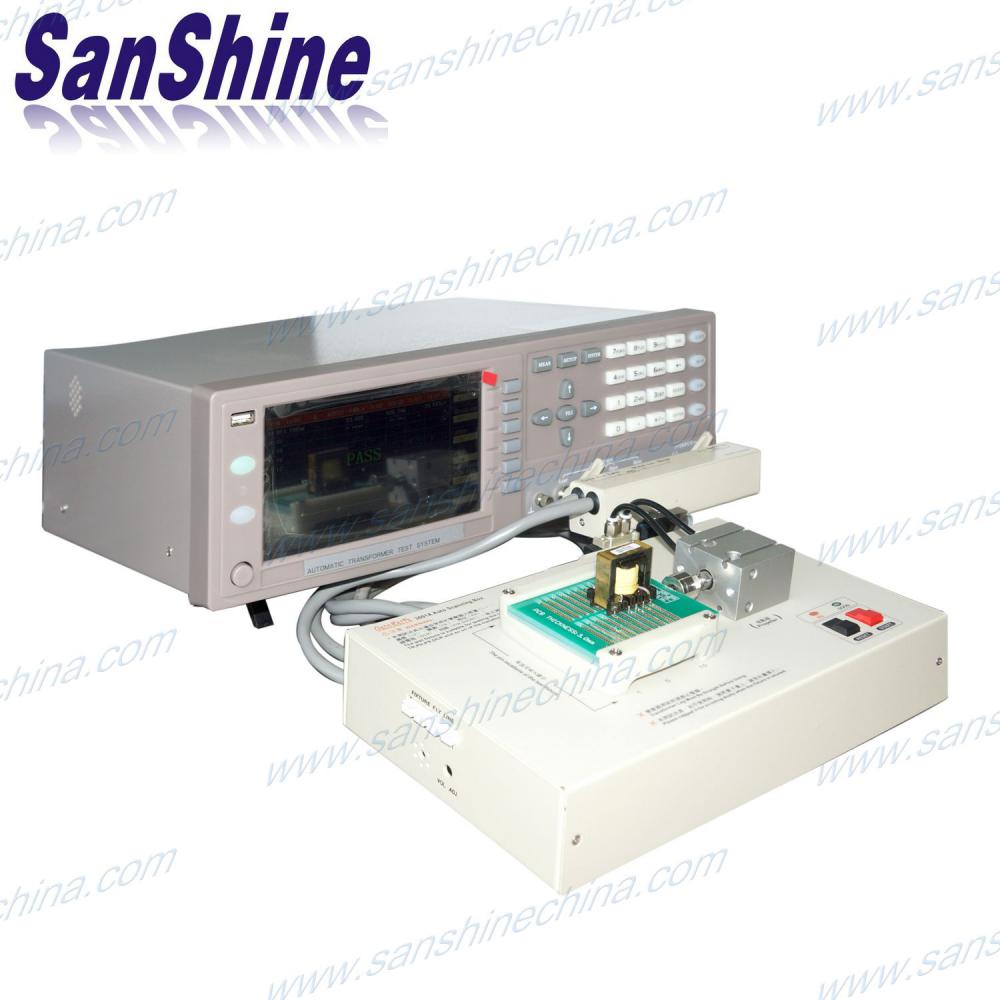

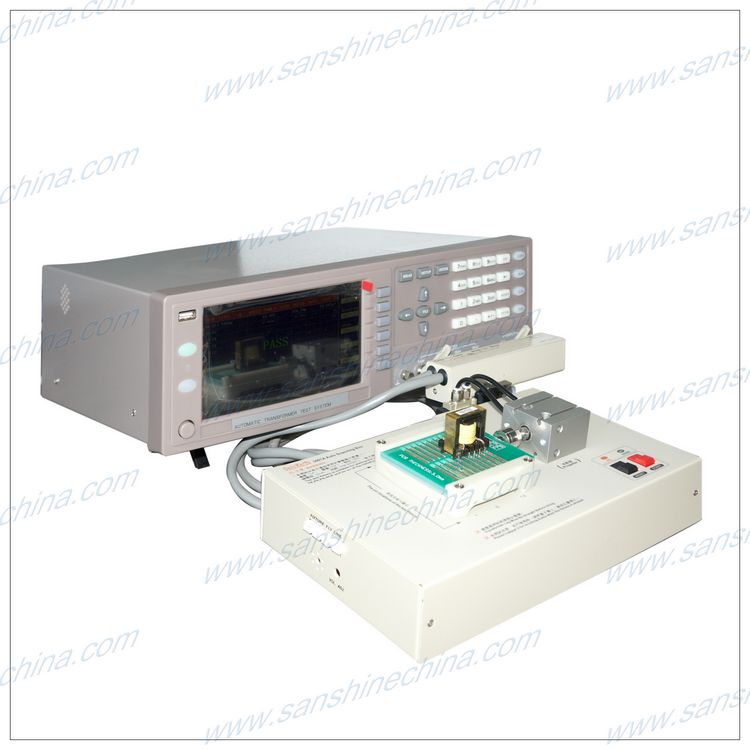

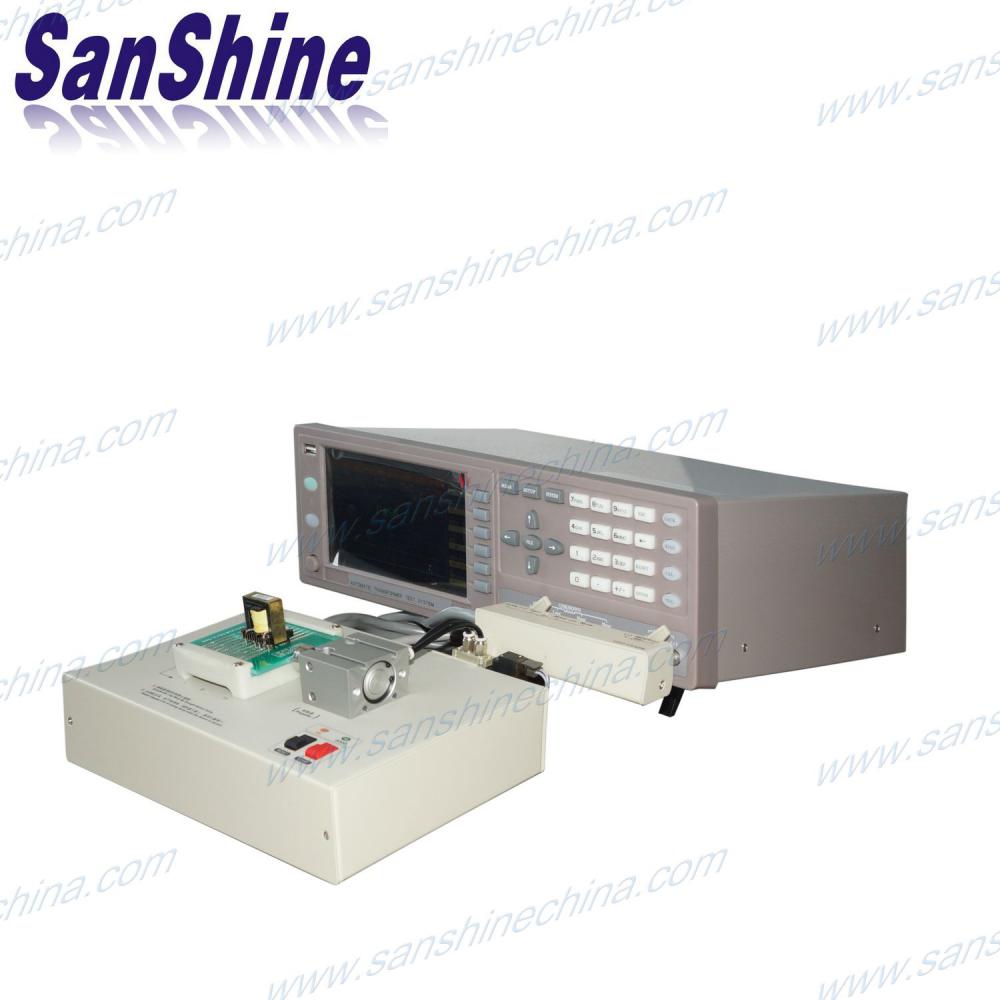

■ Scanning test: Compatible with GKT3001A test box for scanning tests of various transformer parameters.

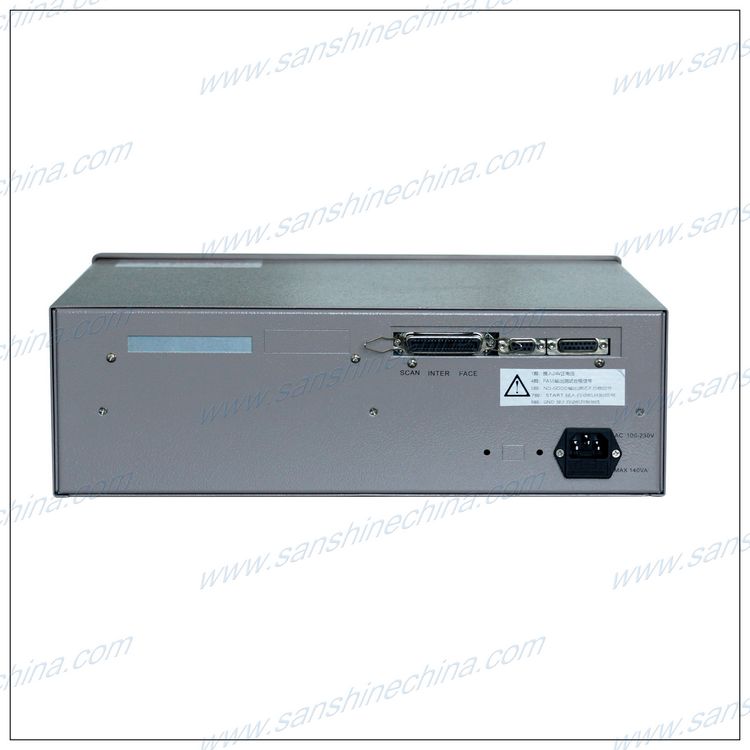

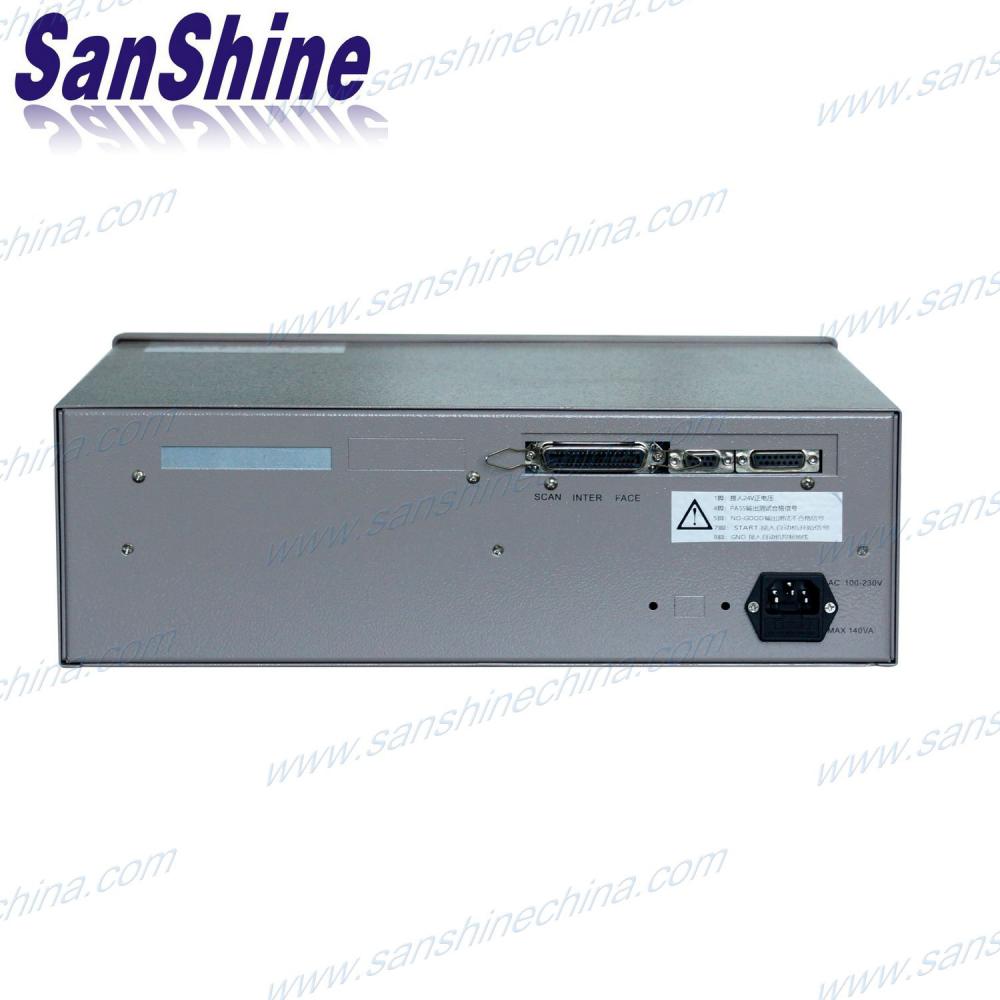

■ Standard 232 and HANDER interfaces, fully adaptable to automated testing. It can be built-in with 20P scanning test, reducing usage costs and making automated testing more convenient.

■ Internal resistance modes: There are 5 internal resistance modes. Different internal resistance modes can be switched according to various testing requirements, enabling better comparison with the instrument data from upstream manufacturers.

Order items :

■ SS3829 Transformer Comprehensive Tester
■ SS3829A Transformer Comprehensive Tester
■ SS3829B Transformer Comprehensive Tester
■ Scanning Test Box (3001A)
■ Scanning Test Box 3001B
■ Scanning Test Fixture
■ 4-Terminal Test Cable
■ 36P Data Cable
■ 1A Built-in Bias Current Card

Specification :

Model	SS3829		SS3829A		SS3829B
Main Functions	Transformer Scanning Test
test parameters
Transformer Scanning Test	L、 C、 R、 ∣Z ∣、 Y、 △、 △%、 DCR、 Turn-Ratio、 LK、 DL、 PSQ、 D、 R、 θ
Test signal
Testing Voltage	Turn	10mV～ 10V, ±10%,10mV/Step
	Others	10mV～ 2V, ±10%,10mV/Step
Testing Frequency	20Hz-200KHz, ±0.01%			20Hz-500KHz， ±0.01%	20Hz-300KHz， ±0.01%
Output Impedance	100 Ω、 30 Ω、 50 Ω、 10／ 100 Ω、 10／ CC
Measurement display range
L.LK	0.00001 μH～ 9999.99H
C	0.00001pF～ 999.999mF
Q.D	0.00001～ 99999
Z.X.R	0.00001 Ω~99.9999MΩ
Y	0.01nS～ 99.9999S
θ	-90.00～ +90.00
DCR	0.01mΩ~99.999MΩ
Turn	0.01～ 99999.99Turns(The secondary voltage is less than 100Vrms)
Pin-short	1 groups, between pin and pin
Basic Accuracy
L.LK.C.Z.X.Y.R.DCR	0.05%（若为 AC参数 1KHz）
Q.D	0.0005(1KHz)
θ	0.03 ° (1KHz)
Turn	0.5%(1KHz)
Measurement Speed (Maximum Speed)
L.LK.C.Z.X.Y.R.D	100meas./sec
DCR	75meas./sec
Turn	30meas./sec
Judgment Method
Display	800×480 dot color LCD display
Correction Function	Open/Short zeroing, load correction
Memory	500 groups of test data settings, expandable via USB
Equivalent circuit mode	Series, parallel
Trigger	Internal, manual, external
Management	Password management, defective product locking
General Specifications
Environmental Conditions	Temperature: 10 °C～40 °C, Humidity: 10%～90%RH
Power consumption	Max. 140VA
Power supply	90V～ 125Vac or 190V～ 250Vac,48Hz～ 62Hz
Weight	Approx. 8 Kg
Dimensions (W × H × L)	395mm×125mm×380mm
