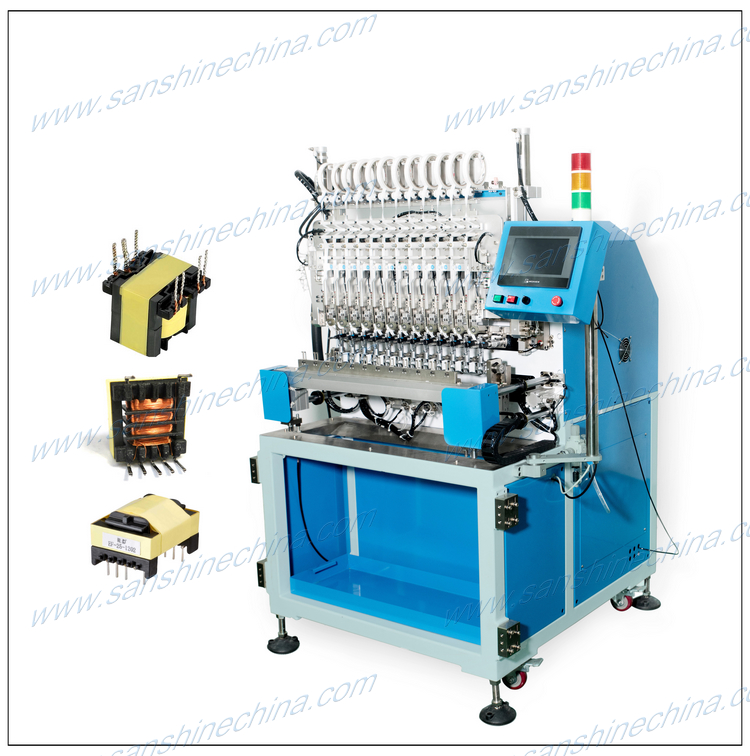

The fully automatic linear coil winding machine system consists of four CNC-controlled axes. The wire guide spreading is movable in three axes (vertical: Z, horizontal : X and Y ). The coil is linearly movable and parallel to the axis of rotation(R, winding spindle axis) and the coil can be rotated CNC-controlled. It is one high precise with high speed controlling system.

It is important that the winding coil wire terminal be winded on an auxiliary pin(bobbin pins) before the start of each cycle so that the wire can be guided in a controlled method.

The fully automatic winding machine controlling system adopts the programmable CNC controlling system. The basic software of this fully automatic transformer coil winding machine be programmed by SanShine electronics(XIAMEN) Co.,ltd.. SanShine's program engineer use the G-Code to design the winding system basic software. This linear coil winding machinery is used for winding the linear coils. Like as: transformer, inductor, relay, solenoid coil, electricmagnetic valve coil, current contactor coils,motors coils, etc.. The fully automatic inductor coil winding machine adopts the high precise high speed servo motors. The winding spindle rotation motor is one big power and high torsion servo motor. SanShine's winding machine can substitute the NITTOKU automatic coil winding machine fully and easily.

The user operation interfac adopts the touch screen. There are English and Chinese languages for choice to display. The user operation interface is so simply. User can adjust, program, save, recall program for different size coil winding program by this operation interface. These fully automatic relay coil winding machine can be fixed the fine wire twisting device, coil insulation tape wrapping device and thick wire cutting device with it.

The fully automatic current contactor coil winding machine request the hardware and software of CNC controlling system to be very very strictly. Request the ball screw rods, motors, winding spindles base and bearings of the rotation system and moving system to be very very strictly.
