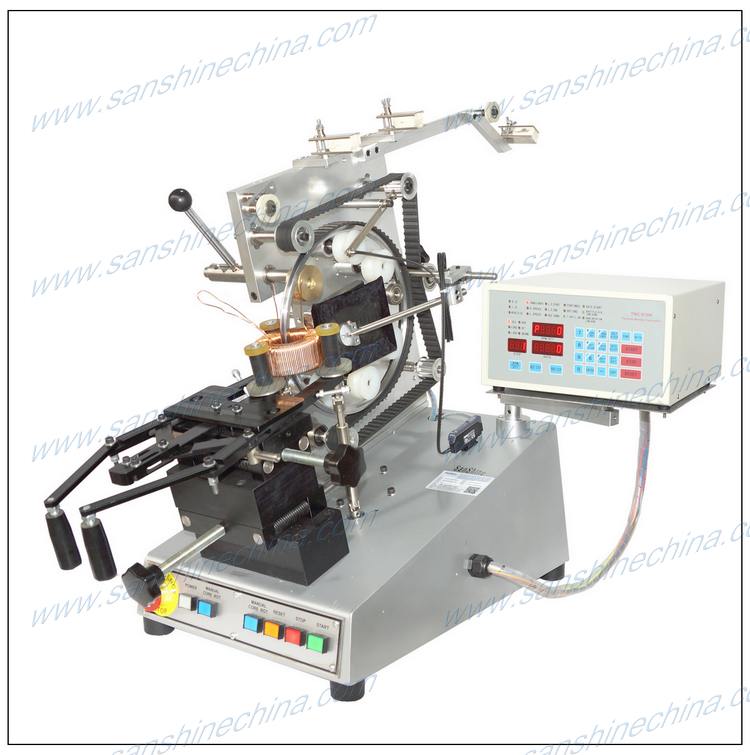

The automatic toroid coil winding machine system consists of two CNC-controlled axes. One axis is used for taking and store the wire into the winding shuttle and winding the wire on the toroidal core. Another one axis is used for rotation the torodal core. It is one high precise with high speed controlling system.

It is best important to take care the insluation film of enamelled wire during winding. So SanShine electronics(XIAMEN) Co.,ltd. has designed and made the specialwinding shuttle. The toroid winding shuttle must be polished to mirror face,and strong.

The automatic toroid coil winding machine adopts the programmable CNC controlling system. The basic software of this auotomatic toroid coil winder be programmed by SanShine electronics(XIAMEN) Co.,ltd.. SanShine's program engineers use the G-Code to design the winding system basic software. This toroid coil winding machinery is used for winding the toroidal coils. Like as: toroid transformer, toroid inductor, toroid current transformer, etc.. The auotomatic toroidal inductor coil winding machine adopts the high precise high speed step motor to drive the toroid core. The winding shuttle rotation motor is one big power, high speed and high torsion brushless motor. SanShine's toroid coil winding equipment can substitute the JOVIL automatic toroid coil winding machine, Ruff automatic toroidal coil winder, VC toroid winding machine and Gorman toroid winding machinery fully and easily.

The user operation interfac adopts the digital number display. There are English and Chinese languages for choice. The user operation interface is so simply. User can adjust, program, save, recall program for different size toroidcoil winding program by this operation interface. These auotomatic toroidal winding machine system can controll and wind the wire on the toroid core by different radian easily as the user's request. Like as : 45 degree radian, 60 degree radian, 90 degree radian,120 degree radian, 240 degree radian, 360 degree radian, etc. .

The auotomatic toroid current transformer coil winding machine request the hardware and software of CNC controlling system to be very very strictly. Request the winding magazine, turns sensor, motors, winding spindles base and bearings of the rotation system and toroid core moving system to be very very strictly.
