Transformer inductor soft magnetic core power loss tester

The transformer inductor soft magnetic core power loss tester (SS-SML01) is used for analysing the soft magnetism materials.
  • Item NO.:

    SS-SML01
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

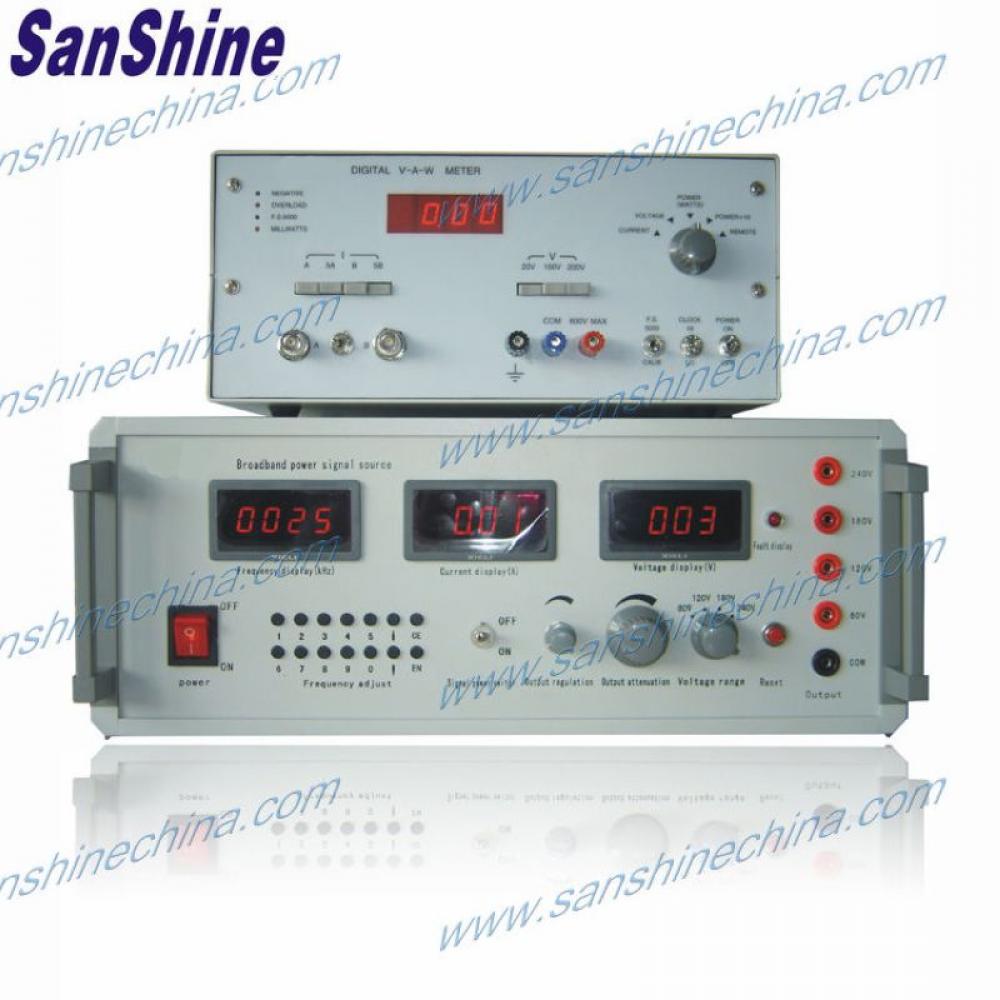

Product name : Transformer inductor soft magnetic core power loss tester (SS-SML01)

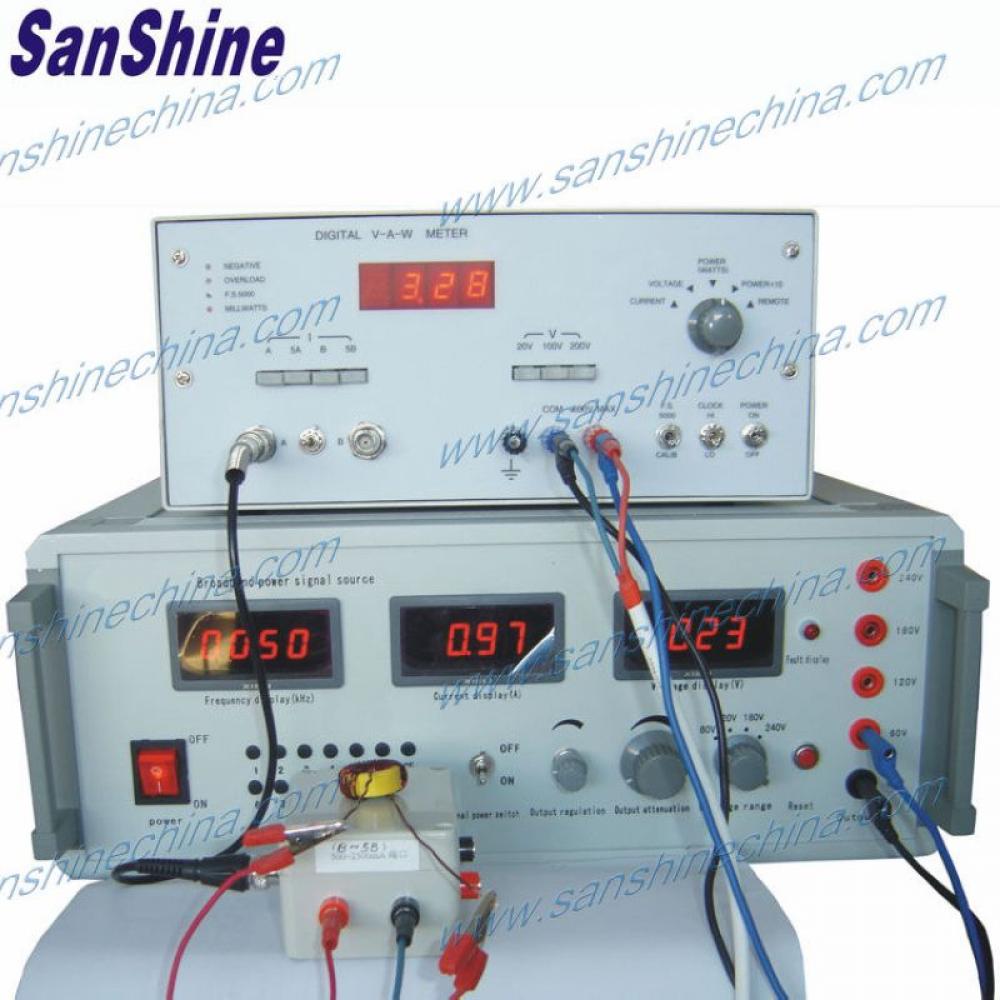

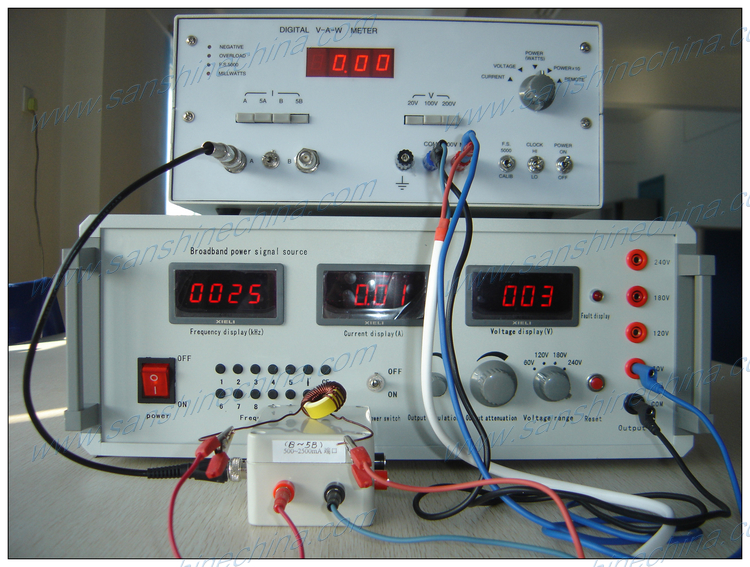

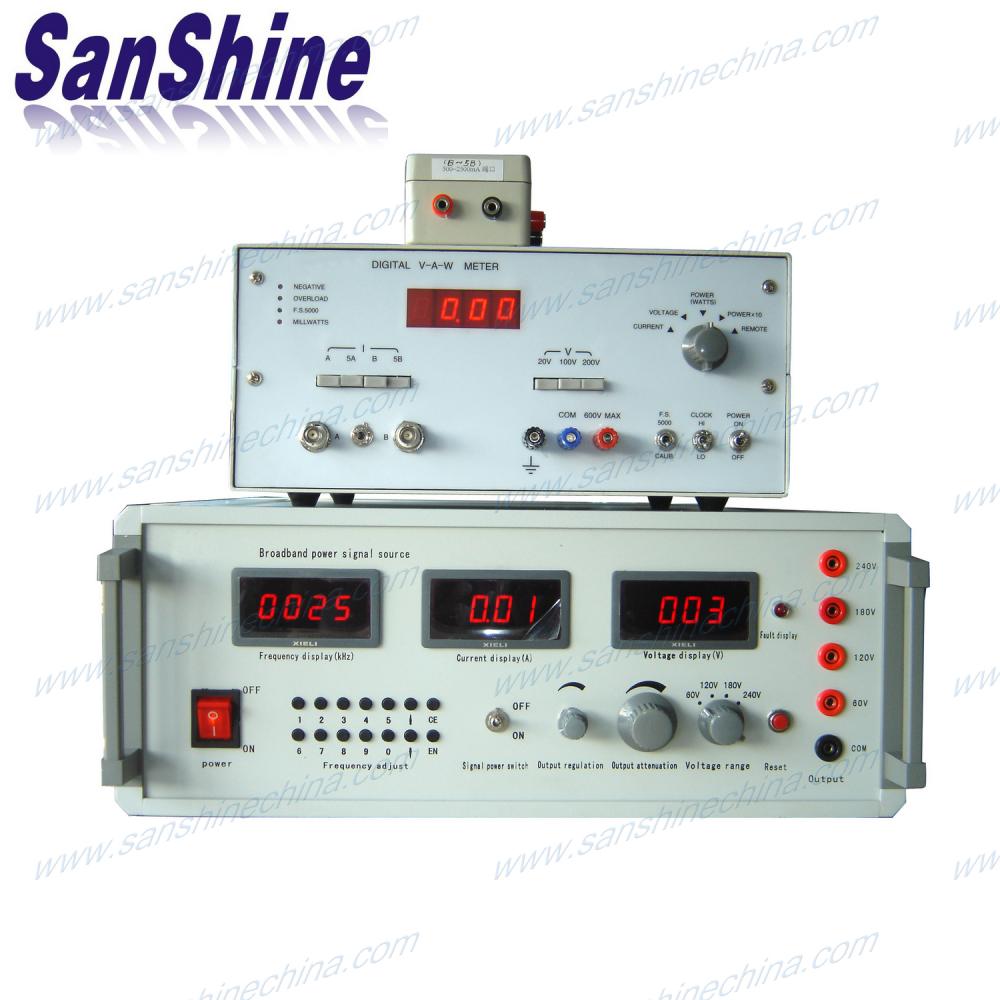

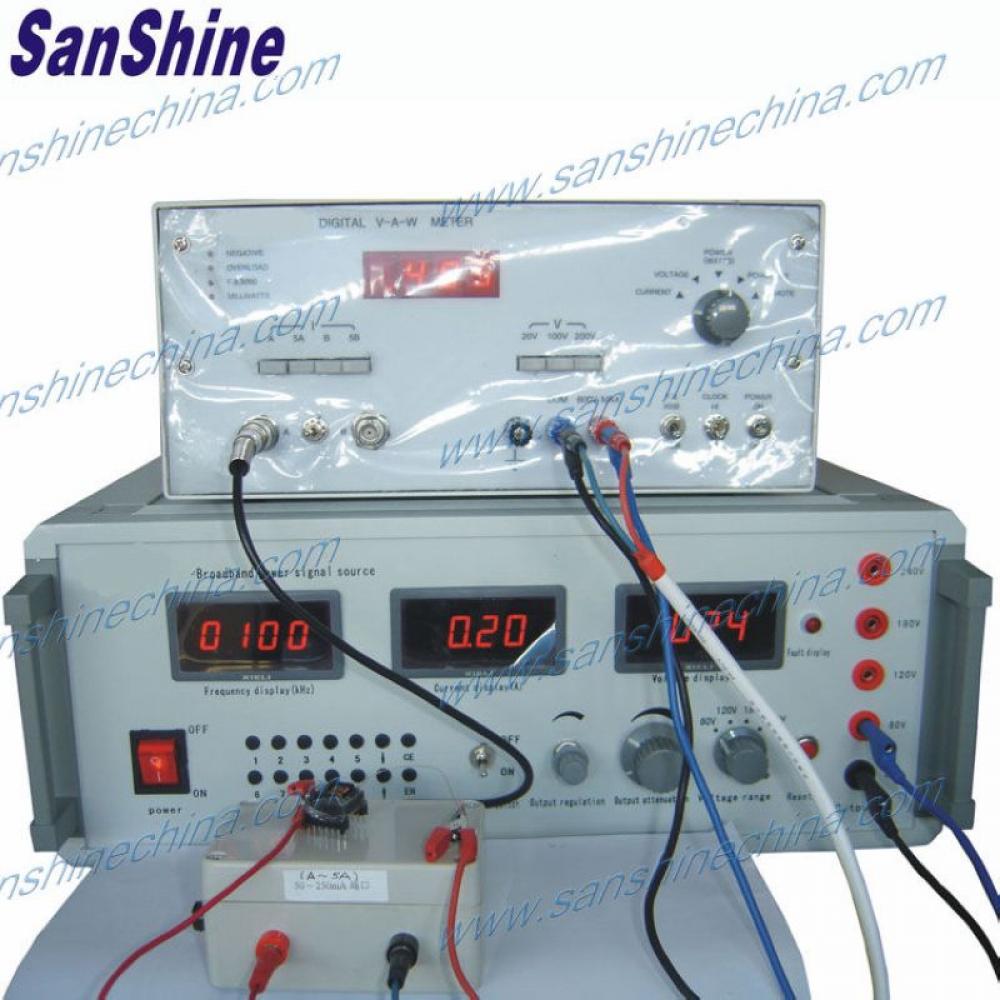

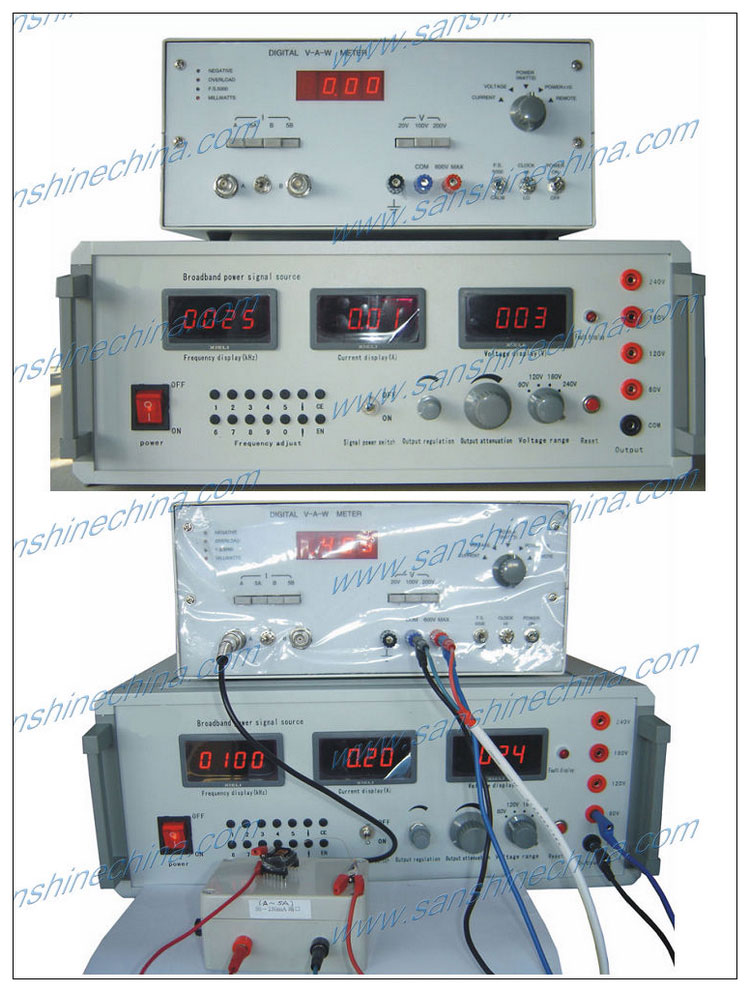

coil core power loss meter

coil core power loss meter

Description :

This transformer inductor soft magnetic core power loss tester (SS-SML01) includes one set broadband power signal generator and one set W-A-V meter. The broadband power signal generator is specially researched and manufactured for testing the soft magnetism materials. With a wide operating frequency, high power output, high quality waveform ouput and convenient operation. This (SS-SML01) core loss analysing instruments are ideal power signal source for the testing and determination of the soft magnetism materials, high frequency fluorescent lamp and high frequency nonpolar lamp. This (SS-SML01) core loss analyser is named electromagnet components core loss analyser also. This (SS-SML01) core loss tester with a power signal source of corresponding frequency band is designed for the magnetism core and coils manufacturing factories and laboratories. The W-A-V meter adopts the principle of Voltage with Ampere of product of IEC standard. The SS-SML01 tester can measure the core loss(soft magnetic core, amorphouse magnet core etc.) in quickly, easy, exactly. But the cores can not be gap.

Specification :

Broadband power signal source :

power signal source model output voltage(Vrms) output frequency range(KHz) non-liner distortion(full load) Max. output power(VA) voltage display range(V)
A 60/120/180/240<±0.5%/h 10 ~ 1000±0.5% 10KHz ~ 200KHz<2% 200KHz ~ 500KHz<3% 500KHz ~ 1000KHz<5% 200 60/120/180/240 ±1.0
C 60/120/240/360/500<±0.5%/h 10 ~ 200±0.5% 300 60/120/240/360/500 ±1.0
E 60/120/180/240/360/500<±0.5%/h 10 ~ 200±0.5% 500 60/120/180/240/360/500 ±1.0
F 60/120/240/360/480/600<±0.5%/h 10 ~ 200±0.5% 1000 60/120/240/360/480/600 ±1.0
W-A-V meter :

voltage measure range voltage measure accuracy current measure range power measure range power measure accuracy frequency measure range
20V(2.0 ~ 40.0V) ±0.5% (1KHz ~ 300KHz) ; ±0.5% (300KHz ~ 500KHz) 50mA(5.0 ~ 100mA) 0.1W ~ 500W ±1.0% (1KHz ~ 300KHz) ; ±1.0% (300KHz ~ 500KHz) 1KHz ~ 500KHz
100V(10.0 ~ 200.0V) 250mA(25.0 ~ 250mA)
200V(20.0 ~ 400.0V) 500mA(50.0 ~ 500mA)
2500mA(250.0 ~ 2500mA)
