24-bit AD Coil Turns Measuring Instrument for Toroidal Coil & Bobbin Coil Test

Item NO.:
SS702X Series
Brand:
SanShine

contact now User's reviews

Description

Performance Features

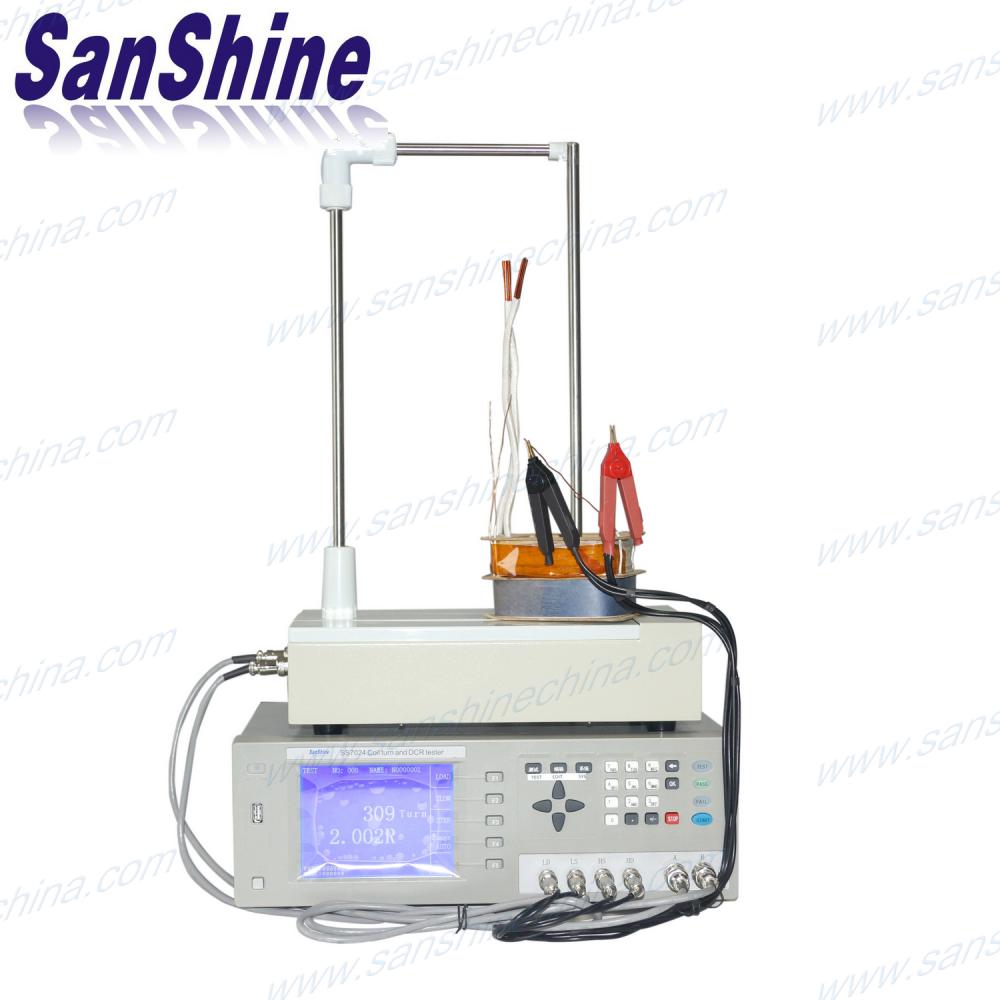

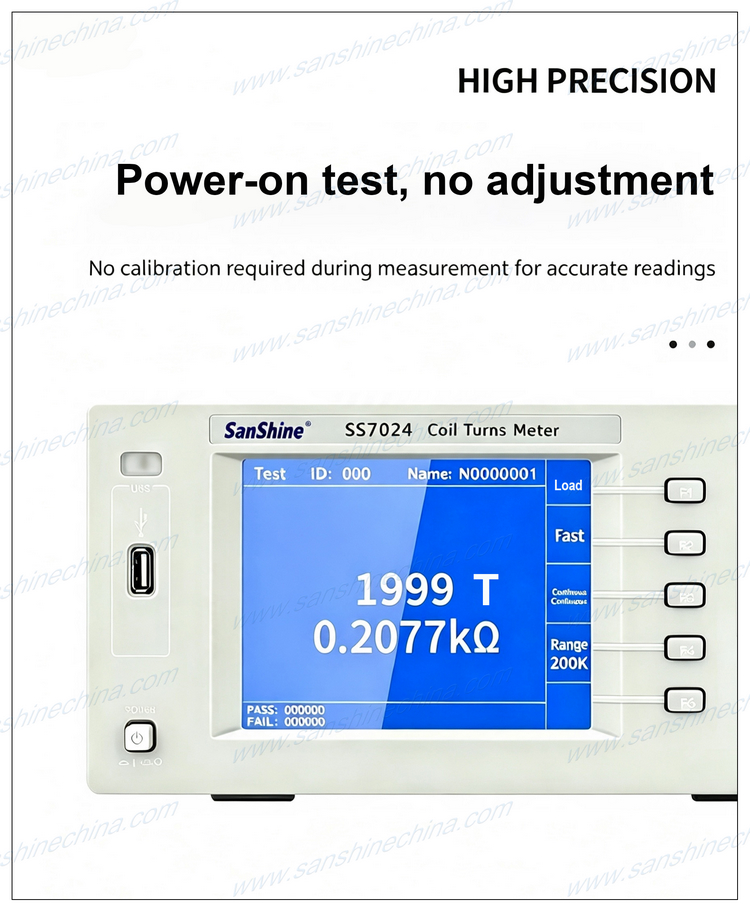

This instrument measures the number of turns of various types of coils. Thanks to its precision sensor and an advanced 24-bit A/D circuit, it offers high accuracy, powerful functions, low sensitivity to coil shape and geometry, reliable operation and ease of use. No adjustment or calibration is required during measurement; the precise measured value of the coil under test can be read directly from the instrument. It also comes with highly practical communication and sorting interfaces, facilitating secondary development and automated control.

Model		SS7021
Measurement Accuracy	Sensor Height	Height >150mm (refer to the SS7024 chart for detailed parameters)
	Sensor Diameter	Φ2mm	Φ3mm	Φ4mm	Φ6mm	Φ10mm
	0~300 turns	±0 turns
	301~500 turns	±1 turns
	501~2000 turns		±0.3%		±0.2%
	2001~20000 turns	−	±0.4%		±0.2%
	20001~60000 turns	−	−		±0.5%
Measurement Range		0~5000 turns	0~20000 turns		0~60000 turns
Coil Inner Diameter		>2mm	>3mm	>4mm	>6mm	>10mm
Coil Height		≤20mm	≤30mm		≤110mm
Coil Outer Diameter		≤15mm	≤25mm		≤100mm
Measurement Speed		Fast: 0.35 s/measurement		Fast: 0.35 s/measurement, Slow: 0.7 s/measurement
Communication Interface		RS232
Sorting Interface		HANDLER (level output), PLC-OUT (switching output), LED (indicator)
Start Trigger		Internal, button, interface, foot control, RS232 command
Power Supply		AC220V±10%, 50Hz±2Hz (customizable to AC110V, 60Hz)
Operating Environment		Ambient temperature: +5℃~+35℃, relative humidity: below 85%
Dimensions		Main unit: 400 (W) × 132 (H) × 245 (L) (mm)
Weight		Approx. 7 kg

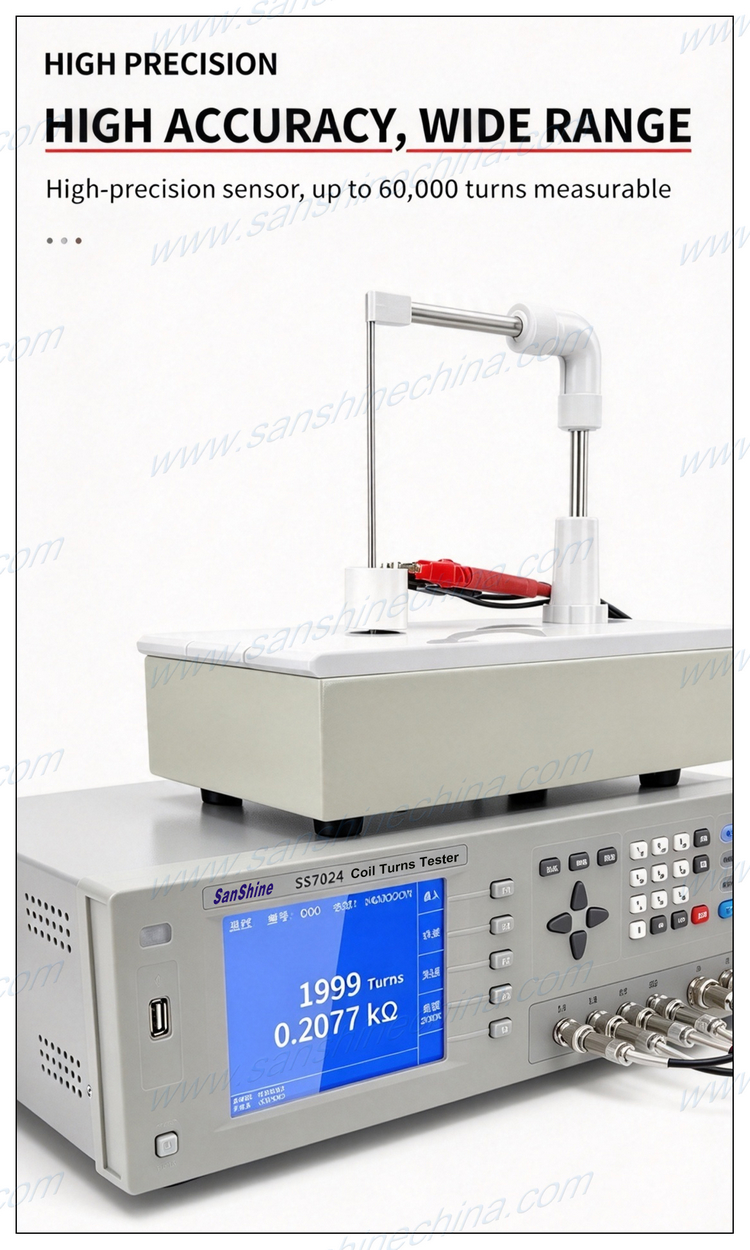

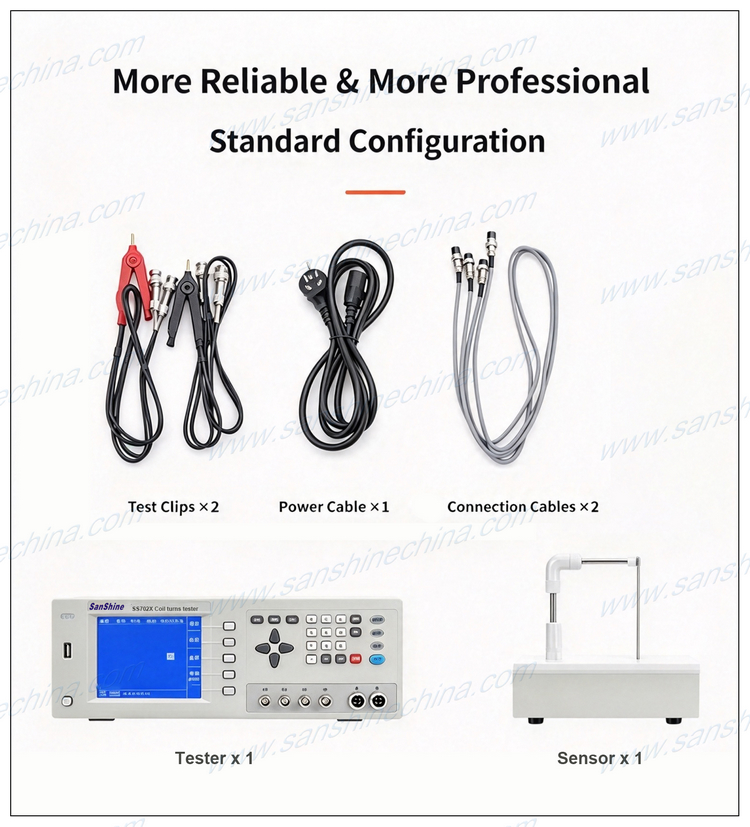

SS7022/23/24/25 Coil Turns Tester

Performance Features

This series of instruments measures the number of turns of various types of coils. They are equipped with highly practical communication and sorting interfaces, facilitating secondary development and automated control.

SS7022: resolution and stability can reach 0.05% (mainly for high-turn-count transformer coils).

SS7023: the internal resistance of the coil under test can be as high as 200 kΩ (mainly for high-resistance coils).

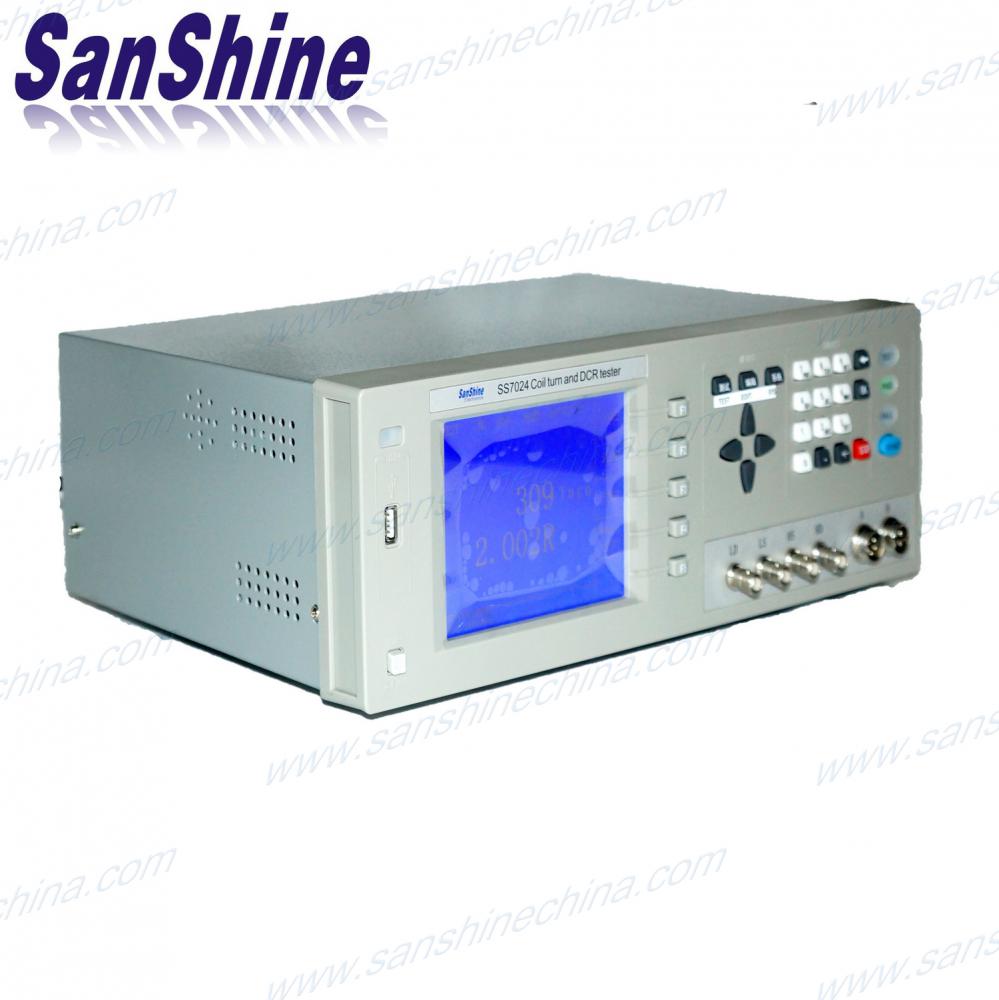

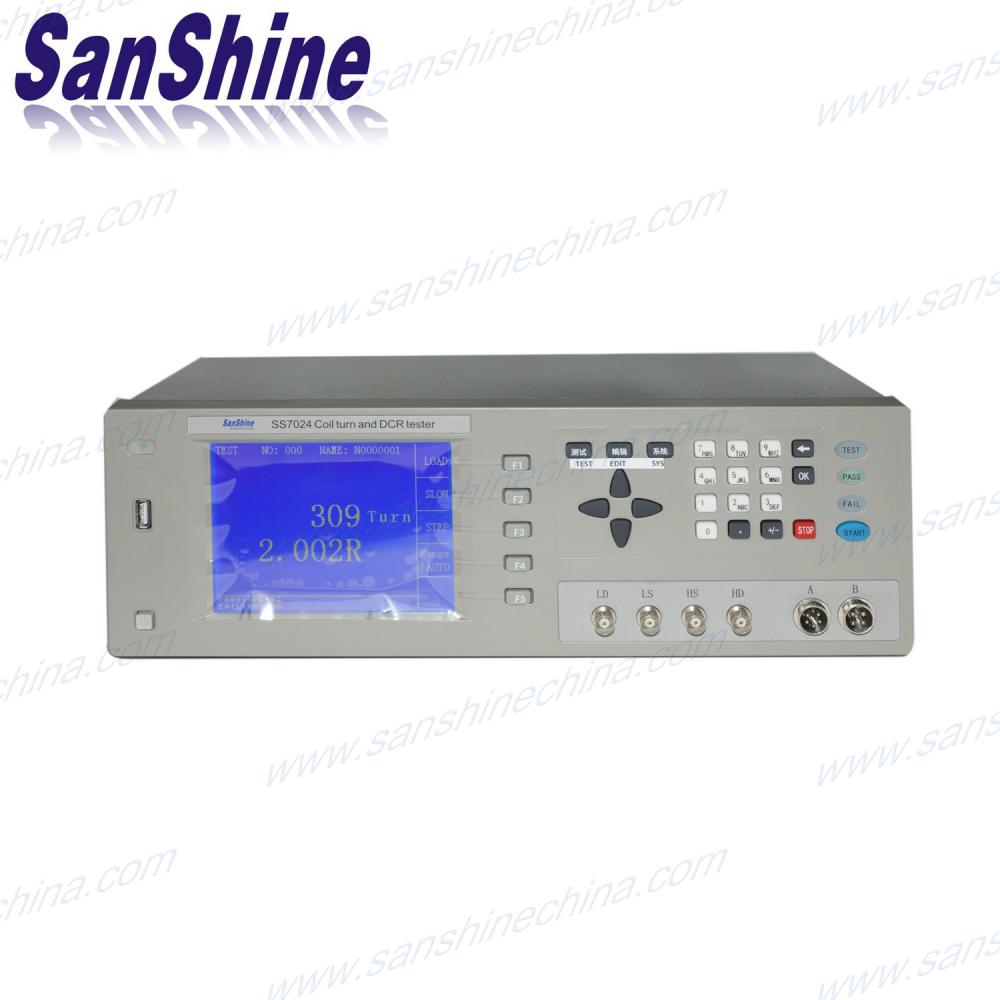

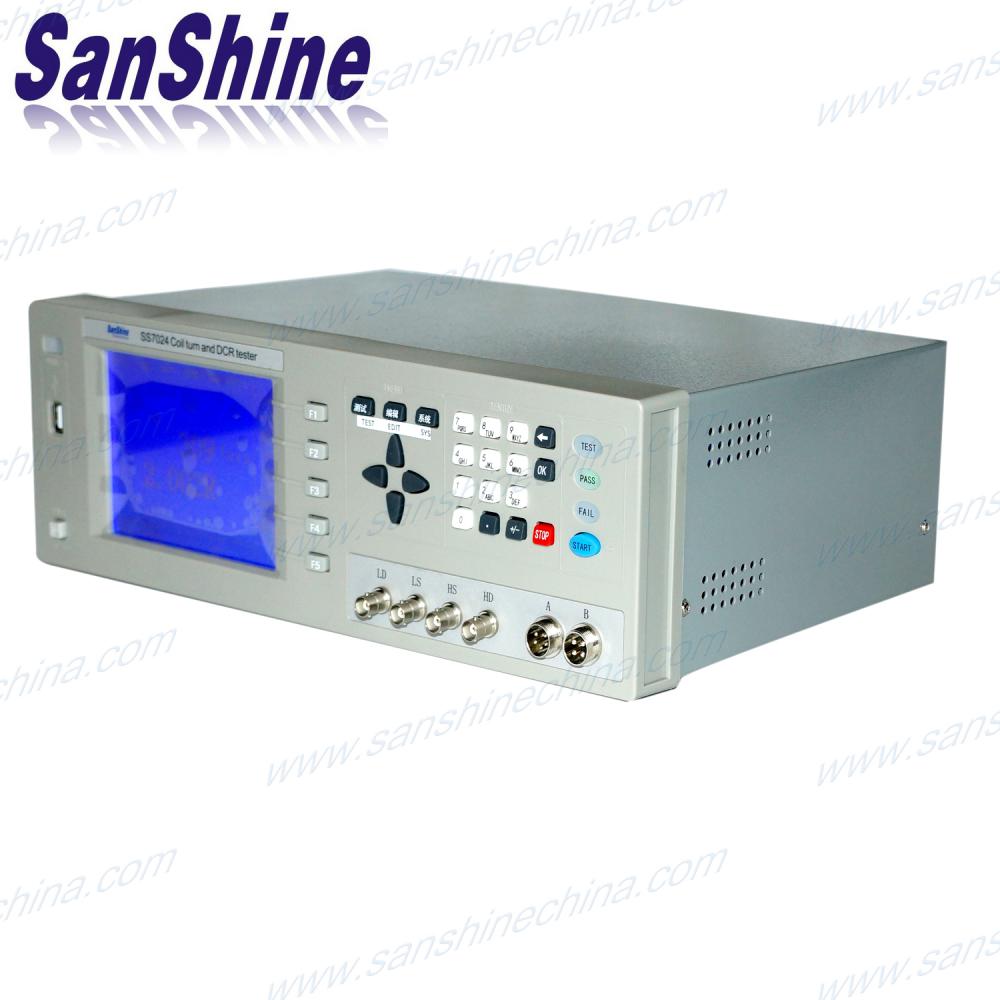

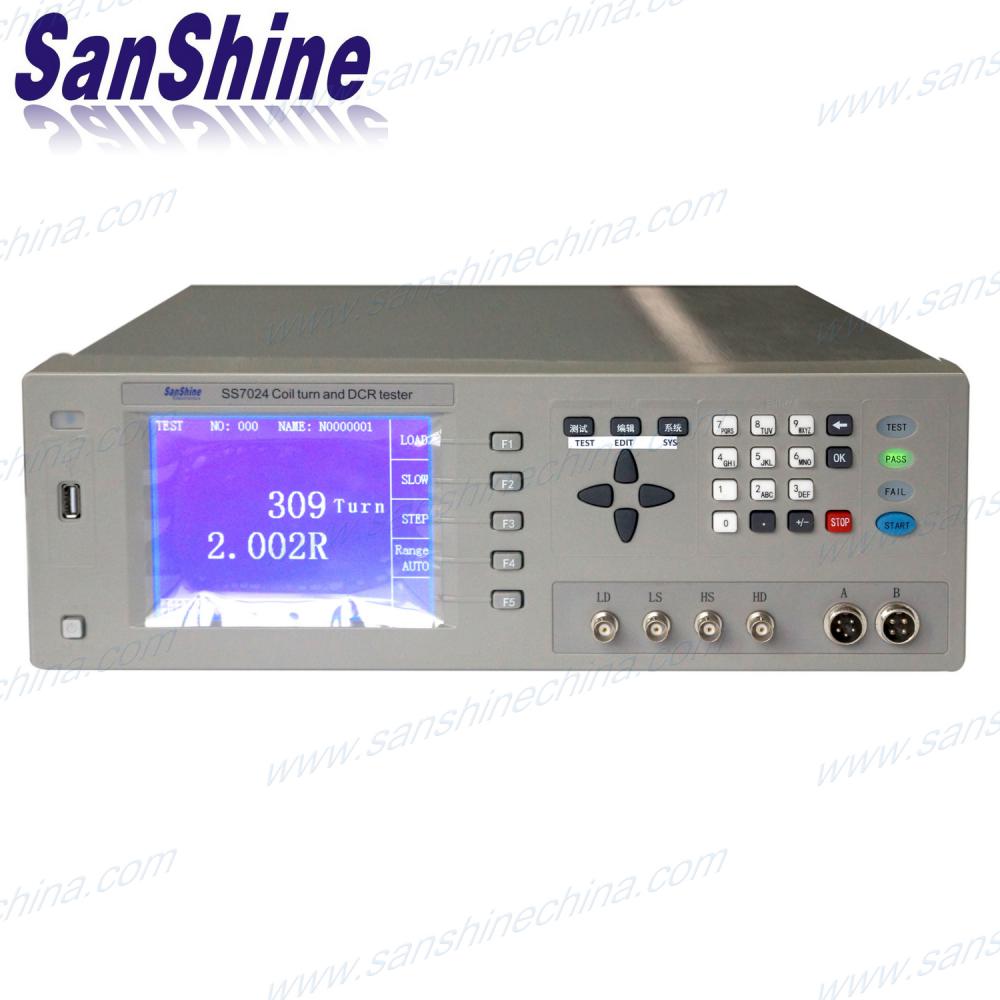

SS7024: adds DC low-resistance measurement (range: 0.2-200 kΩ, accuracy: 0.2%, display range: 0.00001 Ω-200 kΩ).

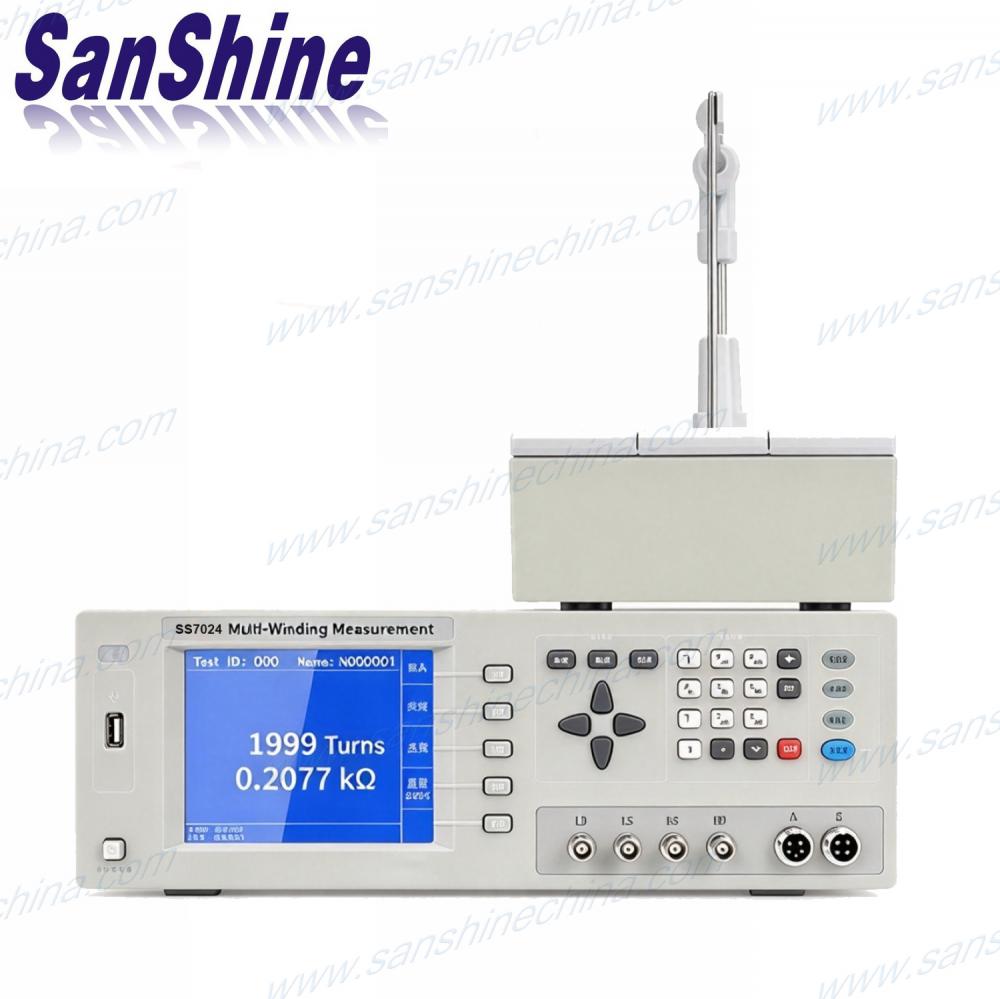

SS7025: adds multi-winding measurement (up to 16 windings, fast speed; in fast mode, the average per winding is approximately less than 0.2 s)

Model	SS7022~SS7025
Sensor Height	H-250mm	H-350mm	H-450mm	H-550mm
Sensor Diameter	Diameter ≤10mm, height ≤150mm (refer to the SS7021 chart for detailed parameters)
Coil Inner Diameter	Φ>10mm
Coil Outer Diameter	Φ>120mm
Coil Height	H <220mm	H<320mm	H<420mm	H<520mm
Test Sensor Specification	10mm
Coil Measurement Range	0~60000 turns
Turns Measurement Accuracy	0~300 turns ±0 turns, 300~500 turns ±1 turn, 500~20000 turns ±0.2%, 20000~60000 turns ±0.5%
Measurement Speed	Fast: 0.35 s/measurement, Slow: 0.7 s/measurement
Communication Interface	RS232
Sorting Interface	HANDLER (level output), PLC-OUT (switching output), LED (indicator)
Start Trigger	Internal, button, interface, foot control, RS232 command
Power Supply	AC220V±10%, 50Hz±2Hz (customizable to AC110V, 60Hz)
Operating Environment	Ambient temperature: +5℃~+35℃, relative humidity: below 85%
Dimensions	Main unit: 400 (W) × 132 (H) × 245 (L) (mm)
Weight	Approx. 7 kg
