Automatic UU EI EE inductor filter winding machine

The fully automatic twelve spindles UU EI EE inductor filter winding machine (SS6012/SS8012) is used for winding the small power transformers, signal transformers, inductors, filter choke coil, relays, current contactor, valve coils, solenoid coils, telecom transformers. It can complete the coils without any one operator in fully automatically. It is named inverter filter coil winding machine also.
  • Item NO.:

    SS6012/SS8012
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Blue
contact now
Description

Product name : Fully automatic twelve spindles UU EI EE inductor filter winding machine (SS6012/SS8012)



solenoid valve winding machinery

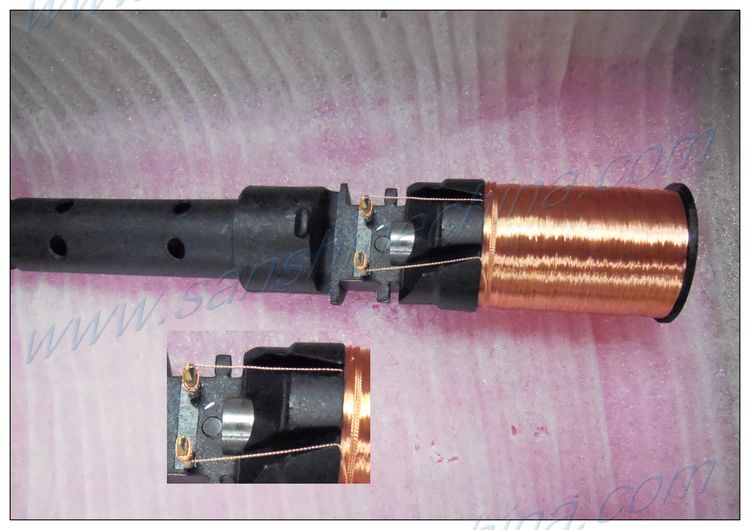

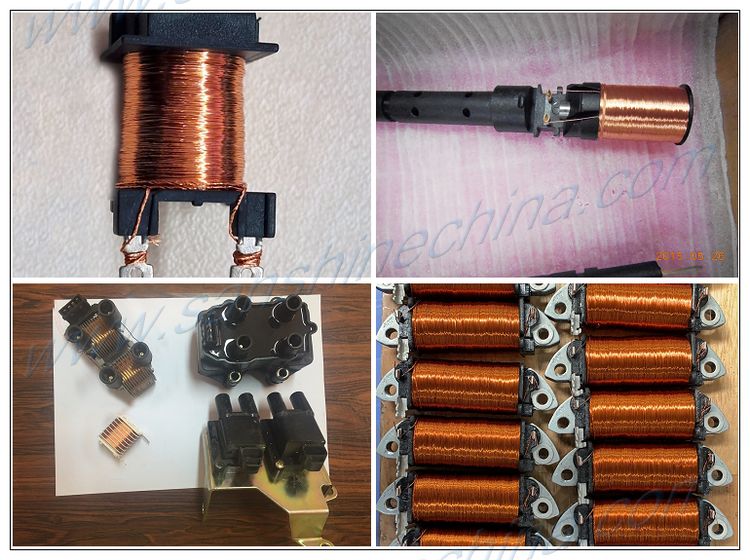

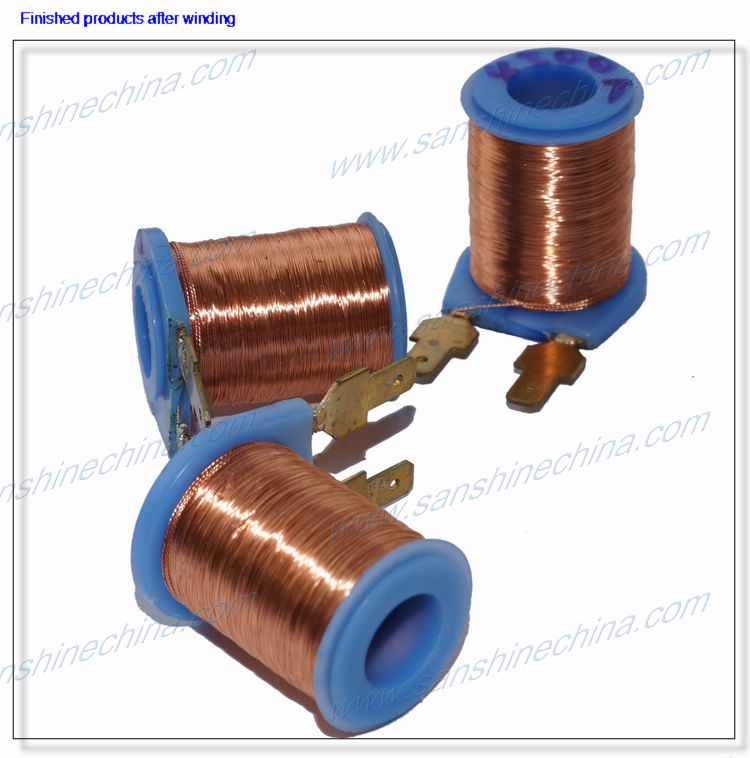

Winging products show

EE inductor coil winder


Description :

The fully automatic twelve spindles UU EI EE inductor filter winding machine (SS6012/SS8012) is used for winding the small power transformers, filter inductance coils, signal transformers, inductors, filter choke coil, relays, current contactors, valve coils, solenoid coils, telecom transformers. This fully automatic twelve spindles UU EI EE inductor filter winding machine (SS6012/SS8012) is named filter inductor coil winding machine also. This fully automatic twelve spindles linear coil winding machine can complete the coils without any one operator in fully automatically. Load the bobbins and down load the finished coils in automatically. Process the winding, twisting, tape wrapping, wire cutting and wire stripping actions fully automatically quickly with different function optional system. Make your production quality to top grade and raise efficiency.

We also provide high-quality fully automatic 24 spindles linear coil winding machine, etc.


Fixtures :

1),Specially wire cutting system for thick wire and TEX wire.

2),The wire clips can hold wire still automatically when air pressure cut off.

3),Can cut off air pressure automatically when electric power off.

4),Can wind multiple piece wires in parallelly at same time on same bobbin.

5),Calibrate the original position of X / Y / Z spindles automatically.

6),Automatically loading and unloading function.

7),Wire broken alarm function.

8),Wrapping tape function.

9),Wire twisting function.

10),Wire cutter cutting function.

11),Wire stripping function.

12),High precise servo motors with high precise controlling system and movement system.

13),Multi-angles to wind wire terminal on the pins.

14),Winding jigs and loading /unloading fixture can be changeable easily.

15),Chinsee / English operation interface switchable with touching screen.

16),Potable adjustment keyboard.

Specification :


Model SS1206 SS8008 SS1208 SS7010 SS9910 SS6012 SS8012 SS4516 SS6016 SS3824 SS3532
Spindle numbers 6 8 8 10 10 12 12 16 16 24 32
Center distance between spindles 120mm 80mm 120mm 70mm 99mm 60mm 80mm 45mm 60mm 38mm 35mm

Max.Dia.

Or width

of bobbin

55mm 50mm 55mm 45mm 50mm 42mm 45mm 30mm 42mm 20mm 16mm
Wire diameter  (mm) 0.02~0.8 0.02~0.6 0.03~0.6 0.02~0.5 0.03~0.5 0.02~0.45 0.02~0.5 0.02~0.35 0.02~0.35 0.02~0.35 0.02~0.3
Control way Precise CNC multi-axis AC servo motor transmission system, position controlling precisely.

Spindles rotating speed

(RPM)

Max.

9000

Max.

9000

Max.

7000

Max.

9000

Max.

8000

Max.

12000

Max.

8000

Max.

12000

Max.

10000

Max.

12000

Max.

15000

Winding nozzle

angle

0° ,  90° ,  45°(optional)
Spindles rotating angle 360° +/- 0.1
Traverse range of winding nozzle (X Axis):0-100mm (Y Axis):0-100mm (Z Axis):0-60mm

Accuracy

of

winding nozzle movement

0.01mm 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm
X/Y/Z Axis servo motor power (KW) (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4 (X):0.4 (Y):0.4 (Z):0.4

Wire terminal clips

device moving servo motor power

400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W
Winding spindle servo motor power 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW 2.0KW 2.0KW
Operation interface Easily and simply teaching model operation system(Chinese / English operation interface switchable with touching screen)
Program storage method Direct storage + USB
Power supply Single phase AC220V 50/60 Hz or AC110V 50/60 Hz by request
Power 3KW 3KW 3.5KW 3KW 3.5KW 3KW 3.5KW 3KW 3.5KW 3.5KW 3.5KW

Air

source pressure

5-6Kgf/cm2

Servo

motor

Panasonic or or FUJI or YASKAWA
Cylinder SMC / CKD /Airtac / Chelic Cylinder

Machine

net

weight

650Kg 650Kg 750Kg 650Kg 750Kg 650Kg 750Kg 650Kg 750Kg 900Kg 900Kg

Machine size(mm)

(with tensioners shelf)(W*L*H)

1500*

1200*

1820

1500*

1200*

1820

1700*

1500*

1650

1500*

1200*

1820

1700*

1500*

1650

1500*

1200*

1820

1700*

1500*

1650

1500*

1200*

1820

1700*

1500*

1650

1200*

1500*

1600

1700*

1500*

1650

Bobbing loading and finished coil

unloading way

Operator place bobbins on the Auto. Loading and unloading fixture first, then machine insert the bobbins onto the winding spindles automatically, will unload the finished coils automatically. ( fully automatic loading and unloading bobbins and coils function by request to customize, fully automatically loading and unloading function which no need operator to place the bobbins on the fixture. These winding machines can be integrated with our automatic solder tinning machines and automatic testing machines and core assembly machines so that to be one fully automatic finished coils production line without operator. we provide the fully automatic finished coils production line by user request.)

Tape wrapping function optional optional optional optional optional optional optional optional optional NO NO

Wire

twisting function

optional optional optional optional optional optional optional optional optional optional optional

Thick wire cutter

cutting function

optional optional optional optional optional optional optional optional optional optional optional
Wire stripping function optional optional optional optional optional optional optional optional optional optional optional
Wire broken alarm function optional optional optional optional optional optional optional optional optional optional optional
