Digital precise DC resistance Micro Ohm meter

The Digital precise DC resistance Micro Ohm meter (DCSS502BC) is designed to measure copper resistance of transformers, wires, cables, other conductors and other coil products, etc.. This Micro Ohm meter (DCSS502BC) is widely used for testing the DC low resistance.
  • Item NO.:

    DCSS502BC
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Light blue
contact now
Description

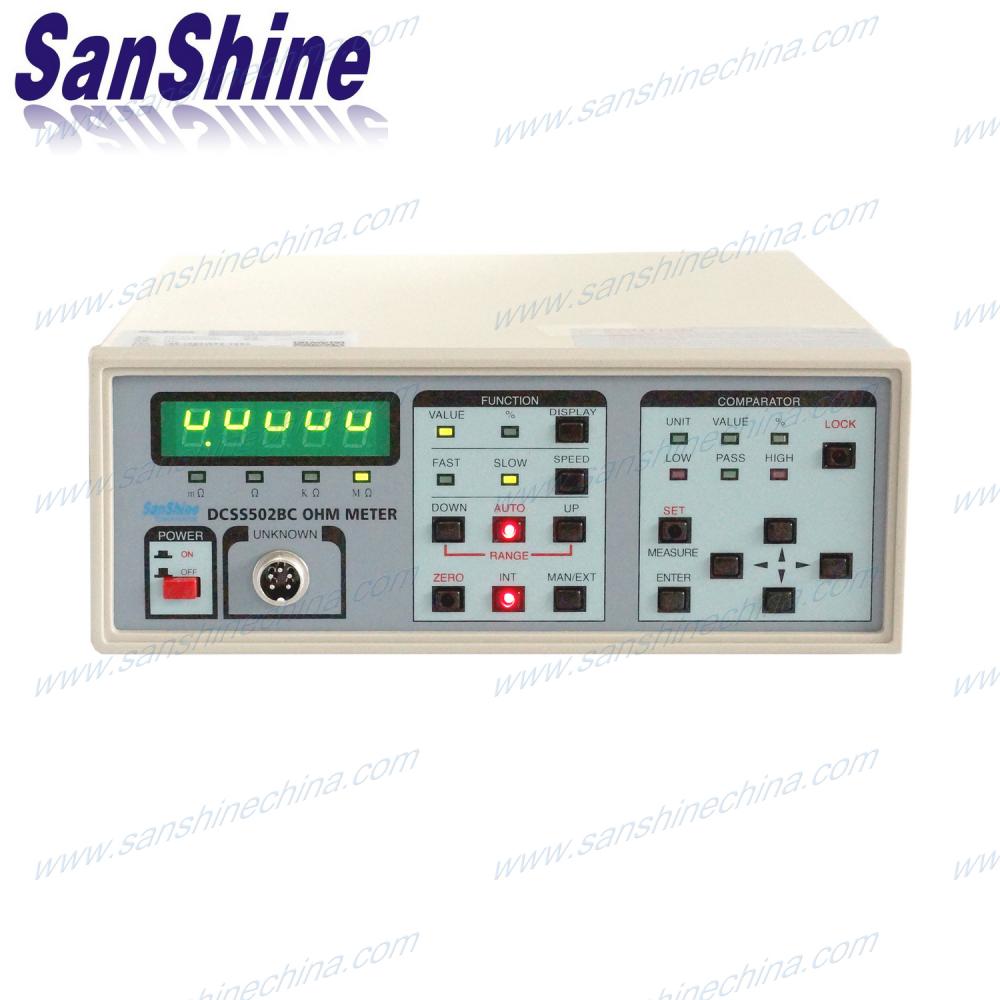

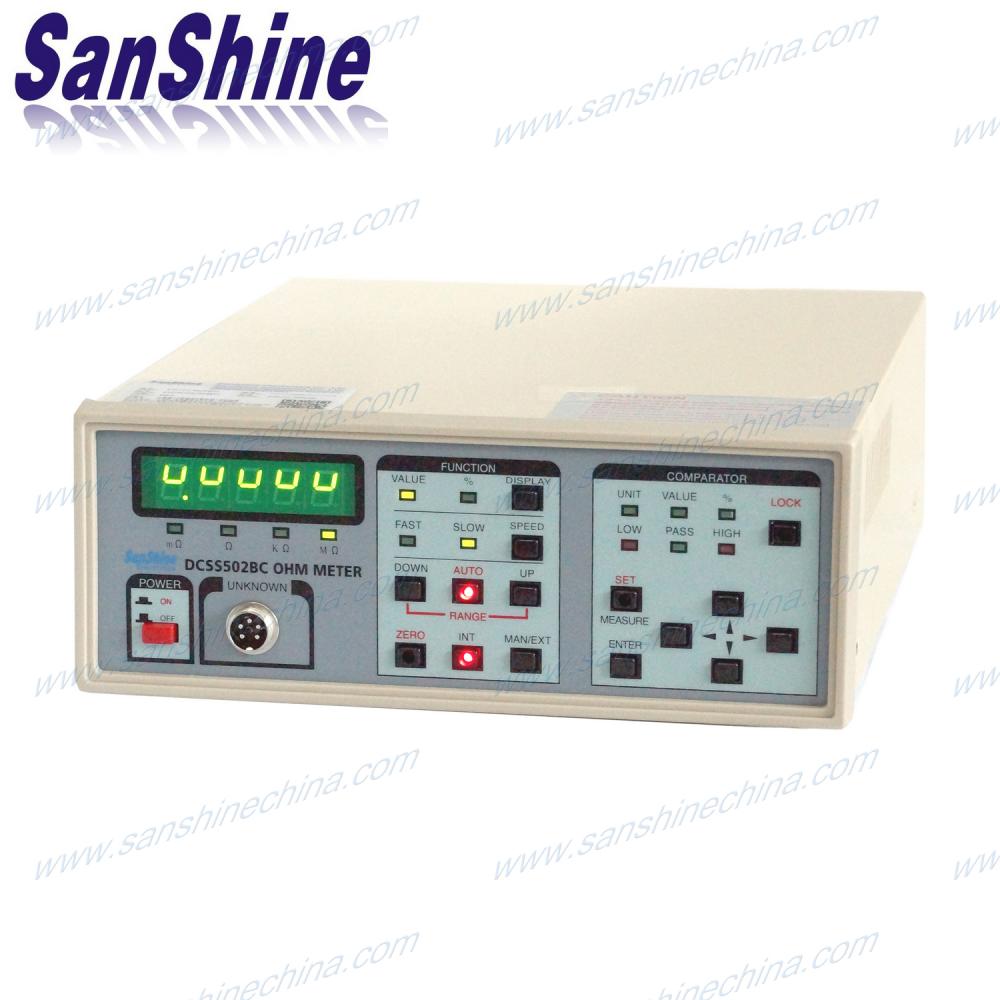

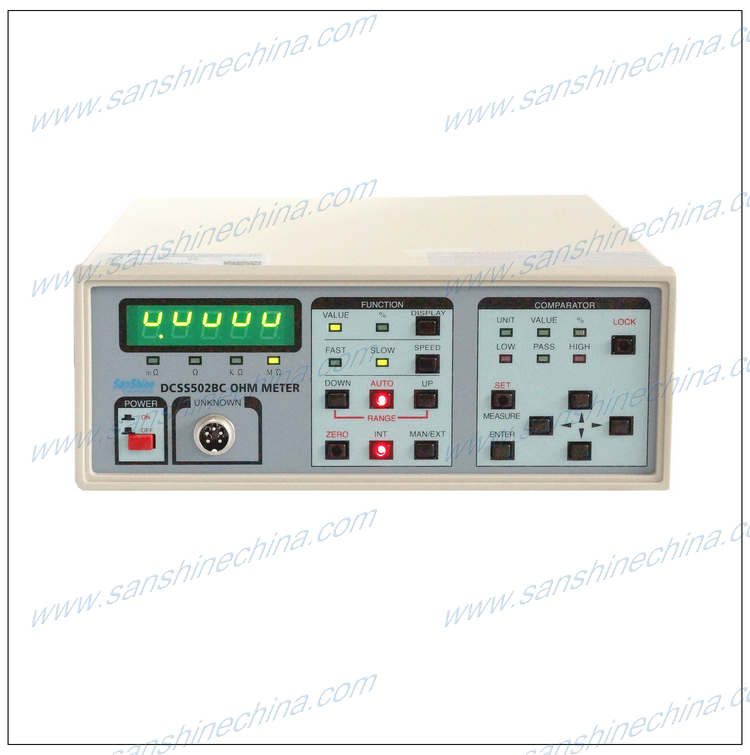

Product name : Digital precise DC resistance Micro Ohm meter (DCSS502BC)

Micro resistance meter

Micro resistance tester

Description :

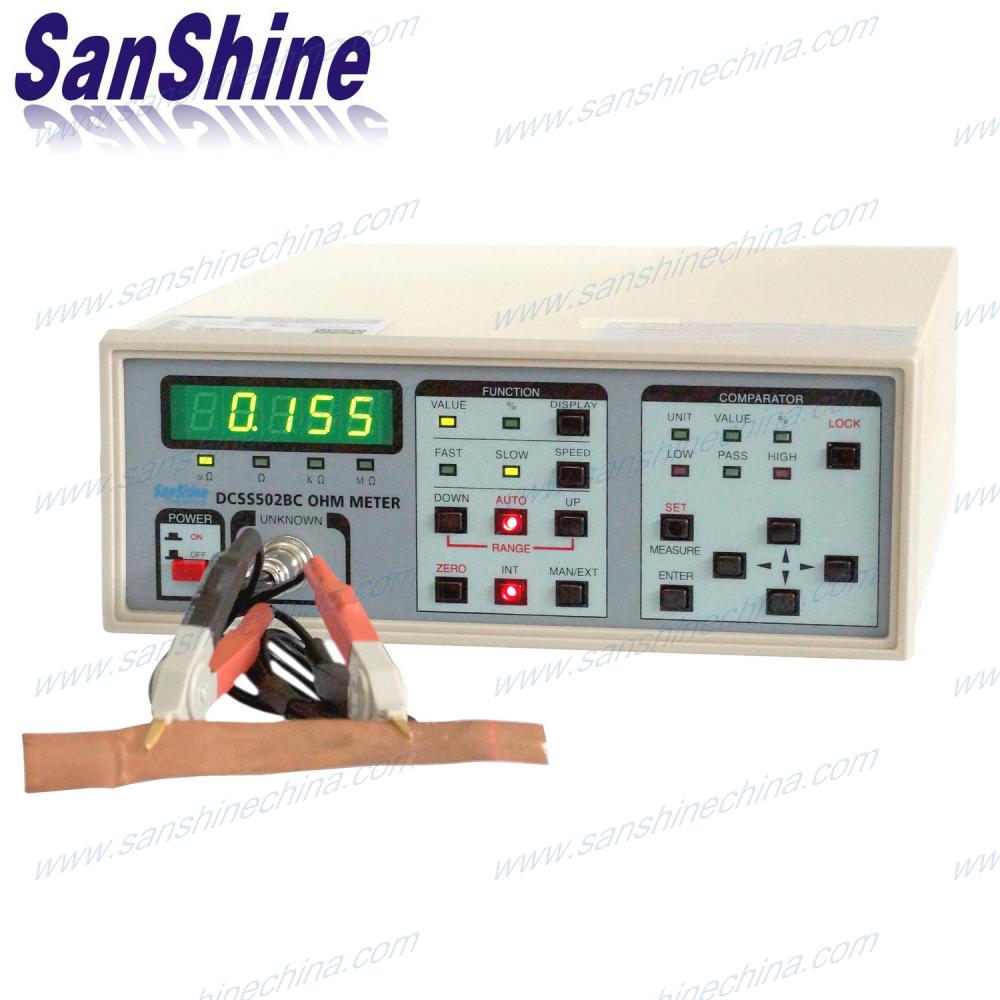

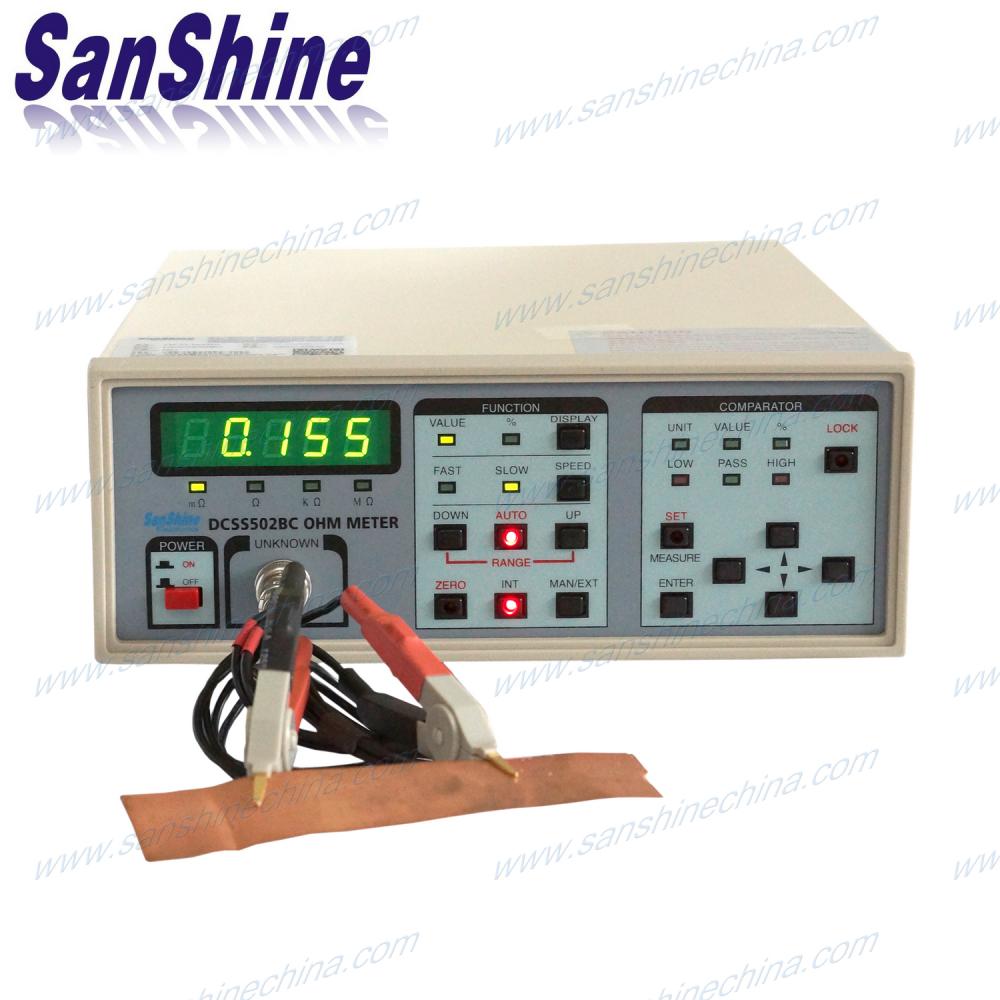

The Digital precise DC resistance Micro Ohm meter (DCSS502BC) is designed to measure copper resistance of transformers, wires, cables, other conductors and other coil products, etc.. It is widely used for testing the DC low resistance. Like as : switches, heater wires, transformers windings, relays, motor windings, electric films and PC circuit boards, wires, cable, etc.. The Digital precise DC resistance Micro Ohm meter (DCSS502BC) has a reliable Good and NG automatic judgment function. This digital precise DC resistance Micro Ohm meter (DCSS502BC) can substitute Chroma ohm meter 502BC and Zentech ohm meter 502BC fully and easily. It is a premier resistance meter for the use in RD department, production line and QC department.

Key features :

1. Basic Measurement Accuracy: ± 0.05%

2. Single-function Keys, clear LED Display, easy to operate.

3. GO/NG judgment .

Order Items :

DCSS502BC resistance tester

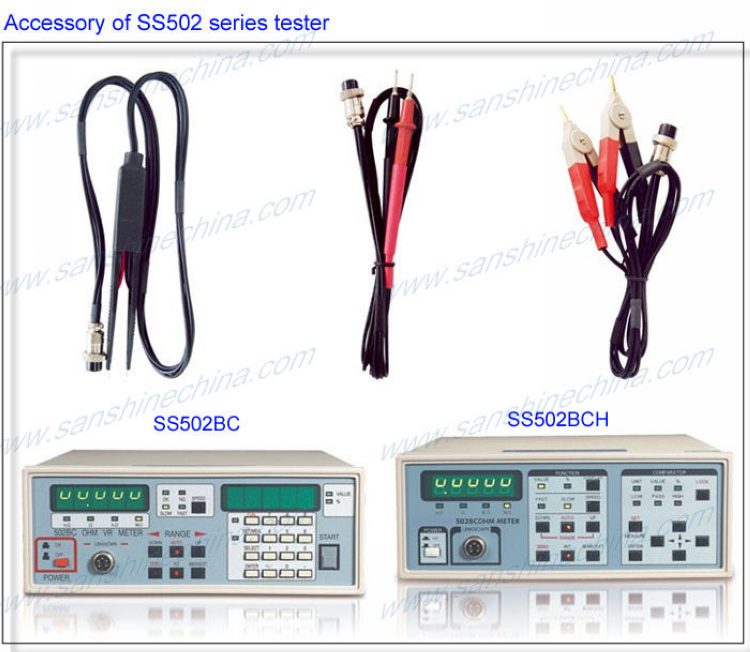

Four-terminal Test Clamp (within tester)

SMD Test Cable (optional)

Specification :

Model

DCSS502BC

Measure range

10uΩ~199.99mΩ

±0.1%±2counts

200mΩ~1.9999KΩ

±0.05%±1counts

10uΩ~1.9999MΩ

±0.1%±2counts

10uΩ~1.9999MΩ

±0.5%±2counts

Measure Speed

Fast

11Measurement /S

Slow

7Meas./S

Trigger

internal, external, manual

Display

4.5pcs digitals

Revising function

zero

Automatic judgement

pass or fail

Common specification

Environment

temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH

Power consuming

Max.30W

Power

90~125V or 190~250V,48HZ~62HZ

Weight

4Kg

Meas. (W×H×L )

270×105×350mm
