SS1001 Automatic super big toroidal winding machine

The porogramable automatic extra heavy toroidal coil winding machine (SS1001) is a very large scale winding machine. it adopts the large winding head with the large and strong winding shuttle. The winding machine is used for winding the large scale toroid coils. This winding machine(SS1001) can wind the outside diameter 800mm toroid coils with wire1

The automatic extra toroid double heads winding taping machine (SS-1000WT) adopts one big winding head and one tape big wrapping head to wind the large big toroidal coils with the thick enamel wire and wrap the insulation tape at same time. so it be also named doubel coil winding taping head machine.

The customized semiautomatic toroidal coil winding machine (SS200) is used for winding the thick wire on the toroid core. it adopts nylon hook to wind the enamel wire. it also be called three phase EMC filter winding machine, toroid EMI filter winding machine.

The programmable slider type automatic toroid coil winding machine (SS900S4) is used for winding the fine wire coils on the small toroidal core. like as small toroid transformers, toroid inductors and so on. This winding machine is named toroid current sensing transformer winding machine also.

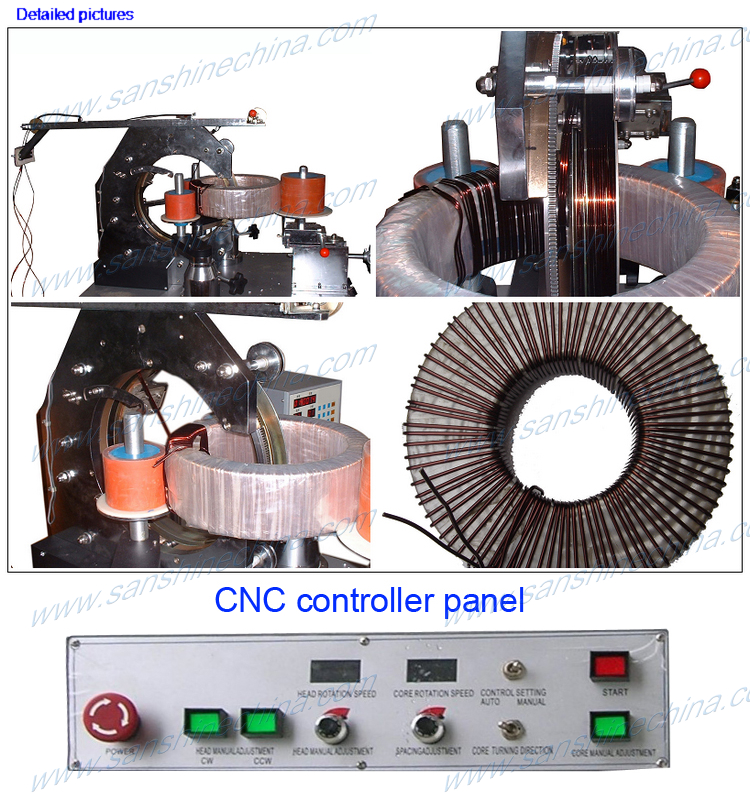

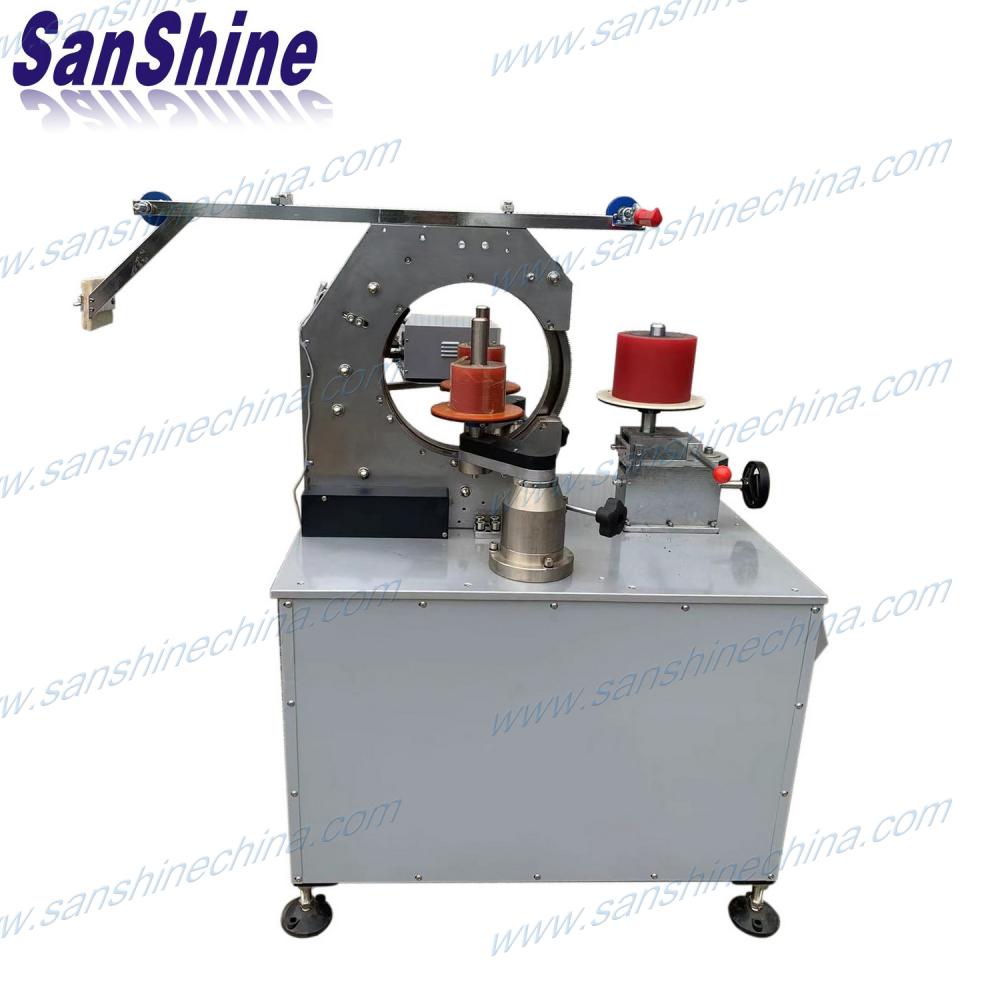

The gear type automatic big toroid coil winding machine (SS300 series) are used for winding the thick enamel wires on the big toroid core. Wind the big toroidal transformers, big toroidal voltage regulator coils, big toroid factor corrector coils. They are also called heavy wire toroidal coil winding machine.

The slider type automatic big toroid coil winding machine (SS300S series) is used for winding the fine wire big toroid coils. Like as: big toroid transformers, big toroidal inductors, big toroid current transformers, etc. . They also be named medium voltage instrument transformers winding machine, big toroid current sensor coil winding machine.

The programmable belt type automatic toroid coil winding machine (SS900B6, 6 inch winding head) is used for winding the thick enamelled wire on the toroid core. Also be named toroid common mode power line winding machine.

The programable automatic super big toroidal coil winding machine (SS1000) is a gear type toroid coil winding machine. this winding machine adopts the supper big winding head with strong winding shuttle. this toroid winding machine is used for winding the supper big toroid coils with the heavy wire. its winding capacity is finished coil Max. outsid1
