Automatic high torsion thick wire coil winding machine

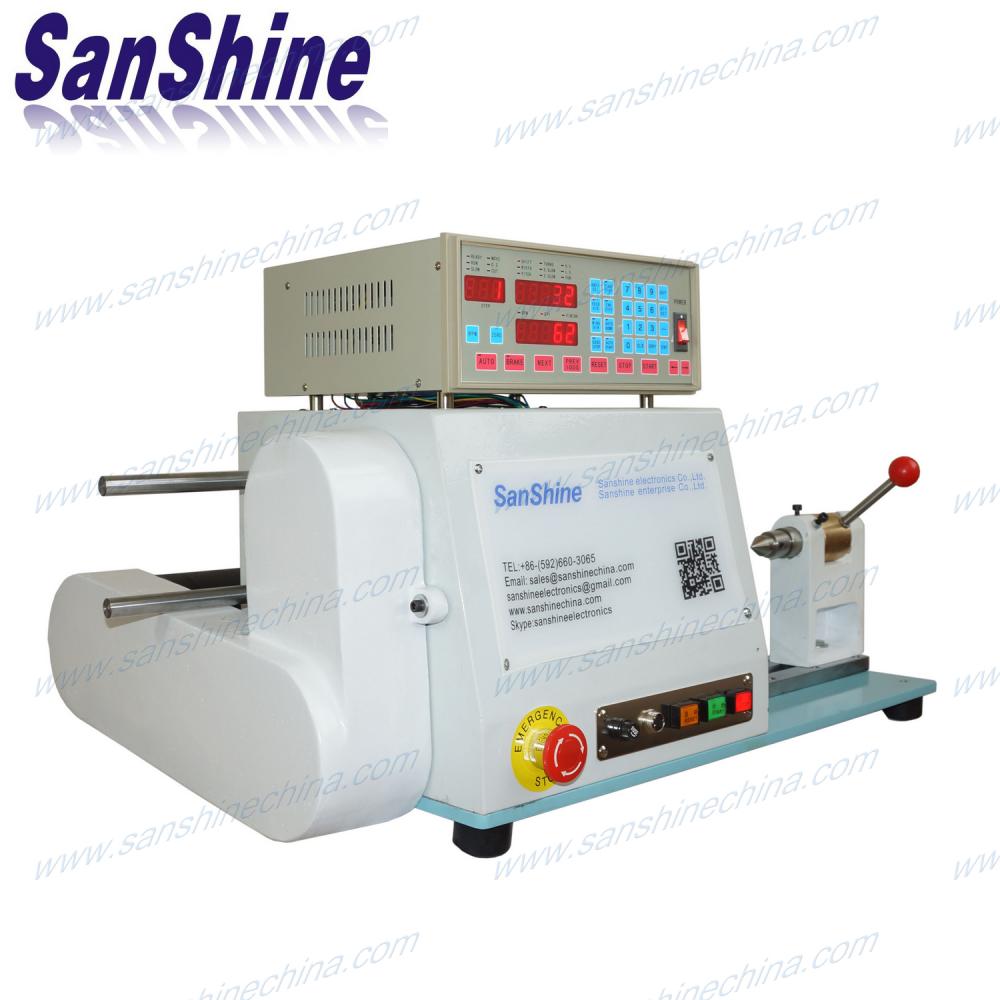

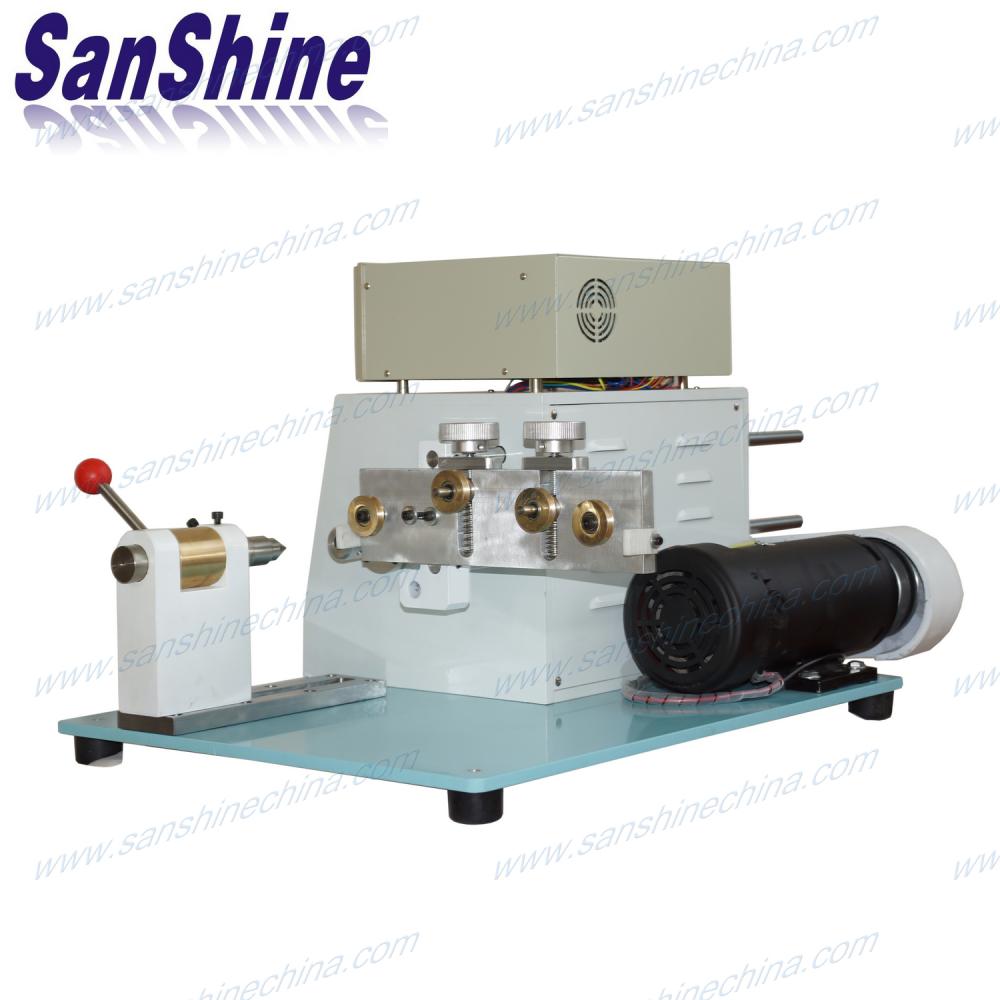

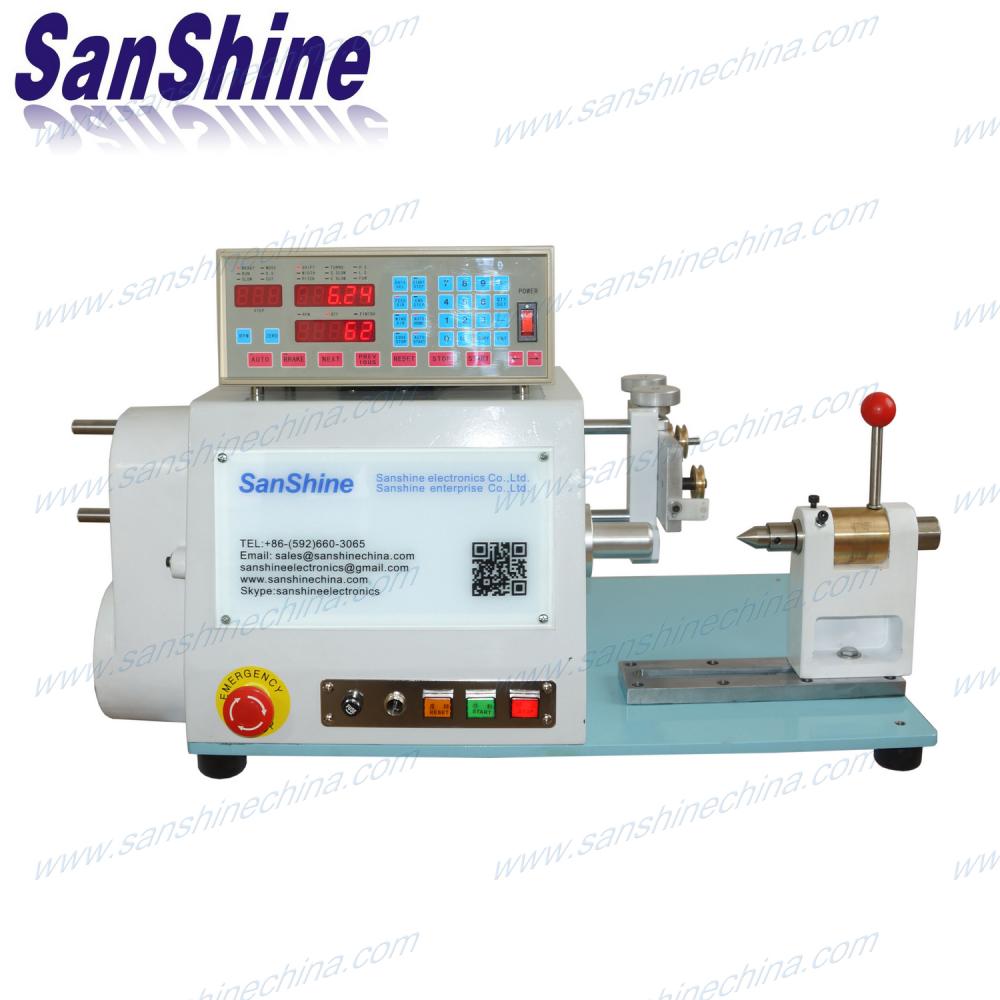

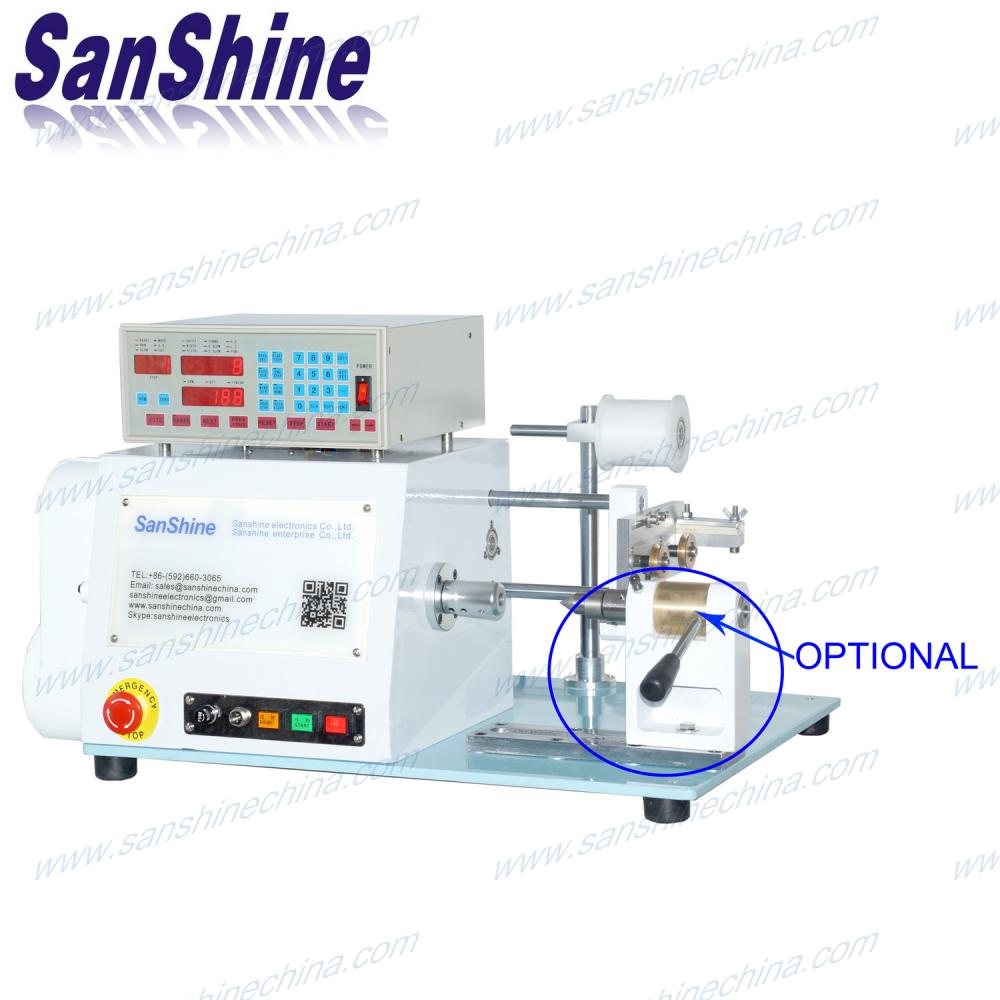

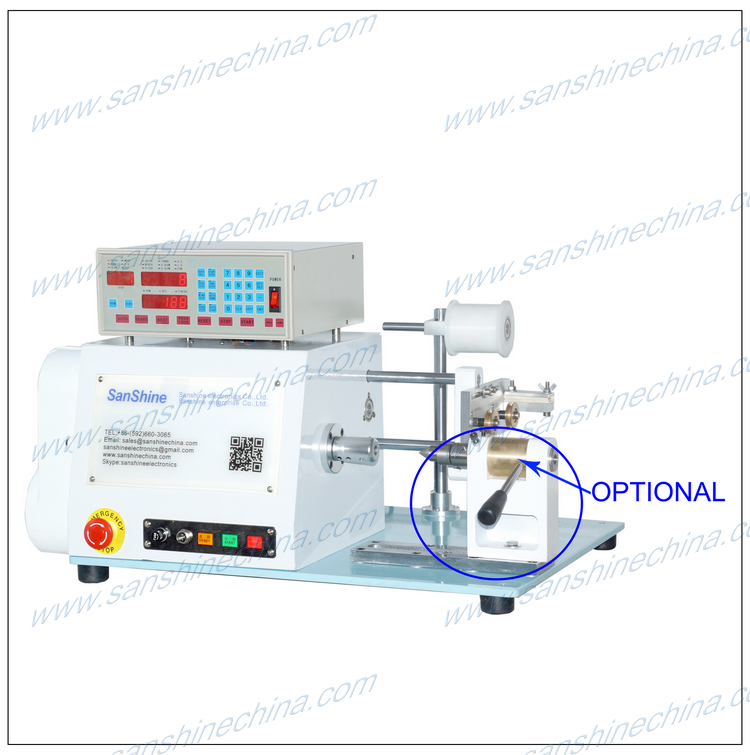

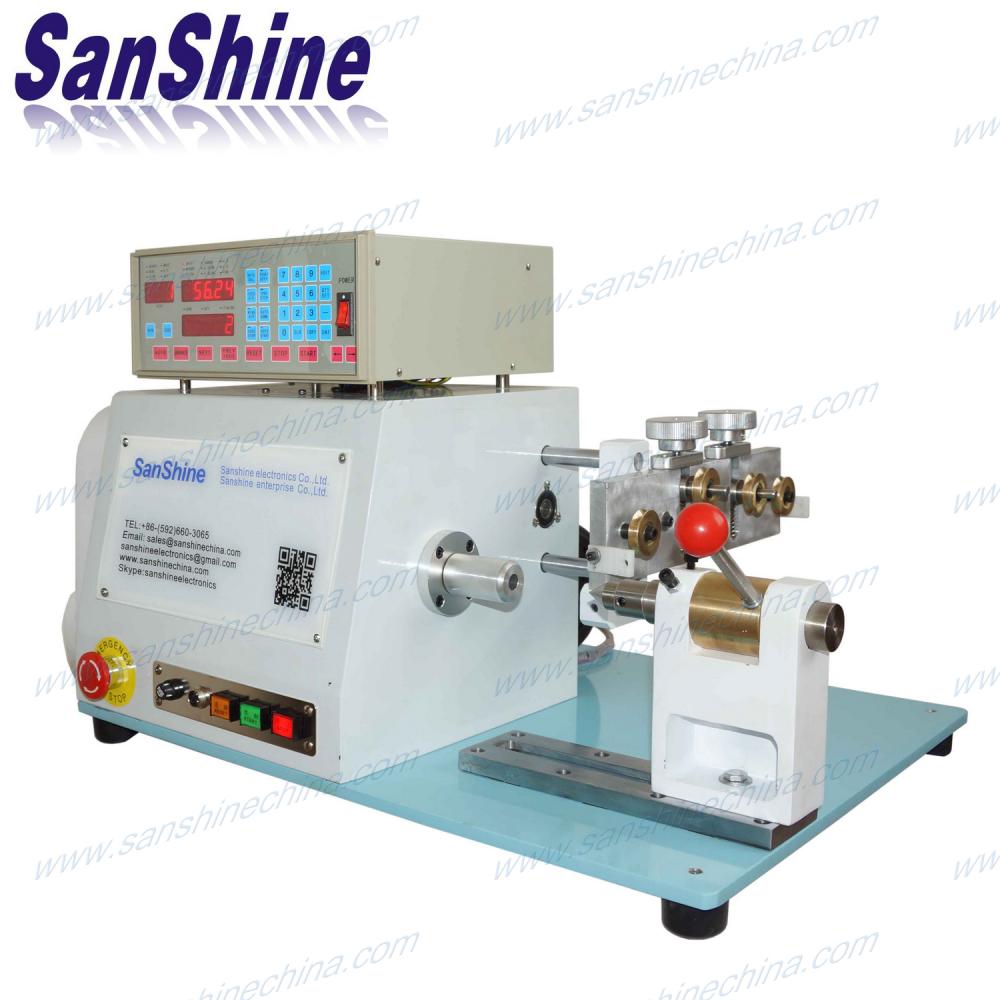

The automatic high torsion thick wire coil winding machine (SS851) is a CNC programmable winding machine with the high torsion DC winding motor. It's the best choice for secondary winding of transformer, reactive coil, electric power transformer and big coil of thick wire. This winder be named CNC start transformer winding machine also.
  • Item NO.:

    SS851
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White and blue
contact now
Description

Product name : Automatic high torsion thick wire coil winding machine (SS851)




heavy wire UPS coil winding machine

digital flate wire winding machine

digital reactor winding machine

coil reel winding machinery

table top thick wire winding machine

big bobbin coil winding machine

Description :

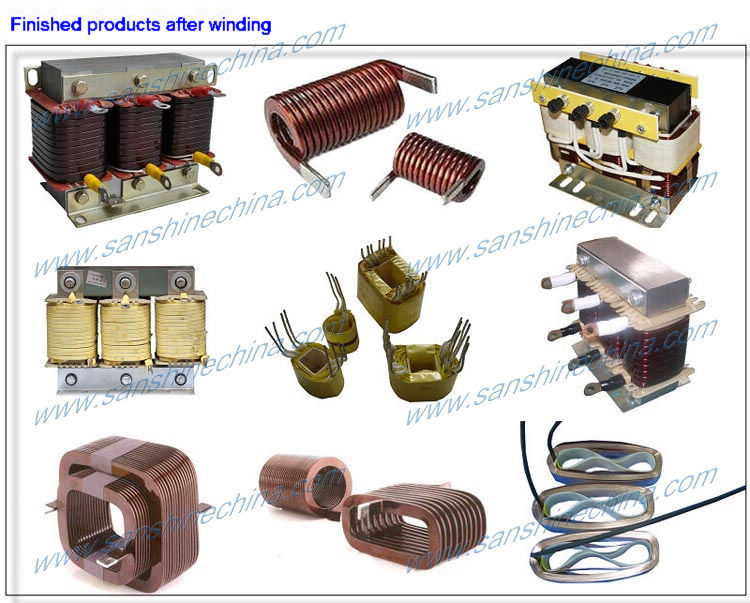

The automatic high torsion thick wire coil winding machine (SS851) is a digital type programmable coil winding machine with high torsion DC winding motor. The Maximum wire diameter of this winder can reach 5.0mm for small coil if the finished coil outside diameter less than 55mm. This machine is the best choice for secondary winding, reactive coil, electric power transformer, flat wire coil, motor winding, generator winding, copper foil coil and for big coil of thick wire. It be named air core reactor winding machine and high torsion autotransformer winding machine also. This winder can be customized according to coil size by requested.

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire passing through ceramic rollers prevent enamel from high temperature.

5. Multiple spindles winding synchronal for highest efficiency.

6. Foot-switch connection for better efficiency.

7. Winding parameters and options can be set.

Specification :

Model SS851 SS852 SS851A SS851AL
Spindle Number 1 2 1 1
Wire diameter 0.05~5.0mm 0.05~1.6mm 0.05~5.0mm 0.05~3.8mm
Spread pitch 0.001~9.999mm
Spread width(traverse) Max. 230mm Max. 230mm Standard 360mm, Customize Max.700mm Max. 400mm
Finished coil diameter Max. 200mm Max. 110mm Max.200mm Max. 500mm
Winding motor 500W DC Motor
Spread motor 4-Phase Stepper Motor
Max. speed 2500 RPM
Memory capacity 999 Steps
Power source AC220V /110V + 10%, 50/60 Hz
Dimension(cm) 70x52x60 70x52x60 120x52x60 120x94x66
Net weight 42Kgs 44Kgs 55Kgs 110Kgs
